High-Performance Flexible Motor Power Supply Cable for Frequency Converters in the Mining Industry – Durable, UV- and Oil-Resistant Rubber Cable (NTMCGCW11Y)

The mining industry demands electrical infrastructure capable of withstanding extreme conditions while maintaining operational reliability. Motor-driven equipment in underground mines, open-cast operations, and quarries requires power cables that can endure harsh environmental factors including mechanical stress, temperature fluctuations, chemical exposure, and constant movement. The NTMCGCW11Y represents a specialized solution engineered specifically for these demanding applications.

Introduction

1.1. Overview of the NTMCGCW11Y Cable Model

The NTMCGCW11Y is a high-performance flexible motor power supply cable designed primarily for frequency converter mining cable applications. This specialized rubber cable incorporates advanced materials and construction techniques to deliver exceptional performance in the most challenging industrial environments. Built to comply with stringent international standards, including DIN VDE 0250-812, this cable serves as the critical link between frequency converters and motor-driven equipment in mining operations.

The cable's designation reflects its sophisticated engineering: a multi-core configuration with integrated screening, heavy-duty rubber sheathing, and enhanced protection against environmental hazards. Each component has been carefully selected to ensure optimal performance in applications where standard cables would fail prematurely.

1.2. Key Features and Benefits

The NTMCGCW11Y rubber cable delivers several critical advantages for mining applications. Its robust construction provides exceptional mechanical protection against crushing, abrasion, and impact damage common in mining environments. The advanced rubber compound formulation offers superior flexibility while maintaining structural integrity under extreme temperature variations.

Key performance characteristics include enhanced oil resistance meeting EN 60811-404 specifications, comprehensive UV protection for outdoor installations, and flame-retardant properties complying with DIN EN/IEC 60332-1-2 standards. The cable's screening system effectively minimizes electromagnetic interference, ensuring clean power delivery to sensitive frequency converter systems.

Technical Specifications

2.1. Cable Type and Basic Construction

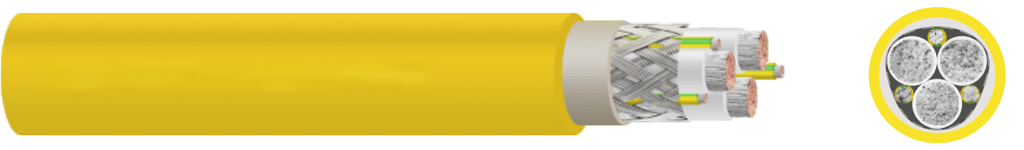

The NTMCGCW11Y features a sophisticated multi-layer construction optimized for mining applications. The design incorporates main power cores alongside dedicated protective earthing conductors, all enclosed within a comprehensive screening system. The cable's basic configuration supports various core arrangements, with common specifications including 3x16+3x2.5 mm² and 3x25+3x4 mm² configurations.

The outer sheath utilizes a specialized heavy-duty rubber compound (type 5GM5) conforming to DIN VDE 0207-21 specifications. This distinctive yellow outer jacket provides immediate visual identification while delivering exceptional protection against mechanical damage, chemical exposure, and environmental degradation.

2.2. Conductor and Screening Details

Each conductor within the NTMCGCW11Y consists of tinned copper wires, finely stranded according to IEC 60228 class 5 specifications. This construction ensures maximum flexibility while maintaining excellent electrical conductivity and corrosion resistance. The tinning process provides additional protection against oxidation, particularly important in high-humidity mining environments.

The cable incorporates a comprehensive screening system featuring tinned copper wire braid construction. This screening effectively suppresses electromagnetic interference while providing additional mechanical protection. The ground conductor utilizes identical construction to the main cores, with distinctive green-yellow insulation for easy identification during installation and maintenance.

2.3. Voltage Ratings and Temperature Performance

The NTMCGCW11Y rubber cable operates at rated voltages of 0.6/1 kV (U0/U), with maximum permissible operating voltages reaching 0.9 kV in AC systems and 0.9/1.8 kV in DC applications. The cable successfully withstands AC test voltages of 3 kV on main cores, demonstrating excellent insulation integrity.

Temperature performance represents a critical specification for mining applications. The cable operates reliably across ambient temperatures from -40°C to +80°C for fixed installations, with slightly reduced range (-30°C to +80°C) for applications involving free movement. Maximum permissible conductor temperature reaches 90°C during normal operation, with short-circuit capability extending to 200°C at the conductor level.

2.4. Mechanical and Flexibility Characteristics

Mechanical performance distinguishes the NTMCGCW11Y from standard industrial cables. Maximum tensile load capacity reaches 15 N/mm² on conductors, providing substantial protection against mechanical stress during installation and operation. The cable's bending radius specifications accommodate both fixed installations (4x outer diameter) and flexible applications (5x outer diameter).

The advanced rubber compound formulation maintains flexibility across the entire operating temperature range, ensuring reliable performance in applications involving continuous movement. This characteristic proves essential for mobile mining equipment, conveyor systems, and material handling applications where cables experience regular flexing cycles.

Environmental and Safety Performance

3.1. Flame Retardance and Fire Behavior

Fire safety represents a paramount concern in underground mining operations. The NTMCGCW11Y rubber cable incorporates flame-retardant materials meeting DIN EN/IEC 60332-1-2 specifications. This compliance ensures the cable will not propagate flame in the event of external ignition, contributing to overall mine safety protocols.

The cable's insulation system utilizes EPR compound type 3GI3 according to DIN VDE 0207-20, providing excellent thermal stability and flame resistance. The inner sheath employs synthetic rubber compound type GM1b, further enhancing fire performance while filling interstices to prevent moisture ingress.

3.2. UV, Oil, and Weather Resistance

Mining operations frequently expose cables to harsh environmental conditions requiring comprehensive protection. The UV- and oil-resistant flexible cable for excavators designation reflects the NTMCGCW11Y's superior environmental performance. Oil resistance meets DIN EN/IEC 60811-404 specifications, ensuring reliable operation in hydraulic fluid environments common in mining machinery.

Weather resistance enables unrestricted indoor and outdoor use, with specific resistance to ozone, ultraviolet radiation, and moisture ingress. This comprehensive environmental protection eliminates the need for additional protective measures in most mining applications, reducing installation complexity and long-term maintenance requirements.

3.3. Short-Circuit and High-Temperature Endurance

The cable's design incorporates substantial thermal mass and advanced insulation materials to handle fault conditions safely. Short-circuit temperature capability extends to 200°C at conductor level, providing adequate protection during electrical fault conditions. The EPR insulation system maintains integrity at elevated temperatures, ensuring safe fault clearance without cable failure.

High-temperature resistant rubber cable for mining frequency converters applications benefit from the cable's thermal stability across extended operating periods. The 90°C continuous conductor temperature rating accommodates high-load conditions while maintaining safety margins for equipment protection.

Applications and Use Cases

4.1. Mining Industry Frequency Converter Connections

Primary applications focus on power delivery between frequency converters and motor-driven equipment in mining operations. The cable's screening system effectively manages electromagnetic interference generated by variable frequency drives, ensuring clean power delivery and minimizing electrical noise in sensitive control circuits.

Underground mining applications particularly benefit from the cable's robust construction and comprehensive environmental protection. The frequency converter mining cable specification ensures reliable operation in high-humidity, chemically aggressive environments typical of underground operations.

4.2. Material Handling Equipment and Excavators

Mobile mining equipment represents another critical application area for the NTMCGCW11Y. Conveyor systems, excavators, and material handling equipment require power cables capable of withstanding continuous flexing while maintaining electrical integrity. The cable's enhanced flexibility and mechanical protection make it ideal for these demanding applications.

Multi-core screened power cable for material handling equipment applications benefit from the integrated screening system and robust conductor construction. The cable effectively handles the power requirements of large motor drives while providing electromagnetic compatibility in complex electrical environments.

4.3. Continuous Slight-Movement Installations

Applications involving continuous slight movement, such as rotating equipment and oscillating mechanisms, require specialized cable designs. The NTMCGCW11Y's construction accommodates these requirements through optimized conductor stranding, advanced rubber compounds, and reinforced mechanical construction.

The cable's ability to handle repetitive flexing cycles without degradation ensures long-term reliability in dynamic applications. This capability reduces maintenance requirements and extends equipment operational life in critical mining operations.

Certification and Compliance

5.1. EN 50575 (CPR) Classification and DoP

The NTMCGCW11Y maintains full compliance with European Construction Products Regulation (CPR) 305/2011, ensuring suitability for permanent installation in construction works. This certification demonstrates the cable's fire performance characteristics and overall safety compliance for commercial and industrial applications.

The Declaration of Performance (DoP) provides comprehensive documentation of the cable's tested characteristics and compliance with harmonized European standards. This documentation supports regulatory approval processes and ensures conformity with local electrical codes and standards.

5.2. DIN VDE 0250-812 Standards

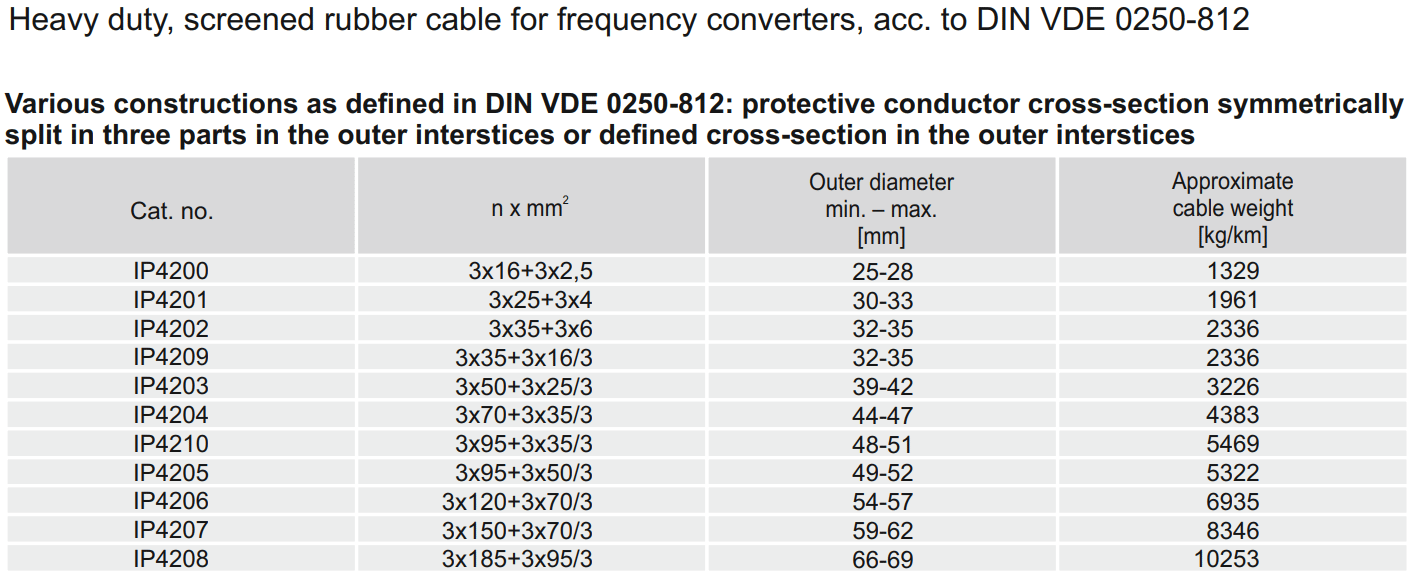

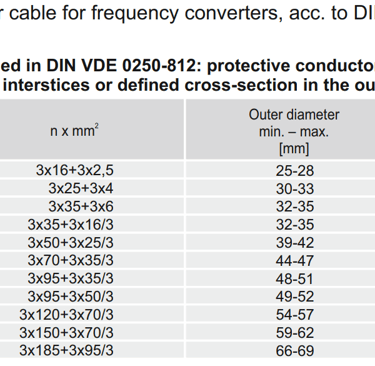

Compliance with DIN VDE 0250-812 specifically addresses frequency converter cable applications, ensuring the cable meets specialized requirements for variable frequency drive installations. This standard encompasses electromagnetic compatibility, insulation coordination, and mechanical performance criteria specific to inverter-fed motor applications.

The standard also addresses installation practices, derating factors, and application guidelines specific to frequency converter systems. This comprehensive approach ensures optimal cable performance and system reliability in inverter-driven applications.

5.3. IEC 60228 Conductor Stranding

Conductor construction follows IEC 60228 class 5 specifications, ensuring optimal flexibility and electrical performance. This international standard defines stranding requirements for flexible cables, specifying conductor construction parameters that directly impact cable performance and longevity.

Class 5 stranding provides the highest level of flexibility among standard conductor constructions, making it ideal for applications involving regular movement or installation in confined spaces with tight bending radii.

Installation Guidelines

6.1. Fixed Installations vs. Flexible Connections

Installation requirements vary significantly between fixed and flexible applications. Fixed installations accommodate minimum bending radii of 4x outer diameter, allowing for more compact routing in cable trays and conduit systems. These installations benefit from reduced mechanical stress and extended operational life.

Flexible connections require increased bending radii (5x outer diameter) to accommodate movement without inducing excessive mechanical stress. Proper support systems and strain relief measures ensure long-term reliability in dynamic applications.

6.2. Temperature and Load Considerations

Current-carrying capacity follows DIN VDE 0298-4 table 15 and DIN EN 50628 specifications, with appropriate derating factors applied for elevated ambient temperatures and bundled installations. Proper load calculation ensures optimal cable performance while maintaining safety margins.

Temperature considerations encompass both ambient conditions and internal heating from current loading. Adequate ventilation and thermal management prevent excessive temperature rise that could compromise cable performance or safety.

6.3. Best Practices for Long-Term Durability

Proper installation techniques significantly impact cable longevity and performance. Key practices include appropriate support spacing, strain relief at terminations, and protection from mechanical damage during installation and operation.

Regular inspection and maintenance programs identify potential issues before they result in cable failure. Visual inspection for outer sheath damage, thermal monitoring of connections, and insulation testing provide early warning of developing problems.

Conclusion

7.1. Summary of Advantages

The NTMCGCW11Y represents a comprehensive solution for demanding mining applications requiring reliable power delivery under extreme conditions. Its advanced construction incorporates specialized materials and design features that address the unique challenges of mining environments.

Key advantages include exceptional mechanical protection, comprehensive environmental resistance, and electromagnetic compatibility suitable for frequency converter applications. The cable's compliance with international standards ensures reliable performance and regulatory acceptance across diverse mining operations.

7.2. Why Choose NTMCGCW11Y for Mining Applications

The flexible motor power supply cable specification of the NTMCGCW11Y delivers unmatched performance in critical mining applications. Its specialized construction and comprehensive testing ensure reliable operation under conditions that would compromise standard cable designs.

Investment in high-quality power cables like the NTMCGCW11Y reduces long-term operational costs through extended service life, reduced maintenance requirements, and improved system reliability. For mining operations where downtime represents significant economic impact, the cable's robust design and proven performance provide essential operational security.
