Ultimate Guide to High-Performance Mining and Tunnelling Cables in Australia: Maximising Safety, Reliability and Productivity in the Toughest Conditions

Australia’s mining and infrastructure sectors are world leaders, powering everything from iron ore exports in the Pilbara to coal operations in Queensland and major tunnelling projects like Sydney Metro and Melbourne’s Suburban Rail Loop. In these extreme environments — characterised by abrasive dust, high mechanical stress, water ingress, chemical exposure and relentless operational demands — having the right power cables isn’t just important, it’s mission-critical. Downtime costs millions, safety incidents can be catastrophic, and regulatory compliance with Australian Standards is non-negotiable.

This comprehensive guide explores the complete range of specialised mining and tunnelling cables designed specifically for Australian conditions. From high-voltage reeling cables for Tunnel Boring Machines (TBMs) to flexible low-voltage solutions for mobile equipment, these cables deliver unmatched durability, flexibility and performance. Whether you’re a procurement manager sourcing for a new underground mine in Western Australia, a tunnelling contractor on a major metro project, or an OEM specifying equipment for harsh remote sites, you’ll find the technical insights and real-world applications you need here.

Why Australian Mining and Tunnelling Demand Specialised Cable Solutions

Australian mining operates in some of the harshest conditions on earth. Temperatures swing from sub-zero in Tasmania to over 45°C in the Pilbara. Cables face constant reeling and unreeling on heavy mobile equipment, extreme bending, torsional stress, rock falls, water, oils, fuels and UV exposure. Traditional cables fail prematurely, leading to unplanned shutdowns, increased maintenance and higher total cost of ownership.

Modern operations also demand higher voltages for greater efficiency, halogen-free materials for improved fire safety in confined underground spaces, and lightweight compact designs to reduce installation fatigue on long reeling systems. Sustainability goals — including lower CO₂ emissions through reduced downtime and more efficient power delivery — further drive the need for advanced cable technology.

The cables detailed in this guide address all these challenges head-on. They are engineered for both opencast and underground mining as well as major tunnelling projects, offering extended service life, superior mechanical strength and full compliance with relevant international and Australian requirements.

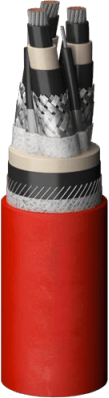

PROTOMONT TBM Series: Medium Voltage Reeling Cables for Tunnel Boring Machines (6–35 kV)

When it comes to powering massive Tunnel Boring Machines in projects like Sydney Metro or the Snowy 2.0 expansion, nothing beats the PROTOMONT TBM (N)TSCGECWOEU series. Available in voltage ratings from 6/10 kV right up to 20/35 kV, these cables are purpose-built for high-speed reeling applications on TBMs in underground mines and tunnel construction sites.

These cables feature finely stranded copper conductors (Class 5), robust EPR insulation, semi-conductive layers, and a specially formulated outer sheath that provides exceptional resistance to oil, ozone, UV and mechanical abrasion. With torsional stress tolerance of ±25%/m and permanent tensile strength up to 30 N/mm² for TBM applications, they handle the constant twisting, bending and acceleration that TBM operations demand.

Key specifications include maximum conductor temperatures of 90°C (250°C short circuit), flexible installation down to -20°C, and excellent current-carrying capacity across a wide range of cross-sections. For example, the 3x150+3x70/3E configuration in 12/20 kV offers approximately 428 A capacity while maintaining a manageable outer diameter and weight optimised for reeling drums.

In practice, these cables have proven their worth on major Australian tunnelling projects where reliability directly impacts schedule. On long drives through variable geology — think sandstone, basalt and fault zones common in New South Wales and Victoria — the PROTOMONT TBM range minimises power interruptions and supports continuous operation even under extreme misalignment and high travel speeds.

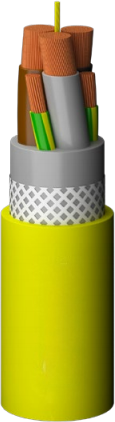

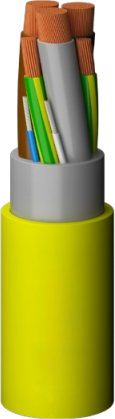

TROMMELEX-M-PUR Series: Flexible Low Voltage Reeling Cables for Drills and LHDs (1.1 kV)

For underground mobile equipment such as drill rigs, Load-Haul-Dump (LHD) units and scoops, the TROMMELEX-M-PUR D2X11Y and braided variants deliver outstanding performance. These halogen-free, flame-retardant polyurethane-sheathed cables are optimised for frequent dynamic loads and high mechanical stress in reeling and trailing applications.

The standard TROMMELEX-M-PUR offers travel speeds up to 60 m/min in underground reeling, while the braided version pushes this to 100 m/min thanks to its central aramide element and additional reinforcement. Both feature XLPE insulation, split earth conductors and control cores where required, with bending radii as tight as 4xD for fixed installation and 8xD for reeling.

These cables excel in Western Australian gold and nickel operations and Queensland coal mines, where equipment moves constantly between headings. The polyurethane outer sheath provides superior abrasion resistance against sharp rock and equipment contact, while the halogen-free construction significantly reduces toxic smoke in the event of fire — a critical safety factor in confined underground environments mandated by Australian mining regulations.

Procurement teams appreciate the compact, lightweight design, which can reduce overall cable weight by up to 40% compared to older rubber-insulated alternatives without sacrificing performance. This translates directly to easier handling, lower energy consumption on reeling systems and reduced structural loads on mobile machinery.

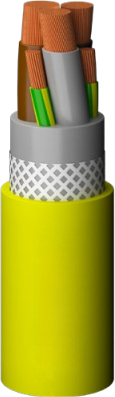

TUNNELEX-PUR HF and TUNNELEX-R-PUR HF: Halogen-Free Low Voltage Power Cables for Mobile Applications (1.1 kV)

For power supply to mobile equipment with high mechanical damage risk, the TUNNELEX series offers two excellent options. The TUNNELEX-PUR HF (without antitwisting protection) suits applications where deflection occurs in one plane only, with a maximum speed of 60 m/min. The TUNNELEX-R-PUR HF variant includes antitwisting protection, enabling higher speeds up to 120 m/min and better performance in complex reeling paths.

Both use XLPE insulation, HFFR thermoplastic polyurethane sheaths and offer excellent oil, chemical and abrasion resistance. Available in configurations from 4G10 up to 3x240+3G50 (with or without control cores), they deliver reliable current carrying capacity — for instance, the 3x95+3G16 setup handles around 301 A while maintaining flexibility down to -30°C.

These cables are ideal for feeder applications in underground development drives and longwall operations common across the Hunter Valley and Bowen Basin. Their flame-retardant, halogen-free properties align perfectly with stringent Australian underground fire safety standards, while the robust mechanical design withstands the constant movement and potential rock impact seen in Australian hard-rock mining.

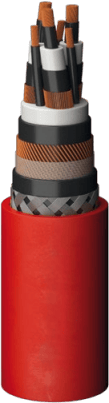

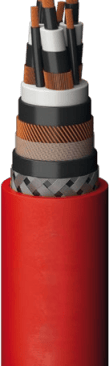

SUPROMONT Series: Halogen-Free Rubber Insulated Medium Voltage Flexible Cables (6–35 kV)

For heavy-duty medium voltage applications in underground mining and tunnelling, the SUPROMONT (N)3GHSSHCH and (N)3GHSSYCY families set the benchmark. These cables are specifically engineered as reeling power supply solutions for TBMs and feeder cables for shiftable MV equipment such as compressor-resistant transformers.

The SUPROMONT range features robust rubber insulation, comprehensive screening, and halogen-free, flame-retardant construction. Voltage ratings span 3.6/6 kV to 20/35 kV, with configurations including multiple power cores, earth conductors and control pairs. They offer permanent tensile strength of 15 N/mm², bending radii of 6xD fixed and 10xD flexible, and excellent resistance to UV, ozone and mechanical stress.

The (N)3GHSSHCH variant is particularly suited for high-reeling TBM applications, while the (N)3GHSSYCY provides outstanding performance as a flexible feeder cable in dynamic underground environments. Both maintain high current-carrying capacity across large cross-sections and deliver reliable operation even in high-humidity, chemically aggressive conditions typical of Australian deep underground mines.

Key Performance Benefits Across the Entire Range

All these cables share core advantages that directly address Australian operational challenges:

• Extended Service Life: Engineered compounds and robust construction deliver significantly longer operational life, reducing replacement frequency and associated downtime costs.

• Superior Mechanical Performance: High flexibility combined with exceptional tensile, torsional and abrasion resistance handles the punishing duty cycles of reeling, trailing and mobile equipment.

• Enhanced Safety: Halogen-free, flame-retardant designs minimise fire risks and toxic emissions — essential for underground compliance and worker safety.

• Environmental Resilience: Outstanding resistance to extreme temperatures, water, oils, fuels, acids, UV and ozone ensures reliable performance across Australia’s diverse climates.

• Efficiency Gains: Compact, lightweight designs and optimised electrical parameters support higher voltages and reduce energy losses, contributing to lower operating costs and sustainability targets.

• Customisation: Wide range of cross-sections, control core options and voltage ratings allow precise matching to specific equipment and project requirements.

Real Australian Application Success Stories

In the Pilbara region of Western Australia, one of the world’s largest iron ore operations deployed PROTOMONT TBM and SUPROMONT cables on a major underground expansion project. The cables handled continuous reeling on TBMs driving through abrasive banded iron formation, achieving over 18 months of service with minimal maintenance despite extreme dust and vibration. This contributed to the project beating scheduled timelines and delivering substantial cost savings.

A major Queensland coal mine in the Bowen Basin switched to TROMMELEX-M-PUR braided cables for their LHD and drill fleet. The improved flexibility and abrasion resistance reduced cable failures by more than 60% compared to previous solutions, directly boosting daily production rates and improving safety statistics in gaseous underground environments.

On Sydney Metro’s heavy tunnelling phases, TUNNELEX-R-PUR HF cables powered critical mobile equipment in the confined spaces beneath one of the world’s busiest cities. Their antitwisting properties and high-speed capability supported rapid advance rates while maintaining full compliance with Transport for NSW safety standards.

In South Australia’s Olympic Dam expansion, SUPROMONT medium voltage flexible cables provided reliable feeder power to shiftable equipment in deep underground operations, handling the challenging combination of high ambient temperatures and significant mechanical loads with excellent long-term performance.

These real-world examples demonstrate how selecting the right cable technology translates into measurable improvements in productivity, safety and total cost of ownership.

Choosing the Right Cable for Your Australian Operation

Selecting the optimal cable requires careful consideration of several factors:

1. Application Type — Reeling on TBMs (PROTOMONT TBM), mobile equipment like LHDs (TROMMELEX-M-PUR), or general flexible feeders (TUNNELEX / SUPROMONT).

2. Voltage Requirements — Low voltage (1.1 kV) for smaller equipment or medium voltage (up to 35 kV) for high-power TBMs and main feeders.

3. Mechanical Demands — Travel speed, bending radius, tensile load and presence of antitwisting needs.

4. Environmental Conditions — Temperature range, water depth, chemical exposure and fire safety requirements specific to your site.

5. Project Duration and Scale — Longer-term projects benefit from the extended lifespan and lower maintenance characteristics of these premium solutions.

Working with experienced suppliers who understand Australian conditions ensures you get the right specification first time, with full technical support for installation, reeling system design and ongoing performance monitoring.

Sustainability and Future-Proofing Australian Mining

Australian mining companies face increasing pressure to reduce emissions, improve energy efficiency and demonstrate environmental responsibility. These cable solutions contribute directly by enabling higher-voltage, more efficient power distribution, reducing energy losses and minimising equipment downtime. Their long service life also reduces material consumption and waste over the life of a mine or project.

As the industry moves toward greater electrification, automation and data-driven operations, these cables provide the robust backbone necessary for integrating advanced monitoring systems and supporting next-generation mining equipment.

Conclusion: Invest in Performance That Delivers Results

In Australia’s competitive resources sector, every component matters. The PROTOMONT TBM, TROMMELEX-M-PUR, TUNNELEX-PUR HF / R-PUR HF and SUPROMONT series represent the cutting edge of mining and tunnelling cable technology — specifically engineered to thrive in Australian conditions while delivering lower total costs, higher safety and improved productivity.

Whether you’re planning a new underground development, expanding existing operations or upgrading equipment fleets, these cables provide the reliability and performance edge your operation needs. Don’t let cable failure hold back your project timelines or safety record.

Contact specialist mining cable suppliers today to discuss your specific requirements. With the right technical expertise and the full range of these proven solutions available, you can ensure your next project — whether in the Pilbara, Bowen Basin, Hunter Valley or a major metropolitan tunnelling initiative — runs smoother, safer and more profitably than ever before.

The Australian mining and infrastructure boom continues. Make sure your power infrastructure is ready to support it with the best performing cables engineered for the job.
