Introduction

Overview of NSSHOEU Heavy-Duty Rubber Cable

The NSSHOEU heavy-duty rubber cable represents a pinnacle of engineering excellence in power supply solutions for demanding industrial environments. Designed specifically for mobile equipment and machinery operating under extreme mechanical loads, this cable system delivers uncompromising performance in the harshest conditions. The NSSHOEU series combines advanced materials science with proven manufacturing techniques to create a mobile equipment power cable that withstands the rigorous demands of modern industrial operations.

This specialized power supply cable features a robust construction that ensures reliable electrical transmission while maintaining flexibility for dynamic applications. The cable's design philosophy centers on providing maximum durability without sacrificing operational efficiency, making it the preferred choice for engineers and contractors working in challenging environments where standard cables fail to meet performance requirements.

Key Applications and Market Needs

The industrial landscape demands power solutions that can handle extreme environmental conditions while maintaining consistent electrical performance. The NSSHOEU cable addresses critical market needs in sectors where traditional cabling systems prove inadequate. Primary applications include mobile machinery in open-pit mining operations, construction equipment in harsh outdoor environments, and portable devices requiring reliable power transmission under mechanical stress.

Modern industrial operations increasingly require flexible EPR insulated cable for outdoor installation that can withstand temperature fluctuations, chemical exposure, and physical stress. The growing emphasis on operational efficiency and safety in mining, construction, and heavy industrial sectors has created a strong demand for cable for portable devices under mechanical stress that maintain performance integrity over extended service periods.

Compliance and Standards

DIN VDE 0250-812 Certification

The NSSHOEU DIN VDE 0250-812 cable meets the most stringent requirements for heavy-duty rubber cables in industrial applications. This certification ensures that the cable system complies with German engineering standards for electrical safety, performance, and reliability. The DIN VDE 0250-812 standard specifically addresses the unique requirements of mobile equipment applications, including enhanced mechanical strength, environmental resistance, and electrical integrity under dynamic loading conditions.

This certification process involves rigorous testing protocols that evaluate the cable's performance across multiple parameters, including conductor integrity, insulation effectiveness, sheath durability, and overall system reliability. The compliance with DIN VDE 0250-812 provides users with confidence that the cable will perform as specified in demanding industrial environments.

EN 50575 (CPR) Classification

The EN 50575 CPR-classified rubber power cable designation ensures compliance with the European Construction Products Regulation, which governs the fire safety and performance characteristics of cables used in construction and industrial applications. This classification system evaluates the cable's reaction to fire, smoke production, and toxic gas emission under controlled conditions.

The CPR classification is particularly important for installations in enclosed spaces, underground facilities, and areas where fire safety is paramount. The NSSHOEU cable's compliance with EN 50575 standards demonstrates its suitability for applications where fire safety regulations are stringent and where the cable must contribute to overall facility safety protocols.

Mining and Industrial Installation Standards

The cable meets comprehensive requirements outlined in DIN EN 50628 for electrical installations in underground mines, DIN VDE 0168 for open-cast mining operations, and DIN VDE 0298-3 for non-harmonized low voltage cable applications. These standards collectively ensure that the NSSHOEU cable performs reliably in the most demanding mining and industrial environments.

DIN EN 50628 specifically addresses the unique challenges of underground mining, including exposure to moisture, mechanical stress, and potentially explosive atmospheres. DIN VDE 0168 focuses on surface mining operations where cables face extreme weather conditions, abrasive materials, and heavy mechanical loads. The compliance with DIN VDE 0298-3 ensures proper application guidelines for various industrial installations.

Technical Specifications

Conductor and Insulation Materials

The NSSHOEU cable features tinned copper class 5 conductors manufactured according to IEC 60228 standards. These finely stranded conductors provide exceptional flexibility while maintaining excellent electrical conductivity and corrosion resistance. The tinning process creates a protective barrier that prevents oxidation and ensures long-term electrical performance in harsh environments.

The insulation system utilizes EPR compound type 3GI3 compliant with DIN VDE 0207-20 specifications. This advanced insulation material offers superior thermal stability, electrical properties, and mechanical durability. The EPR compound maintains its insulating properties across the cable's operating temperature range while providing excellent resistance to environmental stresses including moisture, chemicals, and mechanical deformation.

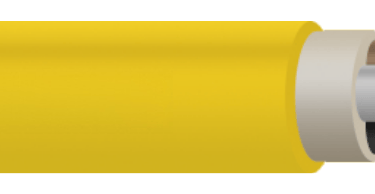

Sheath Construction

The cable's protective system features a dual-sheath construction designed for maximum environmental protection. The inner sheath consists of GM1b synthetic rubber compound conforming to DIN VDE 0207-21 standards. This inner protection layer fills interstices between conductors and provides additional mechanical support while maintaining cable flexibility.

The outer sheath utilizes 5GM5 heavy-duty rubber compound, also meeting DIN VDE 0207-21 requirements. This UV oil moisture resistant mobile equipment cable sheath provides the primary barrier against environmental hazards including oil exposure, moisture ingress, and ultraviolet radiation. The characteristic yellow color with inkjet marking ensures easy identification and traceability in field installations.

Electrical and Thermal Parameters

The NSSHOEU cable operates across multiple voltage ratings including 0.7/1.2 kV standard configuration with capabilities extending to 3 kV for specialized applications. The maximum permissible operating voltage reaches 0.9/1.8 kV for AC systems and 2 kV for DC applications, providing flexibility for various electrical system requirements.

Thermal performance spans from -40°C to 80°C for fixed installations and -30°C to 80°C for flexible movement applications. The maximum permissible conductor temperature reaches 90°C during normal operation, with short-circuit capabilities up to 200°C. These thermal parameters ensure reliable operation across the full range of industrial environmental conditions.

Mechanical Performance

The cable withstands maximum tensile loads up to 15 N/mm² on conductors, providing exceptional resistance to pulling forces encountered during installation and operation. Bending radius specifications allow 4× outer diameter for fixed installations and 5× outer diameter for flexible movement, ensuring proper installation without compromising cable integrity.

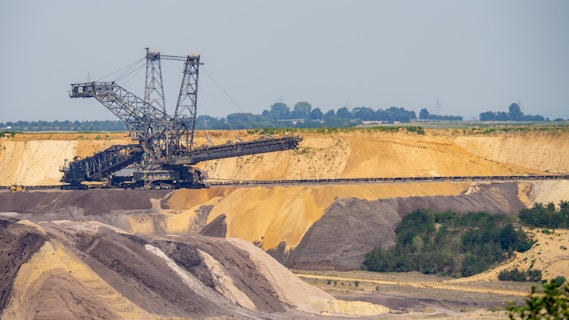

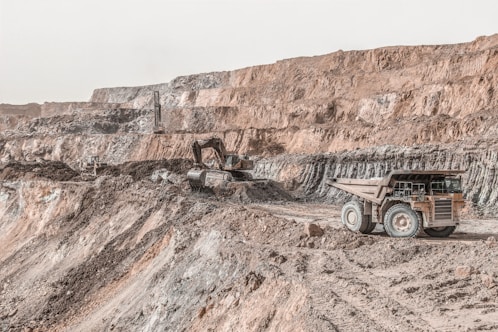

These mechanical specifications make the heavy-duty rubber cable for open pits and quarries particularly suitable for applications involving frequent movement, vibration, and physical stress. The cable maintains electrical and mechanical integrity even under continuous flexing and dynamic loading conditions typical of mobile equipment operations.

Environmental and Operational Resistance

Oil and Chemical Resistance

The cable demonstrates exceptional resistance to oil and various industrial chemicals according to IEC 60811-404 testing standards. This resistance ensures reliable operation in environments where petroleum products, hydraulic fluids, and industrial lubricants are present. The specialized sheath materials maintain their protective properties even after prolonged exposure to aggressive chemicals commonly found in mining and heavy industrial operations.

The oil resistance extends to both the outer sheath and inner protective layers, providing comprehensive protection against chemical ingress that could compromise electrical performance or mechanical integrity. This feature is particularly crucial for mobile equipment applications where hydraulic systems and lubricants are integral to machinery operation.

UV, Ozone, and Weather Resistance

The NSSHOEU cable provides unrestricted outdoor use capability with comprehensive resistance to ultraviolet radiation, ozone exposure, and moisture ingress. The advanced sheath formulation includes UV stabilizers that prevent degradation from prolonged solar exposure, ensuring consistent performance in outdoor installations.

Weather resistance encompasses protection against temperature cycling, moisture penetration, and atmospheric contaminants. The cable maintains flexibility and electrical properties across seasonal weather variations, making it ideal for year-round outdoor applications in diverse climatic conditions.

Fire Behavior

Fire safety characteristics comply with IEC 60332-1-2 standards, ensuring controlled flame propagation and minimal fire contribution in the unlikely event of ignition. The cable's fire behavior properties are particularly important in confined spaces, underground installations, and areas where fire safety is critical to personnel protection and facility preservation.

The flame-retardant properties of the sheath materials help prevent fire propagation along cable runs while minimizing toxic smoke generation. These characteristics contribute to overall facility safety protocols and emergency response procedures.

Product Variants and Dimensions

Single-Core and Multi-Core Configurations

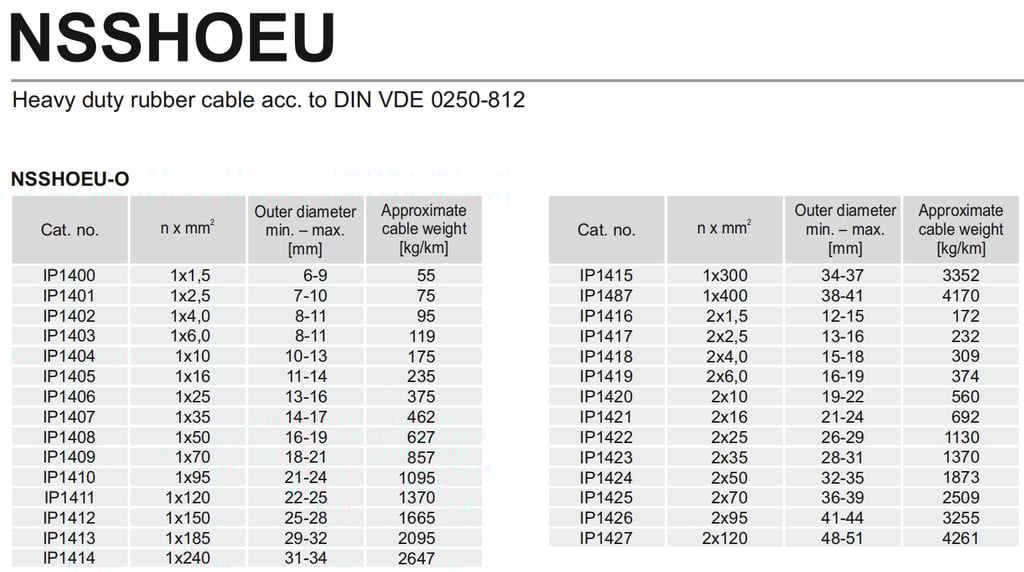

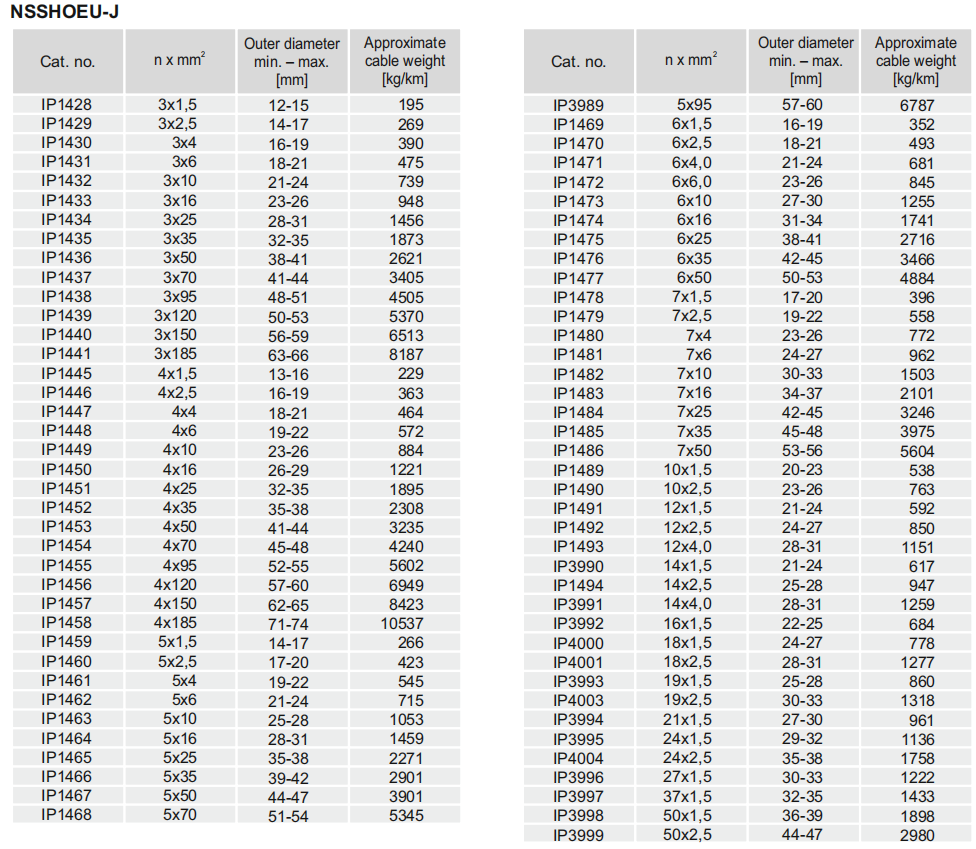

The NSSHOEU series offers comprehensive configuration options ranging from single-core designs starting at 1.5 mm² up to large multi-core arrangements accommodating up to 50 conductors. Single-core variants span from 1.5 mm² to 400 mm² cross-sectional areas, providing solutions for applications requiring high current capacity in compact installations.

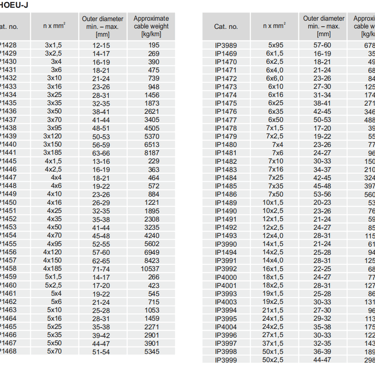

Multi-core configurations include standard arrangements from 2×1.5 mm² through complex 50×2.5 mm² designs. Specialized variants incorporate protective conductor arrangements including symmetrically split designs (/3), distributed protective conductors (/3E), and concentric protective conductor systems (/KON) for enhanced safety in specific applications.

Cable Diameter and Weight Ranges

Cable outer diameters range from 6-9 mm for the smallest single-core variants up to 68-71 mm for the largest multi-core configurations. Weight specifications span from 55 kg/km for compact single-core cables to nearly 12,000 kg/km for heavy-duty multi-core assemblies, allowing precise load calculations for installation planning.

These dimensional specifications enable engineers to select appropriate cable sizes for specific applications while considering installation constraints, support requirements, and handling limitations. The comprehensive range ensures optimal solutions for diverse mobile equipment power requirements.

Custom Lengths and Special Conductor Arrangements

The NSSHOEU system accommodates custom length requirements and specialized conductor arrangements for unique applications. Special configurations include power and control conductor combinations, varied protective conductor arrangements, and custom core color coding schemes to meet specific project requirements.

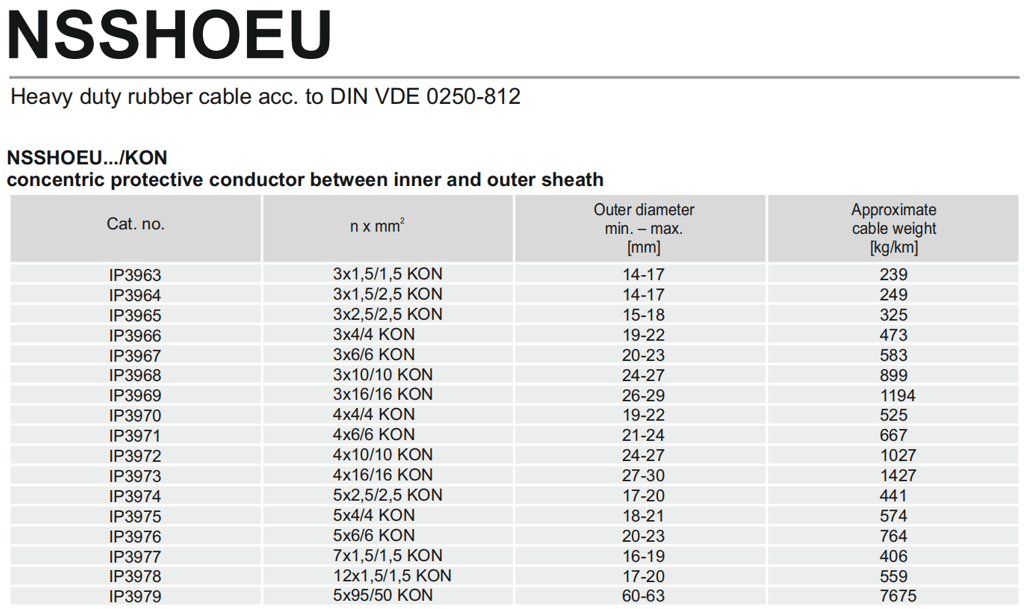

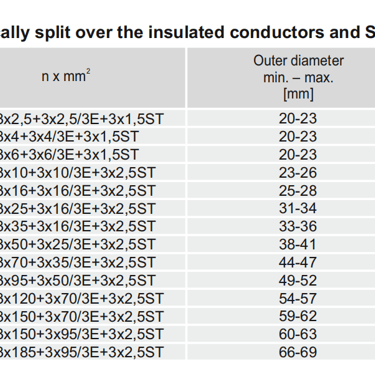

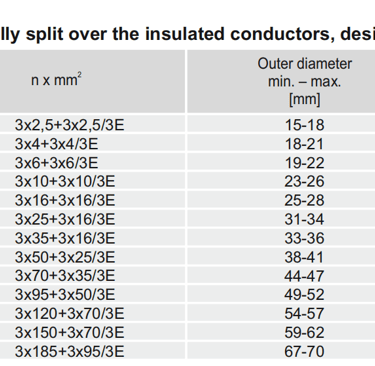

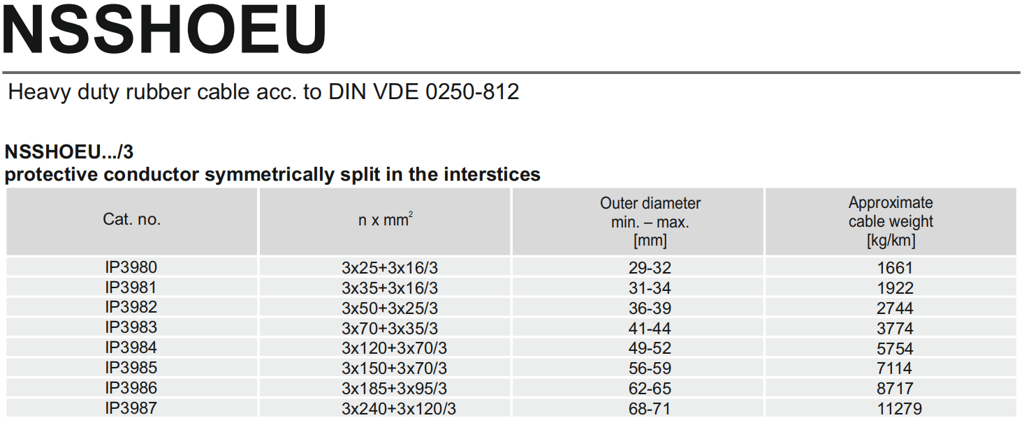

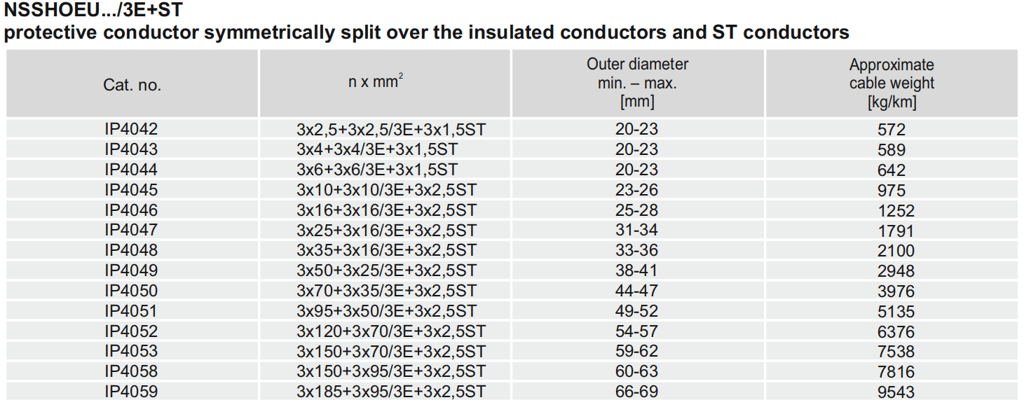

Protective conductor variations include standard earth conductors, symmetrically split protective systems for enhanced fault protection, and concentric arrangements for maximum electromagnetic compatibility. These options provide flexibility in system design while maintaining compliance with applicable safety standards.

Installation and Handling Guidelines

Fixed vs. Flexible Installation Best Practices

Installation procedures vary significantly between fixed and flexible applications, with specific requirements for cable support, protection, and routing. Fixed installations allow tighter bending radii (4× outer diameter) and support longer cable runs without intermediate support points. Proper cable tray selection, conduit sizing, and termination practices ensure optimal performance and service life.

Flexible installations require careful attention to dynamic stress management, including proper strain relief, adequate bending radius maintenance (5× outer diameter), and protection from abrasion or impact damage. Mobile equipment installations benefit from specialized cable management systems that accommodate movement while protecting the cable from mechanical damage.

Temperature De-Rating Factors

Current carrying capacity adjustments according to DIN VDE 0298-4 ensure safe operation across varying ambient temperature conditions. De-rating factors account for ambient temperature variations, cable grouping effects, and thermal insulation considerations that affect heat dissipation capabilities.

Proper application of de-rating factors prevents conductor overheating and ensures compliance with electrical safety standards. Installation planning must consider seasonal temperature variations, equipment heat generation, and ventilation capabilities to maintain safe operating conditions throughout the cable's service life.

Maintenance and Inspection Recommendations

Regular inspection protocols should focus on visual examination of the outer sheath for signs of mechanical damage, chemical attack, or thermal stress. Electrical testing procedures should verify insulation resistance, conductor continuity, and ground system integrity according to applicable maintenance standards.

Preventive maintenance includes cleaning of terminations, inspection of support systems, and verification of protective measures. Documentation of inspection results and maintenance activities provides valuable data for service life prediction and replacement planning.

Key Benefits and Use Cases

Enhanced Safety in Explosive and Wet Environments

The NSSHOEU cable's compliance with mining standards ensures safe operation in potentially explosive atmospheres and high-moisture environments. The robust construction prevents electrical faults that could ignite explosive gases or vapors, while the moisture-resistant design maintains electrical integrity in wet conditions.

Safety benefits extend to personnel protection through reliable electrical isolation and fault protection capabilities. The cable's flame-retardant properties contribute to fire safety protocols, while the visible yellow outer sheath enhances safety awareness in industrial environments.

Longevity Under Mechanical Stress

The cable's exceptional mechanical durability translates to extended service life in demanding applications, reducing replacement costs and minimizing operational downtime. The combination of flexible conductors, durable insulation, and protective sheathing maintains performance integrity under continuous mechanical stress.

Long-term reliability benefits include consistent electrical performance, maintained environmental protection, and preserved safety characteristics throughout the cable's operational life. This durability advantage provides significant economic benefits through reduced maintenance requirements and extended replacement intervals.

Versatility Across Mining, Construction, and Industrial Applications

The NSSHOEU cable's comprehensive specifications make it suitable for diverse industrial applications beyond its primary mining focus. Construction equipment, industrial machinery, and specialized mobile devices all benefit from the cable's robust design and environmental resistance capabilities.

Application versatility extends to various voltage levels, environmental conditions, and mechanical requirements, providing engineers with a single cable solution for multiple project requirements. This versatility simplifies procurement, inventory management, and installation procedures across diverse industrial applications.

Conclusion and Call to Action

Summary of NSSHOEU Advantages

The NSSHOEU heavy-duty rubber cable represents the optimal solution for mobile equipment power applications in harsh industrial environments. Its comprehensive compliance with international standards, exceptional environmental resistance, and superior mechanical durability make it the preferred choice for demanding applications where standard cables fail to meet performance requirements.

The cable's advanced materials, robust construction, and extensive configuration options provide engineers with the flexibility to address diverse application requirements while maintaining the highest standards of safety and reliability. The combination of technical excellence and proven field performance establishes the NSSHOEU cable as the industry standard for mobile equipment power solutions.

Contact Information for Technical Support and Ordering

For detailed technical specifications, application guidance, or procurement information, contact our engineering support team who can provide customized solutions for specific project requirements. Our technical experts are available to assist with cable selection, installation planning, and performance optimization to ensure successful project outcomes.

Professional installation support, maintenance guidance, and field service capabilities are available to maximize the performance and service life of NSSHOEU cable installations. Contact us today to discuss your mobile equipment power requirements and discover how the NSSHOEU cable system can enhance the reliability and safety of your industrial operations.
