High-Performance (N)TSCGEWOEU-F Flexible Power Cable for Opencast Mining Applications: Durable, UV-Resistant, Oil-Resistant Solution

Introduction

The demanding environment of opencast mining operations requires power cables that can withstand extreme conditions whilst maintaining reliable electrical performance. The (N)TSCGEWOEU-F cable represents a specialised solution engineered specifically for these challenging applications. This flexible power cable combines robust construction with advanced materials to deliver exceptional performance in the harsh conditions typical of opencast mining cable installations.

In opencast technology, where heavy machinery operates continuously under severe environmental stresses, the reliability of power distribution systems becomes paramount. Equipment failures due to inadequate cabling can result in costly downtime, safety hazards, and significant operational disruptions. The (N)TSCGEWOEU-F cable addresses these concerns by providing a medium voltage, flexible power supply solution designed for both fixed and semi-fixed installations in mining environments.

The cable's sophisticated design incorporates multiple layers of protection and specialised compounds that enable it to perform reliably in applications involving conveyor systems, transformer connections, spreaders, and bucket wheel excavators. Its construction allows for continuous slight movements, including free overhang conditions and twisting motions that are commonplace in modern mining operations.

Key Features and Technical Specifications

Cable Type and Construction

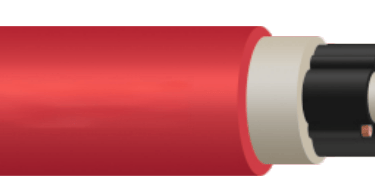

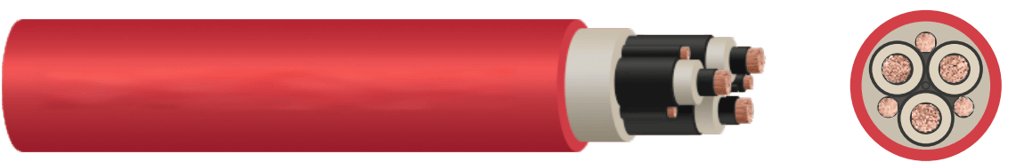

The (N)TSCGEWOEU-F cable features bare copper Class 5 conductors (EN 60228/IEC 60228) that provide excellent electrical conductivity whilst maintaining the flexibility required for dynamic applications. These finely stranded conductors conform to the most stringent international standards, ensuring consistent performance and longevity.

The multi-core arrangement for fixed and semi-fixed installations comprises three main cores laid up symmetrically with protective conductors positioned in the interstices. This configuration optimises both electrical performance and mechanical integrity. The protective conductors are manufactured from plain copper wires with finely stranded construction, also meeting Class 5 standards, and feature a semi-conductive layer for enhanced performance.

The cable's insulation system includes an inner semi-conductive stress control layer, EPR compound with improved electrical and mechanical characteristics based on DIN VDE 0207-20, and an outer semi-conductive insulation shield layer. This multi-layer approach ensures excellent dielectric properties and long-term reliability under varying voltage stresses.

Rated Operating Voltage and Temperature Range

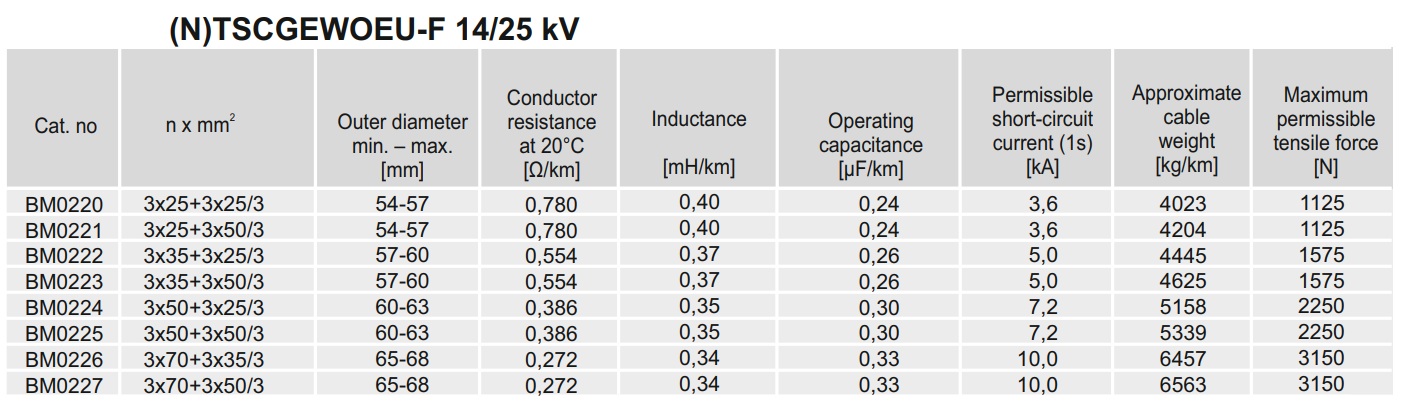

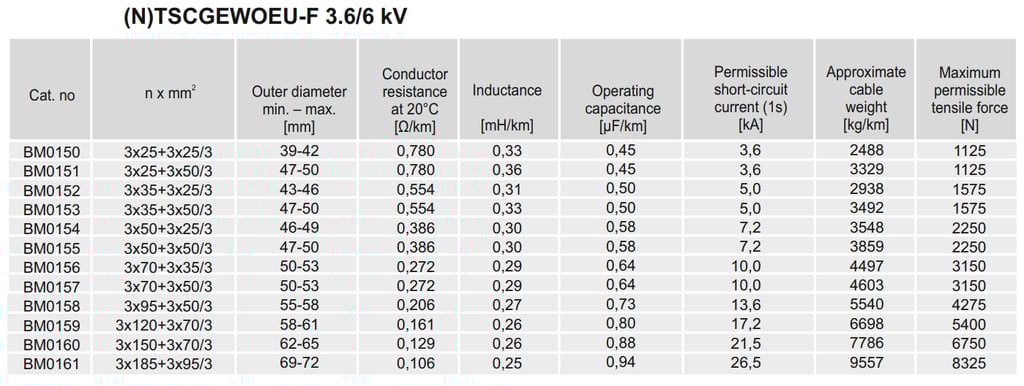

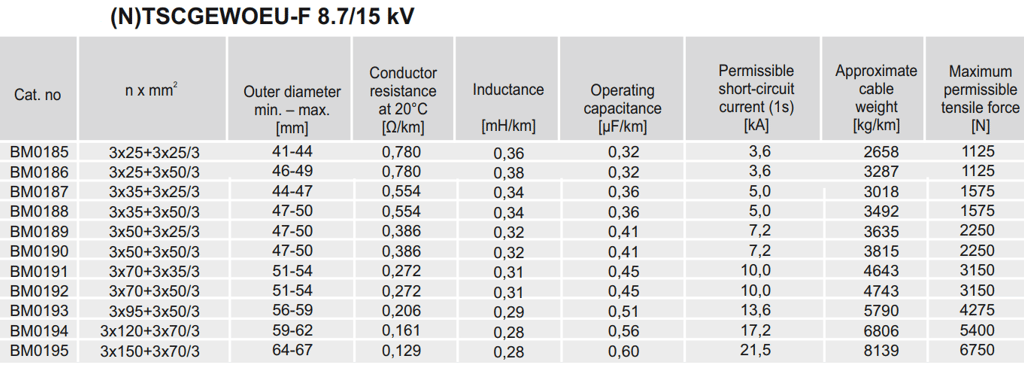

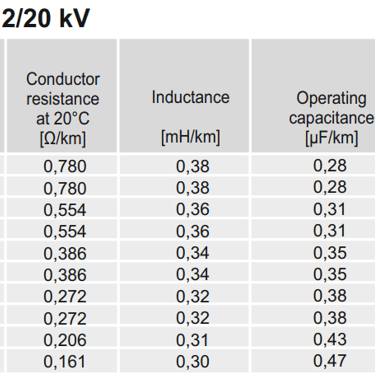

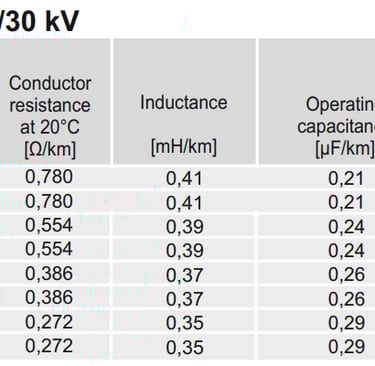

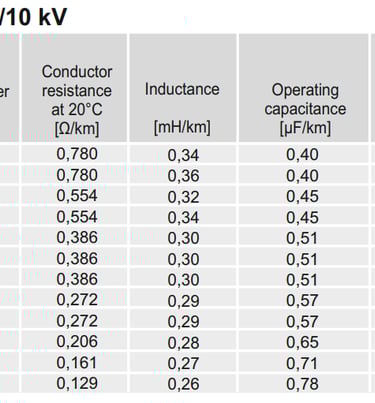

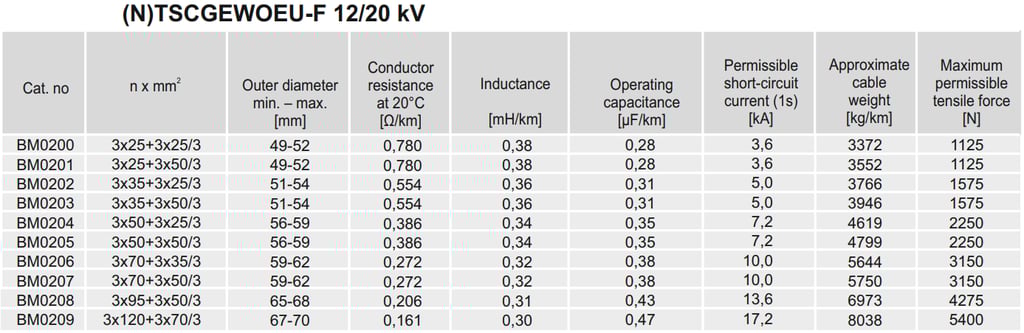

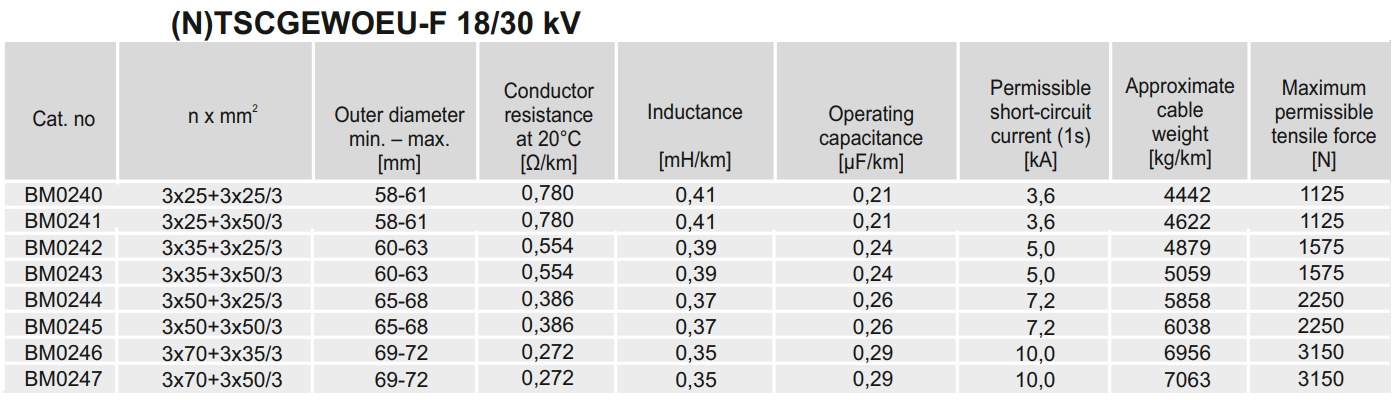

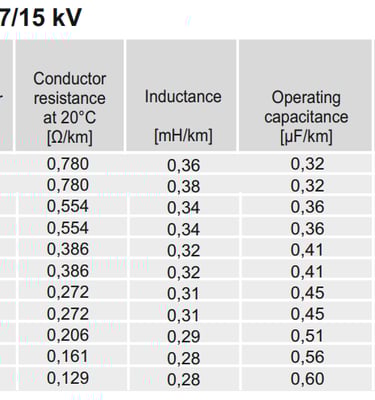

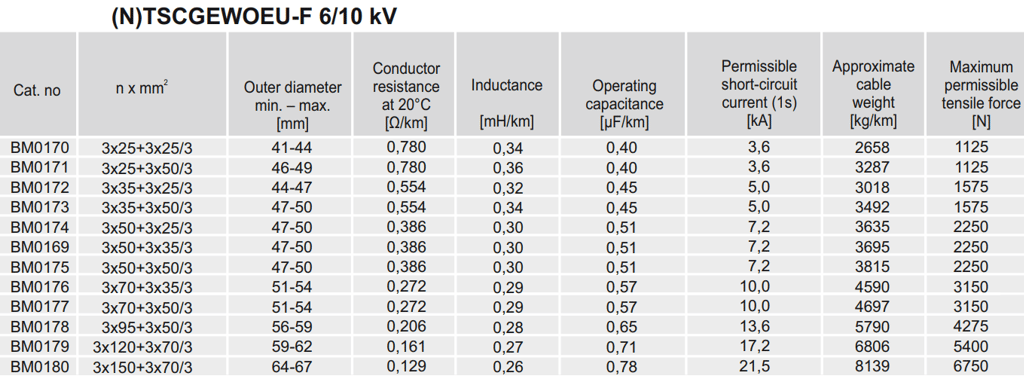

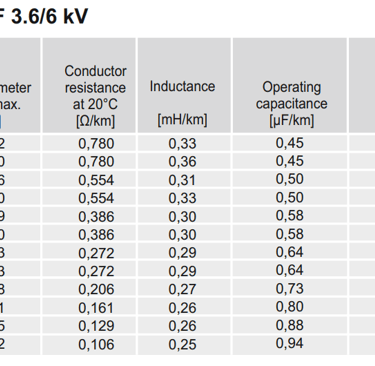

The (N)TSCGEWOEU-F cable is available in multiple voltage ratings to suit diverse applications. Standard offerings include 3.6/6 kV, 6/10 kV, 8.7/15 kV, 12/20 kV, 14/25 kV, and 18/30 kV configurations. The maximum permissible operating voltages range from 4.2/7.2 kV up to 20.8/36 kV in AC systems.

Operating temperature capabilities distinguish this cable from standard industrial offerings. For flexible connections: –25°C to 80°C operation is supported, whilst fixed installation: –40°C to 80°C applications are accommodated. This wide temperature range ensures reliable performance across diverse climatic conditions and seasonal variations common in opencast mining locations.

The maximum permissible conductor temperature reaches 90°C during normal operation, with short-circuit conditions accommodating up to 250°C at the conductor. These specifications, combined with appropriate de-rating factors according to DIN VDE 0298-4, ensure safe and reliable operation under all anticipated operating conditions.

Mechanical and Environmental Resistances

The cable's mechanical properties are specifically engineered for demanding mining applications. The max. tensile load: 15 N/mm² per conductor specification ensures the cable can withstand the pulling forces encountered during installation and operation. This robust mechanical design is complemented by torsional stresses ±100 °/m capability, allowing the cable to accommodate the twisting motions common in mobile mining equipment applications.

Enhanced oil resistance is achieved through careful selection of insulation and sheathing compounds. The cable demonstrates excellent performance when tested according to DIN EN/IEC 60811-404 standards, ensuring long-term reliability in oil-contaminated environments typical of mining operations.

Enhanced mechanical resistance is provided by the heavy-duty rubber compound outer sheath (type 5GM5 according to DIN VDE 0207-21), which offers superior protection against physical damage, abrasion, and mechanical stress. The distinctive red colour provides easy identification and includes inkjet marking for traceability.

UV and weather resistance enables unrestricted outdoor use, with the cable demonstrating excellent resistance to ozone, ultraviolet radiation, and moisture ingress. This comprehensive environmental protection ensures reliable long-term performance under the harsh outdoor conditions characteristic of opencast mining operations.

Flame retardance on a single wire is verified through testing to DIN EN/IEC 60332-1-2 standards, providing essential safety characteristics for mining applications where fire prevention and control are critical considerations.

Installation Guidelines

Outdoor use considerations include proper cable routing to minimise exposure to mechanical damage whilst allowing for the thermal expansion and contraction cycles common in outdoor installations. The cable's weather-resistant properties enable direct burial or aerial installation as application requirements dictate.

Bending radius per DIN VDE 0298-3 specifications ensure that installation practices maintain cable integrity. Adherence to these guidelines prevents conductor damage and insulation stress that could compromise long-term reliability.

Certifications and Approvals

CPR classification and DoP documentation ensure compliance with European construction product regulations, providing assurance of quality and safety for European mining operations. The comprehensive documentation package includes detailed performance specifications and installation guidelines.

Compliance with DIN EN and IEC standards (60811-404, 60332-1-2) demonstrates the cable's adherence to recognised international standards for oil resistance and flame retardance. These certifications provide confidence in the cable's suitability for critical mining applications where safety and reliability are paramount.

Typical Applications in Opencast Technology

Conveyor System Power Supply

The (N)TSCGEWOEU-F cable excels in conveyor system power supply applications where continuous operation and minimal maintenance are essential. The cable's flexibility allows it to accommodate the movement associated with mobile conveyor systems whilst maintaining reliable power delivery to drive motors and control systems.

Transformer Connection Cables

For transformer connection cables in mining operations, the cable's medium voltage capability and robust construction provide reliable power distribution between transformers and mining equipment. The enhanced oil resistance is particularly valuable in these applications where transformer oils may be present.

Spreaders and Bucket Wheel Excavators

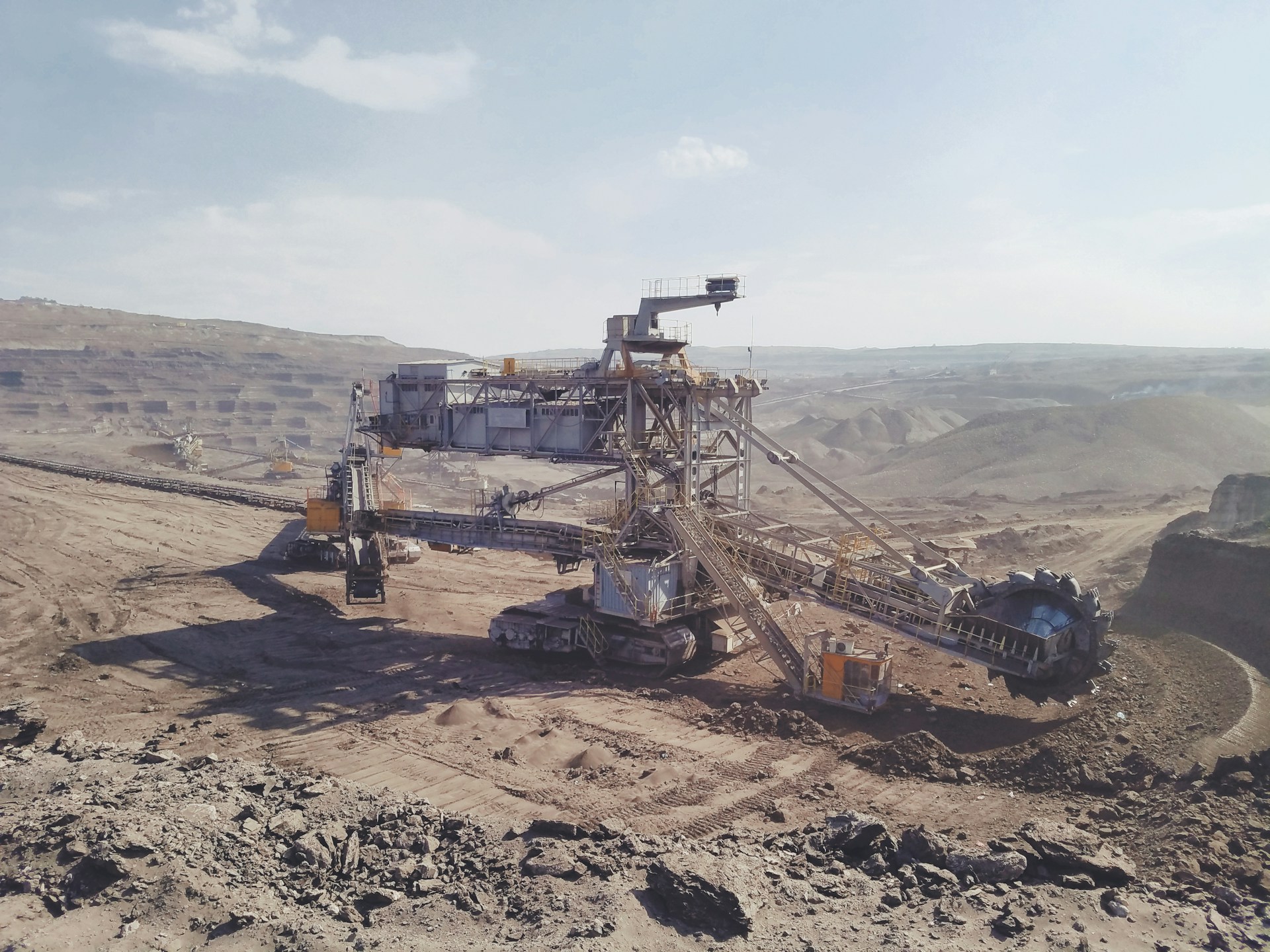

Spreaders and bucket wheel excavators represent some of the most demanding applications for mining cables. The cable for bucket wheel excavator twisting movements must accommodate continuous rotation and complex motions whilst maintaining electrical integrity. The (N)TSCGEWOEU-F cable's torsional stress capability and flexible construction make it ideally suited for these applications.

Scenarios Involving Continuous Movement

Scenarios involving slight continuous movement, twisting, or free overhang are commonplace in opencast mining. Whether supporting power supply to rotating equipment or providing connections that must flex with equipment movement, the cable's design parameters ensure reliable performance throughout the equipment's operating life.

Benefits of Choosing (N)TSCGEWOEU-F Cable

Improved Operational Uptime

The UV-resistant flexible power cable for mining applications significantly improves operational uptime by reducing cable-related failures. The comprehensive protection against environmental factors and mechanical stresses minimises unplanned maintenance and equipment downtime.

Reduced Maintenance and Replacement Costs

The oil-resistant Class 5 conductor cable design reduces long-term ownership costs through extended service life and reduced maintenance requirements. The robust construction and high-quality materials minimise the frequency of cable replacement, providing substantial cost savings over the equipment's operational life.

Enhanced Safety and Compliance

The high-tensile flexible cable –40 °C to 80 °C specification ensures safe operation across the full range of environmental conditions encountered in mining operations. The CPR-certified mining power cable provides additional assurance of safety and regulatory compliance for European operations.

Frequently Asked Questions

Q: How does the (N)TSCGEWOEU-F cable perform in extreme cold conditions?

A: The cable is specifically designed for operation down to –40°C in fixed installations and –25°C for flexible connections. The specialised compound formulations maintain flexibility and electrical properties even in extreme cold, ensuring reliable performance during winter operations or in cold climate mining locations.

Q: What makes this cable suitable for continuous twisting motions in bucket wheel excavators?

A: The cable's construction includes finely stranded Class 5 conductors and flexible insulation compounds that accommodate ±100°/m torsional stresses. The symmetrical core arrangement and protective conductor placement in the interstices ensure mechanical integrity during continuous rotation and twisting motions.

Q: How does the oil resistance benefit mining applications?

A: Mining equipment typically operates in environments with hydraulic fluids, lubricating oils, and fuel spillages. The cable's enhanced oil resistance, verified through DIN EN/IEC 60811-404 testing, prevents degradation of insulation and sheathing materials, maintaining electrical integrity and extending service life.

Q: What voltage ratings are available for different mining applications?

A: The (N)TSCGEWOEU-F cable is available in ratings from 3.6/6 kV up to 18/30 kV, with maximum permissible operating voltages ranging from 4.2/7.2 kV to 20.8/36 kV. This range accommodates most mining equipment power requirements from small mobile units to large excavators and processing equipment.

Conclusion and Call to Action

The (N)TSCGEWOEU-F flexible power cable represents the pinnacle of engineering for opencast mining applications. Its combination of robust mechanical properties, comprehensive environmental protection, and reliable electrical performance makes it the ideal choice for demanding mining operations.

The cable's ability to operate reliably across extreme temperature ranges, resist oil contamination, withstand continuous mechanical stress, and maintain flexibility under challenging conditions provides mining operators with a dependable power distribution solution that minimises downtime and reduces total cost of ownership.

For mining operators seeking to improve equipment reliability, reduce maintenance costs, and ensure compliance with safety standards, the (N)TSCGEWOEU-F cable offers proven performance advantages. The comprehensive range of voltage ratings and conductor sizes ensures suitable options for diverse mining applications, from small mobile equipment to large-scale excavation machinery.

To learn more about how the (N)TSCGEWOEU-F cable can improve your mining operation's reliability and efficiency, contact our technical support team for detailed specifications, installation guidance, and customised solutions for your specific application requirements. Our experienced engineers can provide recommendations based on your operational conditions and equipment specifications, ensuring optimal cable selection for your mining applications.
