High-Performance (N)TSCGEWOEU-SR PLUS Flexible Reeling Power Cable for Extreme Mechanical Stress in Mining and Harbor Cranes – Durable Cable Guidance Solutions

Introduction

Overview of Flexible Reeling Cables

In today's demanding industrial landscape, the reliability and performance of power supply systems can make the difference between operational success and costly downtime. Flexible reeling cables represent a critical component in mobile industrial equipment, providing continuous power transmission whilst accommodating complex mechanical movements inherent in heavy machinery operations. These specialised cables must withstand extreme environmental conditions, repetitive flexing cycles, and substantial mechanical stresses whilst maintaining electrical integrity and safety standards.

The evolution of flexible reeling cable technology has been driven by increasingly sophisticated industrial applications, particularly in sectors such as mining, maritime operations, and material handling. Modern industrial equipment operates in environments characterised by temperature extremes, chemical exposure, mechanical vibration, and continuous movement patterns that would quickly destroy conventional power cables. This reality has necessitated the development of advanced cable designs that can endure these challenging conditions whilst delivering reliable power transmission over extended operational periods.

Importance of High-Performance Cable Guidance in Heavy Industries

Effective cable guidance systems are fundamental to the operational efficiency and safety of heavy industrial equipment. In applications such as open-pit mining operations, harbor cranes, and stockyard material handling systems, cables must navigate complex three-dimensional movement patterns whilst maintaining electrical continuity and mechanical integrity. Poor cable guidance can result in premature cable failure, unexpected downtime, safety hazards, and substantial replacement costs.

The integration of high-performance cable guidance solutions becomes particularly critical when considering the scale and economic impact of modern industrial operations. A single equipment failure in a major mining operation or busy port facility can result in losses measured in hundreds of thousands of dollars per day. Consequently, investment in superior cable guidance technology represents not merely a technical consideration, but a strategic business decision that directly impacts operational profitability and competitive advantage.

Product Model and Certification

Cable Model: (N)TSCGEWOEU-SR PLUS

The (N)TSCGEWOEU-SR PLUS represents the pinnacle of flexible reeling cable technology, specifically engineered for the most demanding industrial applications. This medium voltage power supply cable incorporates advanced materials science and sophisticated construction techniques to deliver exceptional performance under extreme mechanical stress conditions. The designation reflects its optimised design for Superior Resilience (SR) applications with enhanced performance characteristics (PLUS) that exceed standard industry requirements.

This cable model has been developed through extensive research and development programmes, incorporating lessons learned from decades of field experience in harsh industrial environments. The design philosophy centres on providing maximum reliability whilst maintaining the flexibility necessary for complex reeling operations, resulting in a cable that can withstand the mechanical stresses encountered in the most challenging industrial applications.

DIN VDE 0250-813 CPR 305/2011 Compliance

Compliance with DIN VDE 0250-813 standards ensures that the (N)TSCGEWOEU-SR PLUS meets rigorous German engineering specifications for flexible cables in industrial applications. This standard addresses critical aspects of cable performance including mechanical properties, electrical characteristics, environmental resistance, and safety requirements. The standard's comprehensive approach ensures that cables meeting these specifications can perform reliably across a wide range of industrial applications and environmental conditions.

The CPR 305/2011 certification demonstrates compliance with the European Construction Products Regulation, which establishes harmonised rules for the marketing of construction products within the European Union. This certification provides assurance that the cable meets stringent safety and performance requirements, facilitating its use in projects requiring regulatory compliance whilst ensuring consistent quality standards across different markets and applications.

CPR Rating and Fire Safety Standards

Fire safety represents a critical consideration in industrial cable applications, particularly in environments where flammable materials or explosive atmospheres may be present. The (N)TSCGEWOEU-SR PLUS incorporates fire-resistant materials and construction techniques that comply with IEC 60332-1-2 flame behavior standards, ensuring controlled fire propagation characteristics that enhance overall facility safety.

The cable's fire safety performance extends beyond basic flame resistance to include considerations of smoke generation, toxic gas emission, and heat release characteristics. This comprehensive approach to fire safety ensures that the cable contributes to overall facility safety objectives whilst maintaining electrical performance under emergency conditions.

Key Applications

Open-Pit Mining Material Handling Machines

Open-pit mining operations present some of the most challenging environments for electrical equipment, combining extreme temperature variations, abrasive dust conditions, chemical exposure, and massive mechanical stresses. The (N)TSCGEWOEU-SR PLUS flexible reeling cable for open-pit mines addresses these challenges through its robust construction and superior environmental resistance characteristics.

Large-scale mining equipment such as draglines, electric shovels, and mobile crushers require power cables capable of withstanding continuous flexing cycles whilst supporting enormous mechanical loads. The cable's optimised conductor arrangement and reinforced sheath construction provide the mechanical strength necessary to support these demanding applications whilst maintaining electrical integrity throughout extended operational cycles.

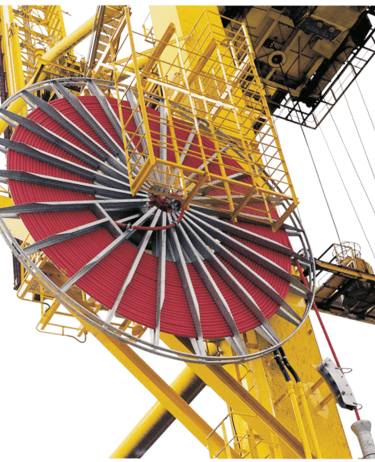

Harbor Crane Power Supply Cables

Modern harbor operations rely on sophisticated crane systems that must operate continuously in marine environments characterised by salt spray, temperature variations, and constant mechanical movement. High-stress crane power cable applications demand exceptional corrosion resistance, mechanical durability, and electrical reliability to ensure uninterrupted cargo handling operations.

The (N)TSCGEWOEU-SR PLUS addresses the unique challenges of maritime crane applications through its weather-resistant construction and optimised cable guidance characteristics. The cable's ability to withstand repetitive flexing cycles whilst maintaining electrical performance ensures reliable operation in the demanding environment of modern port facilities.

Shipyard Flexible Reeling Power Solutions

Shipyard operations require flexible power distribution systems capable of supporting mobile equipment across large construction areas. The dynamic nature of shipyard work, combined with exposure to welding operations, heavy machinery, and marine environmental conditions, creates unique challenges for power cable systems.

Shipyard applications benefit from the (N)TSCGEWOEU-SR PLUS cable's combination of mechanical durability and electrical performance, enabling reliable power distribution to mobile cranes, welding equipment, and material handling systems throughout the shipbuilding process.

Stockyard Stacker/Reclaimer Cable Guidance Systems

Stockyard operations in facilities handling bulk materials such as coal, iron ore, and grain require sophisticated material handling equipment capable of precise positioning and high-volume throughput. Stacker/reclaimer systems operate continuously, creating demanding conditions for power supply cables that must accommodate complex movement patterns whilst maintaining electrical continuity.

The stockyard stacker/reclaimer cable applications benefit from the (N)TSCGEWOEU-SR PLUS design's optimised lay length and anti-twist protection, which minimise mechanical stress during complex positioning operations whilst ensuring reliable power transmission throughout extended operational cycles.

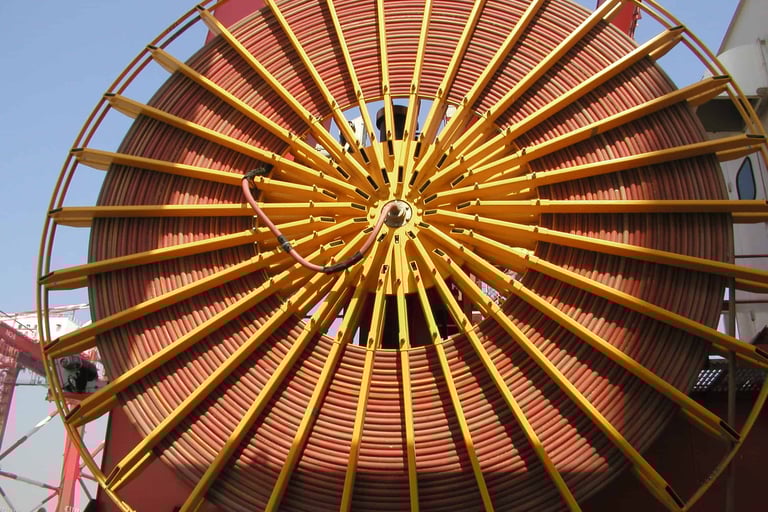

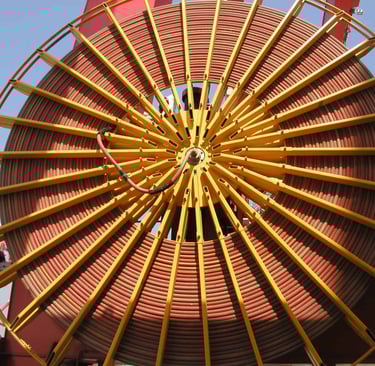

Multi-Level Reeling Deployments for Industrial Cranes

Advanced industrial crane systems often incorporate multi-level cable guidance solutions that enable complex three-dimensional movement patterns whilst maintaining organised cable management. These systems require cables capable of smooth operation through multiple guidance levels without mechanical binding or excessive stress concentration.

Multi-level cable guidance solutions utilise the (N)TSCGEWOEU-SR PLUS cable's optimised construction to achieve smooth operation through complex guidance systems, reducing maintenance requirements whilst improving operational reliability and equipment longevity.

Technical Specifications

Thermal Parameters and Operating Temperature Ranges

The thermal performance characteristics of the (N)TSCGEWOEU-SR PLUS enable reliable operation across an exceptional temperature range, accommodating the diverse environmental conditions encountered in industrial applications. For fixed installation applications, the cable operates reliably from –50 °C to 80 °C, whilst reeling operations are supported from –35 °C to 80 °C.

The maximum permissible conductor temperature of 90 °C ensures adequate current-carrying capacity whilst maintaining insulation integrity throughout the cable's operational life. Under short-circuit conditions, the cable can withstand conductor temperatures up to 250 °C, providing essential safety margins that prevent catastrophic failure during fault conditions.

Mechanical Performance Metrics

The mechanical performance specifications of the (N)TSCGEWOEU-SR PLUS reflect its design optimisation for extreme mechanical stress applications. The maximum tensile load capacity of 20 N/mm² provides substantial mechanical strength whilst maintaining the flexibility necessary for reeling operations.

Torsional stress resistance of ±25 °/m enables the cable to accommodate the twisting forces encountered during complex movement patterns without compromising electrical or mechanical integrity. The minimum bending radius, specified according to DIN VDE 0298-3, ensures that the cable can navigate tight guidance paths whilst maintaining its structural integrity.

The cable's capability to operate at reeling speeds up to 240 m/min addresses the high-speed requirements of modern industrial equipment whilst maintaining smooth operation and extended service life.

Electrical Ratings and Voltage Classes

The (N)TSCGEWOEU-SR PLUS is available in multiple voltage classes ranging from 3.6/6 kV to 18/30 kV, accommodating diverse industrial power system requirements. The cable's design enables operation at maximum permissible voltages up to 20.8/36 kV in AC systems and 27/54 kV in DC applications.

Current-carrying capacities are determined according to DIN VDE 0298-4 table 15, ensuring compliance with established engineering standards whilst providing adequate ampacity for demanding industrial applications. The cable's electrical performance characteristics maintain consistency across its operational temperature range, ensuring reliable power transmission under varying environmental conditions.

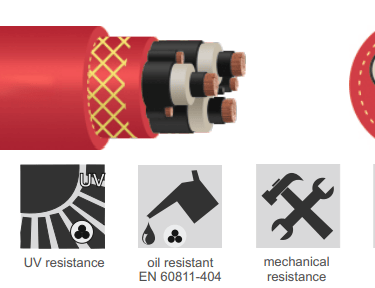

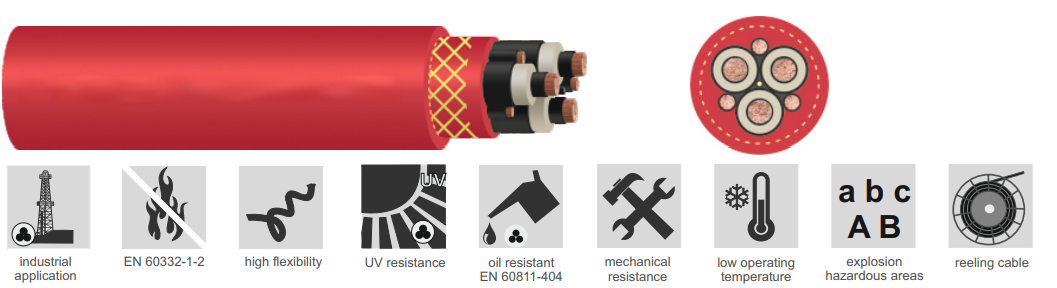

Construction Details for Extreme Durability

The (N)TSCGEWOEU-SR PLUS incorporates Class 5 finely stranded copper conductors that provide optimal flexibility whilst maintaining excellent electrical conductivity. The conductor construction, complying with IEC 60228 standards, ensures reliable electrical performance throughout the cable's mechanical flexing cycles.

The insulation system features EPR compound with improved electrical and mechanical characteristics, incorporating inner and outer semi-conductive stress control layers that ensure uniform electric field distribution and enhanced insulation performance. This sophisticated insulation system provides exceptional electrical reliability whilst maintaining mechanical flexibility.

The cable's reinforcement system includes a synthetic-thread anti-twist braid positioned between the inner and outer sheaths, providing crucial protection against mechanical stress concentration during complex movement patterns. The dual sheath construction utilises extra heavy-duty 5GM5 rubber compound, providing superior environmental protection and mechanical durability.

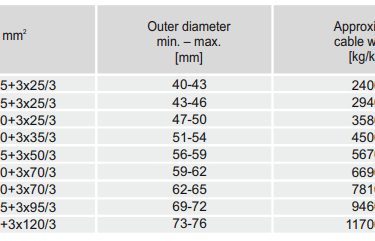

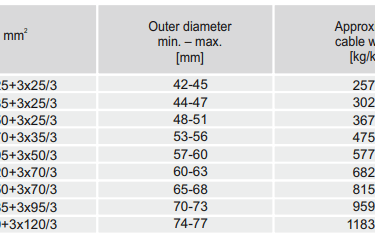

Feichun (N)TSCGEWOEU-SR PLUS 3.6/6 kV

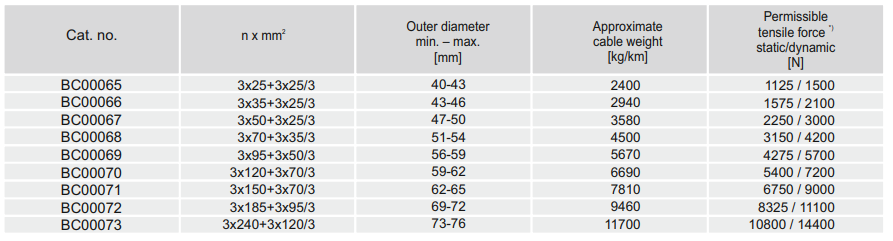

Feichun (N)TSCGEWOEU-SR PLUS 6/10 kV

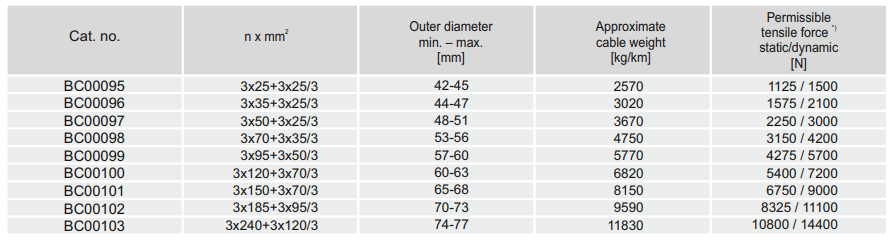

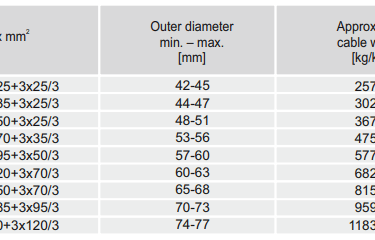

Feichun (N)TSCGEWOEU-SR PLUS 8.7/15 kV

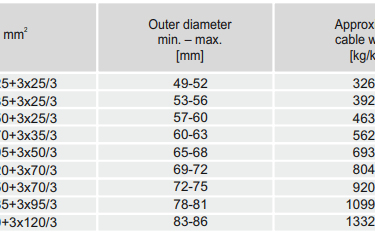

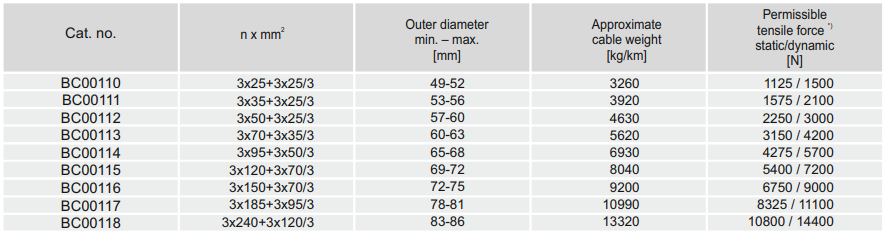

Feichun (N)TSCGEWOEU-SR PLUS 12/20 kV

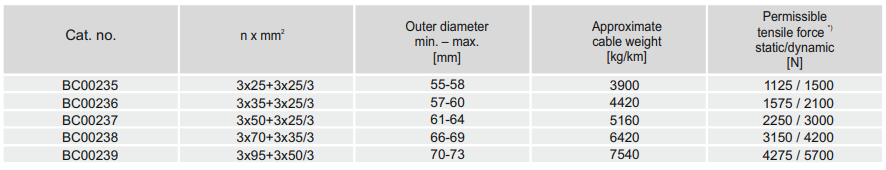

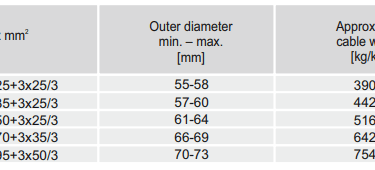

Feichun (N)TSCGEWOEU-SR PLUS 14/25 kV

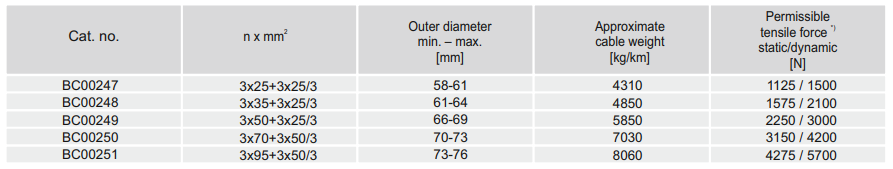

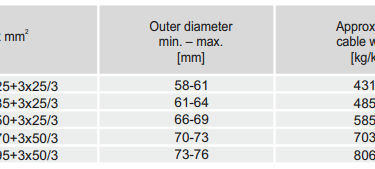

Feichun (N)TSCGEWOEU-SR PLUS 18/30 kV

Environmental and Chemical Resistance

Oil Resistance and Chemical Compatibility

The (N)TSCGEWOEU-SR PLUS demonstrates excellent resistance to industrial oils and lubricants, meeting DIN EN/IEC 60811-404 standards for oil resistance. This characteristic proves essential in industrial environments where equipment operates in proximity to hydraulic systems, gear lubricants, and other petroleum-based fluids.

The cable's chemical resistance extends beyond oil exposure to include resistance to common industrial chemicals, ensuring reliable performance in diverse industrial environments where chemical exposure represents a significant operational consideration.

Flame Behavior and Fire Safety

Fire safety performance, validated according to DIN EN/IEC 60332-1-2 standards, ensures controlled flame propagation characteristics that contribute to overall facility safety. The cable's flame behavior characteristics limit fire spread whilst maintaining structural integrity under fire exposure conditions.

Environmental Durability

The (N)TSCGEWOEU-SR PLUS provides unrestricted use in both indoor and outdoor environments, demonstrating exceptional resistance to ozone, ultraviolet radiation, and moisture exposure. This comprehensive environmental resistance ensures reliable performance across diverse installation environments without requiring special protective measures or installation considerations.

Model Variants and Sizing Options

The (N)TSCGEWOEU-SR PLUS is available in multiple core configurations ranging from 3×25 mm² to 3×240 mm² main conductors with appropriately sized ground conductor arrangements. The ground conductor cross-section is optimised for each main conductor size, ensuring adequate fault current carrying capacity whilst maintaining overall cable flexibility.

Outer diameter specifications range from 42 mm to 77 mm across the available size range, with cable weights varying from approximately 2,570 kg/km to 11,830 kg/km depending on conductor size and voltage class. Static and dynamic tensile force ratings range from 1,125/1,500 N to 10,800/14,400 N, providing substantial mechanical strength across all available configurations.

Benefits and Competitive Advantages

Optimised Cable Guidance and Reduced Downtime

The (N)TSCGEWOEU-SR PLUS design optimisation for cable guidance applications results in smoother operation, reduced mechanical stress, and extended service life. These characteristics translate directly to reduced maintenance requirements and decreased unplanned downtime, providing substantial operational benefits in demanding industrial applications.

Enhanced Safety Through Certification

CPR certification and compliance with rigorous European safety standards provide assurance of consistent quality and performance whilst meeting regulatory requirements for industrial installations. This certification facilitates project approval processes whilst ensuring long-term operational safety.

Low Maintenance Requirements

The cable's robust construction and superior environmental resistance characteristics minimise maintenance requirements throughout its operational life, reducing total cost of ownership whilst improving operational reliability.

Potential Issues and Solutions

Q: What happens if the cable experiences loads exceeding the specified tensile limits? A: Exceeding specified tensile limits can result in conductor stretching, insulation damage, or complete cable failure. The manufacturer offers consultation services for applications requiring higher loads, with potential custom solutions available to address specific operational requirements.

Q: How does extreme temperature cycling affect cable performance? A: The (N)TSCGEWOEU-SR PLUS is designed to accommodate the thermal expansion and contraction associated with temperature cycling within its specified operating range. Regular inspection of cable guidance systems and proper installation practices help ensure optimal performance under varying temperature conditions.

Q: What maintenance procedures are recommended for reeling applications? A: Regular visual inspection for signs of mechanical damage, monitoring of cable guidance system alignment, and periodic electrical testing are recommended. The cable's robust construction minimises maintenance requirements, but proactive maintenance practices extend service life and ensure reliable operation.

Conclusion and Call to Action

The (N)TSCGEWOEU-SR PLUS flexible reeling power cable represents the culmination of advanced cable technology development, specifically engineered for the most demanding industrial applications. Its combination of mechanical durability, electrical performance, and environmental resistance makes it the optimal choice for open-pit mining operations, harbor cranes, shipyards, and stockyard material handling systems.

For applications requiring reliable power transmission under extreme mechanical stress conditions, the (N)TSCGEWOEU-SR PLUS provides unmatched performance characteristics backed by comprehensive certification and proven field experience. Contact our technical specialists to discuss your specific application requirements and explore customisation options that optimise performance for your unique operational environment.
