High-Performance NTSCGEWOEU-W Power Supply Cable for Open-Pit Mining in Water Environments: Oil-Resistant, UV-Stable, Sewage-Proof Solution

Introduction

1.1 Overview of NTSCGEWOEU-W Power Supply Cable

The NTSCGEWOEU-W power supply cable represents a pinnacle of engineering excellence designed specifically for the most challenging industrial environments. This medium-voltage, flexible power supply cable is manufactured according to DIN VDE 0250-813 standards and incorporates advanced materials and construction techniques to deliver reliable power transmission in water-based applications. The cable's designation reflects its comprehensive design philosophy: "NTSCGEWOEU-W" encompasses its key characteristics including water resistance, flexibility, and environmental durability.

The NTSCGEWOEU-W 3-core tinned copper cable for dredgers exemplifies modern cable technology's response to increasingly demanding industrial applications. With voltage ratings spanning from 3.6/6 kV to 18/30 kV, this cable system addresses the full spectrum of medium-voltage requirements in marine and aquatic industrial settings. Its multi-layer construction incorporates specialised materials that work synergistically to provide exceptional performance under extreme conditions.

1.2 Importance of Specialised Cables in Open-Pit Mining Facilities

Open-pit mining operations present unique challenges that conventional power cables cannot adequately address. These environments combine multiple stress factors including constant water exposure, mechanical abrasion, chemical contamination, extreme temperature variations, and intense UV radiation. Traditional cables often fail prematurely in such conditions, leading to costly downtime, safety hazards, and operational inefficiencies.

The economic implications of cable failure in mining operations are substantial. When power supply to critical equipment such as dredgers, pumps, or processing machinery is interrupted, entire operations can halt, resulting in significant financial losses. Moreover, the safety considerations in mining environments demand cables that maintain their integrity even under extreme stress, preventing electrical hazards that could endanger personnel.

The NTSCGEWOEU-W power supply cable addresses these challenges through its specialised design, offering a solution that combines durability, safety, and performance. Its development represents a response to industry demands for cables that can operate reliably in environments where standard cables would quickly deteriorate.

1.3 Purpose and Scope of the Article

This comprehensive analysis examines the technical specifications, applications, and advantages of the NTSCGEWOEU-W power supply cable system. The article provides mining engineers, electrical contractors, and facility managers with detailed information necessary for making informed decisions about power cable selection for water-based mining operations. Through examination of its construction, performance characteristics, and real-world applications, readers will gain insight into how this cable technology addresses the specific challenges of open-pit mining in aquatic environments.

Key Features and Specifications

2.1 Conductor and Insulation Materials

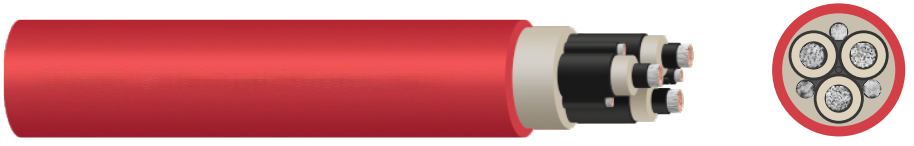

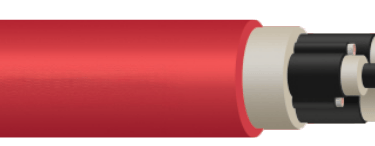

The foundation of the NTSCGEWOEU-W cable's performance lies in its sophisticated multi-layer construction, beginning with high-quality tinned copper class-5 strands manufactured according to DIN EN/IEC 60228 standards. The tinning process provides enhanced corrosion resistance, particularly important in marine environments where copper oxidation could compromise electrical performance and mechanical integrity.

The conductor stranding follows class 5 specifications, providing optimal flexibility whilst maintaining excellent electrical conductivity. This fine stranding is essential for applications requiring frequent flexing, such as connections to mobile mining equipment or floating platforms where constant movement occurs.

Surrounding the conductors, an inner semi-conductive stress control layer manages electrical field distribution, preventing corona discharge and extending cable life. This layer is followed by EPR (Ethylene Propylene Rubber) insulation based on DIN VDE 0207-20 specifications. EPR offers superior dielectric properties, excellent thermal stability up to 90°C continuous operation, and resistance to environmental degradation.

The outer semi-conductive insulation shield provides additional electrical field control whilst facilitating uniform stress distribution across the insulation system. This tri-layer insulation approach ensures consistent performance even under varying load conditions and environmental stresses.

The GM1b synthetic rubber inner sheath, manufactured according to DIN VDE 0207-21 standards, provides a critical barrier against water ingress whilst maintaining flexibility. This specialised compound is optimised for water applications, offering excellent resistance to hydrolysis and maintaining its properties even after prolonged water exposure.

The outer protection consists of a 5GM3 heavy-duty rubber compound sheath, also conforming to DIN VDE 0207-21. This robust outer layer provides mechanical protection against abrasion, impact, and cutting whilst maintaining the cable's flexibility. The distinctive red colouration aids in identification and includes inkjet marking for traceability.

2.2 Electrical Ratings

The NTSCGEWOEU-W system encompasses multiple voltage ratings to accommodate diverse application requirements. The 6/10 kV water-resistant mining power supply cable variant offers rated voltages from 3.6/6 kV to 18/30 kV, with maximum permissible operating voltages extending to 36 kV in AC systems and 54 kV in DC applications.

Current-carrying capacities vary according to conductor size and voltage rating. For instance, the 3x95+3x50/3 configuration at 3.6/6 kV provides 301 amperes continuous current capacity, whilst maintaining excellent electrical characteristics including inductance values of 0.29 mH/km and operating capacitance of 0.54 μF/km.

The cable's design accommodates maximum conductor temperatures of 90°C during normal operation, with short-circuit capability extending to 250°C for one-second duration. This thermal performance ensures reliable operation under varying load conditions whilst providing adequate overload capacity for motor starting and other transient conditions.

2.3 Mechanical and Thermal Performance

Environmental versatility is demonstrated through the cable's operational temperature range. For flexible operation, the cable maintains its performance characteristics from -25°C to 80°C, whilst fixed installations can operate from -40°C to 80°C. This wide temperature range ensures reliable operation across diverse climatic conditions and seasonal variations common in mining environments.

Mechanical performance parameters include maximum tensile loading of 15 N/mm² per conductor, ensuring adequate strength for installation and operational stresses. Torsional stress tolerance of ±25°/m accommodates the twisting forces encountered in mobile applications, whilst bending radius specifications according to DIN VDE 0298-3 ensure proper installation practices.

The cable's construction incorporates high-performance water blocking elements strategically positioned throughout the core arrangement. Power cores are laid over a semi-conductive centre element with the protective conductor split into three sections positioned in outer interstices, optimising both electrical and mechanical performance.

Environmental and Chemical Resistance

3.1 Water Resistance and Water-Blocking Elements

The NTSCGEWOEU-W design incorporates multiple barriers against water ingress, essential for reliable operation in submerged or partially submerged conditions. The primary water resistance derives from the specialised rubber compounds used in both inner and outer sheaths, formulated specifically for prolonged water exposure.

Advanced water-blocking technology utilises swellable materials that expand upon water contact, creating impermeable seals that prevent longitudinal water migration along the cable. This technology is particularly crucial in applications where cable terminations or splice points might be compromised, as it prevents water from travelling along the cable length and affecting distant sections.

The cable meets EN-50525-2-21 standards for water resistance, confirming its suitability for continuous submersion applications. This certification ensures that even under hydrostatic pressure conditions encountered in deep-water mining operations, the cable maintains its insulation integrity and electrical performance.

3.2 Oil, Ozone, and UV Resistance

Industrial mining environments expose cables to numerous chemical contaminants, making chemical resistance a critical performance parameter. The heavy-duty rubber-sheathed cable for salt and brackish water incorporates compounds that resist degradation from hydrocarbon exposure, meeting DIN EN/IEC 60811-404 oil resistance standards.

Ozone resistance is particularly important in outdoor applications where atmospheric ozone concentrations can accelerate rubber degradation. The outer sheath formulation provides excellent ozone resistance, maintaining flexibility and mechanical properties even after prolonged exposure to elevated ozone levels.

UV stability addresses the challenges of outdoor installations where solar radiation can degrade conventional rubber compounds. The specialised formulation maintains its properties under continuous UV exposure, preventing surface cracking and maintaining the cable's protective integrity throughout its service life.

3.3 Sewage, Salt, and Brackish Water Compatibility

Mining operations often involve processing of contaminated water, creating challenging chemical environments that standard cables cannot tolerate. The NTSCGEWOEU-W design specifically addresses these challenges through its compatibility with sewage, salt, and brackish water applications.

Salt water presents particular challenges due to its high ionic conductivity and corrosive properties. The cable's construction materials resist salt-induced degradation whilst maintaining their insulating properties even in high-salinity environments. This capability is essential for coastal mining operations or facilities processing seawater.

Brackish water applications, common in many mining locations, combine the challenges of both fresh and salt water exposure. The cable's formulation provides reliable performance across varying salinity levels, ensuring consistent operation regardless of water quality variations.

Applications in Open-Pit Mining and Marine Operations

4.1 Power Supply for Dredgers and Floating Docks

Dredging operations represent one of the most demanding applications for power cables, combining mechanical stress, water exposure, and operational flexibility requirements. The high-flexibility submersible cable for floating docks addresses these challenges through its specialised construction that accommodates the constant movement inherent in floating platform operations.

Dredgers require reliable power transmission for their excavation equipment, pumping systems, and positioning machinery. The cable's flexibility allows for the coiling and uncoiling necessary as dredging equipment moves throughout the work area. Its water resistance ensures continued operation even when cable sections are temporarily submerged during operations.

Floating dock applications present similar challenges, with additional considerations for tidal variations and wave action. The cable's mechanical properties and water resistance make it ideal for these applications, where conventional cables would quickly fail due to the combination of movement and water exposure.

4.2 Submersible Pumps and Underwater Equipment

Submersible pump installations in mining operations require cables capable of permanent underwater operation whilst maintaining electrical safety and performance. The oil, ozone, and UV-resistant open-pit mining cable provides the necessary protection for these critical applications.

Deep-well pumping systems, essential for dewatering operations, benefit from the cable's ability to operate under hydrostatic pressure whilst maintaining insulation integrity. The water-blocking technology prevents moisture ingress that could compromise pump motor windings or control systems.

Underwater equipment monitoring and control systems require reliable data and power transmission. The cable's stable electrical characteristics ensure consistent signal transmission whilst its environmental resistance maintains long-term reliability in submerged applications.

4.3 Fixed and Mobile Mining Machinery in Wet Environments

Open-pit mining machinery operates in environments where water exposure is inevitable, whether from precipitation, process water, or groundwater seepage. Fixed installations such as conveyor systems, crushers, and processing equipment require power cables that maintain their integrity despite constant moisture exposure.

Mobile equipment presents additional challenges due to the mechanical stresses imposed by movement over rough terrain. The cable's construction accommodates these stresses whilst providing the flexibility necessary for equipment mobility.

Installation and Handling Guidelines

5.1 Routing and Support Requirements

Proper installation practices are essential for achieving optimal performance from NTSCGEWOEU-W cables. Routing should consider both mechanical protection and accessibility for maintenance. In water-exposed applications, cable routes should minimise sharp bends and provide adequate support to prevent excessive mechanical stress.

Support systems must accommodate the cable's weight, which varies from 2,940 kg/km for smaller configurations to over 8,600 kg/km for larger variants. Proper support spacing prevents excessive sag that could lead to mechanical stress concentration at support points.

Cable protection in high-traffic areas requires consideration of the specific hazards present. In mining environments, this typically includes protection from heavy machinery, falling objects, and chemical exposure from process materials.

5.2 Bending and Flexing Best Practices

Adherence to minimum bending radius requirements according to DIN VDE 0298-3 ensures cable longevity and maintains electrical performance. During installation, temporary bending radii may be smaller than operational requirements, but care must be taken to avoid permanent deformation of the cable structure.

For applications involving regular flexing, such as mobile equipment connections, cable routing should incorporate adequate service loops and strain relief to prevent fatigue failures. The cable's torsional stress tolerance of ±25°/m should be considered in applications where twisting forces are present.

5.3 Short-Circuit and Overload Protection Considerations

Electrical protection systems must coordinate with the cable's thermal and electrical characteristics. Short-circuit current ratings, ranging from 3.0 kA to 18.3 kA depending on conductor size, establish the maximum fault current levels that the cable can withstand for one second without damage.

Overload protection should consider the cable's current-carrying capacity at the installation ambient temperature, applying appropriate derating factors according to DIN VDE 0298-4. In wet environments, additional derating may be necessary to account for reduced heat dissipation.

Comparison with Alternative Cable Types

6.1 Standard Rubber-Insulated Cables vs. NTSCGEWOEU-W

Conventional rubber-insulated cables lack the specialised construction necessary for reliable operation in water-based mining environments. Standard cables typically employ single-layer insulation systems without the stress control layers essential for medium-voltage applications in harsh environments.

The multi-layer approach of the NTSCGEWOEU-W system provides superior electrical performance through improved field distribution and reduced electrical stress concentrations. This results in extended service life and improved reliability compared to conventional designs.

Water resistance in standard cables is often limited to surface protection, whereas the NTSCGEWOEU-W incorporates water-blocking technology throughout its construction. This comprehensive approach prevents water ingress that could compromise electrical performance or mechanical integrity.

6.2 Benefits of Semi-Conductive Stress Control Layers

The incorporation of semi-conductive stress control layers represents a significant advancement over conventional cable designs. These layers provide uniform electrical field distribution, preventing the high-stress concentrations that can lead to insulation breakdown and premature failure.

In medium-voltage applications, these layers are essential for reliable operation, particularly in environments where contamination or moisture could exacerbate electrical stress concentrations. The NTSCGEWOEU-W design optimises these layers for water-based applications, ensuring consistent performance even when submerged.

6.3 Cost-Benefit Analysis for Extreme Environments

Whilst the initial cost of specialised cables like the NTSCGEWOEU-W may exceed that of conventional alternatives, the total cost of ownership typically favours the specialised design. Reduced failure rates, extended service life, and minimised downtime contribute to significant cost savings over the cable's operational life.

In critical applications where cable failure could result in substantial operational losses, the reliability benefits of specialised cables provide additional economic justification. The cost of emergency repairs or replacements in remote mining locations often exceeds the initial premium for high-quality cables.

Maintenance and Lifecycle

7.1 Periodic Inspection for Mechanical Damage

Regular visual inspection of cable installations should focus on identifying early signs of mechanical damage, including cuts, abrasions, or distortion of the outer sheath. In mining environments, particular attention should be paid to areas where the cable may contact sharp objects or experience repeated mechanical stress.

Inspection protocols should include verification of support systems, ensuring that cable supports remain secure and that adequate clearances are maintained. Any signs of support failure should be addressed immediately to prevent cable damage.

7.2 Testing for Insulation Integrity

Electrical testing according to DIN EN/IEC 60811-404 standards provides quantitative assessment of cable condition. Regular insulation resistance testing can identify deterioration before failure occurs, allowing for planned maintenance rather than emergency repairs.

Advanced testing techniques, including partial discharge testing and tan delta measurements, can provide early warning of insulation degradation in medium-voltage applications. These tests are particularly valuable for cables in critical applications where failure consequences are severe.

7.3 Expected Service Life and Replacement Criteria

Under normal operating conditions, properly installed NTSCGEWOEU-W cables can provide decades of reliable service. However, service life depends heavily on operating conditions, installation practices, and maintenance quality.

Replacement criteria should consider both electrical performance and mechanical condition. Cables showing signs of significant insulation degradation or mechanical damage should be replaced even if they continue to function, as failure in harsh mining environments can have severe consequences.

Conclusion

8.1 Summary of Key Advantages

The NTSCGEWOEU-W power supply cable represents a comprehensive solution for power transmission challenges in water-based mining environments. Its multi-layer construction, incorporating advanced materials and engineering principles, provides superior performance compared to conventional cable designs.

Key advantages include exceptional water resistance through integrated water-blocking technology, comprehensive environmental resistance including UV, ozone, and chemical protection, mechanical durability suitable for harsh mining applications, and electrical performance optimised for medium-voltage systems.

8.2 Recommendations for Selecting NTSCGEWOEU-W Cables

Selection of NTSCGEWOEU-W cables should consider the specific environmental challenges present in each application. For applications involving permanent submersion, the water-blocking technology and specialised sheath compounds provide essential protection.

In mobile applications, the cable's flexibility and mechanical strength offer significant advantages over rigid alternatives. The comprehensive environmental resistance makes these cables particularly suitable for outdoor installations in coastal or industrial environments.

8.3 Future Trends in Mining Power Cables

The evolution of mining power cables continues toward increasingly specialised designs that address specific environmental and operational challenges. Future developments may include enhanced smart cable technologies incorporating condition monitoring capabilities, improved materials offering even greater environmental resistance, and optimised designs for emerging mining technologies.

The NTSCGEWOEU-W system represents current best practice in mining cable technology, providing a foundation for future developments in this critical infrastructure component. As mining operations continue to push into more challenging environments, the demand for specialised cable solutions will continue to grow, driving further innovation in cable design and manufacturing.
