High-Performance NTSCGEWOEU-W.../3E Flexible Mining Power Supply Cable for Water-Based Open-Pit Operations

Introduction

Overview of NTSCGEWOEU-W.../3E Cable

The NTSCGEWOEU-W.../3E cable represents a pinnacle of engineering excellence in medium-voltage flexible mining power cables, specifically designed to meet the demanding requirements of water-based open-pit mining operations. This specialised power supply cable combines robust construction with exceptional flexibility, making it the ideal solution for challenging environments where traditional cables fail to deliver reliable performance.

Manufactured by Cable Factory BITNER under the BiTmining brand, the NTSCGEWOEU-W.../3E cable adheres to stringent DIN VDE 0250-813 standards, ensuring consistent quality and performance across diverse mining applications. The cable's innovative design incorporates advanced materials and construction techniques that enable it to withstand the harsh conditions typical of open-pit mining whilst maintaining electrical integrity and operational reliability.

Key Benefits of Flexible, Water-Resistant Mining Cables

Water-resistant mining cables offer critical advantages in open-pit operations where exposure to moisture, chemical contaminants, and mechanical stress is inevitable. The NTSCGEWOEU-W.../3E cable provides superior protection against water ingress, making it suitable for continuous operation in sewage, salt water, and brackish water environments. This water resistance prevents electrical failures, reduces maintenance costs, and ensures uninterrupted power supply to essential mining equipment.

The flexible nature of this medium-voltage flexible mining power cable allows for easy installation in confined spaces and enables the cable to accommodate dynamic movements of mobile equipment. This flexibility, combined with high tensile strength, makes it particularly valuable for applications involving floating platforms, submersible equipment, and machinery that experiences constant motion during operation.

Technical Specifications

Conductor Construction and Materials

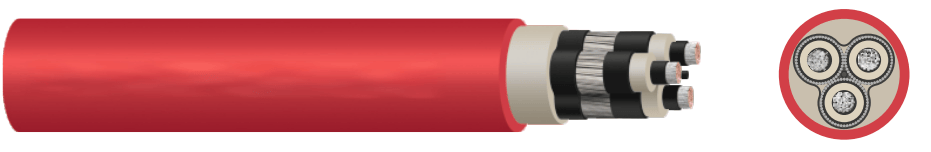

The NTSCGEWOEU-W.../3E cable features main cores constructed with tinned copper wires, finely stranded to Class 5 standards according to DIN EN/IEC 60228. This fine stranding provides exceptional flexibility whilst maintaining excellent electrical conductivity. The tinned copper construction offers superior corrosion resistance, particularly important in water-based applications where oxidation could compromise performance.

The insulation system employs a sophisticated triple-layer design comprising an inner semi-conductive stress control layer, an EPR compound type 3GI3 insulation core conforming to DIN VDE 0207-20, and an outer semi-conductive insulation shield layer. This configuration ensures optimal electrical field distribution, reducing stress concentrations that could lead to premature failure.

The protective conductor utilises tinned copper wire spinning designed according to DIN VDE 0250-1 standards, with the cross-section symmetrically split over the triple extruded core. This arrangement provides comprehensive earthing protection whilst maintaining the cable's flexibility characteristics.

Voltage Ratings and Thermal Performance

The DIN VDE 0250-813 mining cable is available in multiple voltage configurations to suit various mining applications:

• 3.6/6 kV rating with maximum permissible AC operating voltage of 6.9/12 kV

• 6/10 kV rating with maximum permissible AC operating voltage of 10.4/18 kV

• 8.7/15 kV rating with maximum permissible AC operating voltage of 13.9/24 kV

• 12/20 kV rating with maximum permissible AC operating voltage of 17.3/30 kV

• 14/25 kV rating with maximum permissible AC operating voltage of 20.8/36 kV

The cable demonstrates exceptional thermal performance with ambient temperature ratings of -40°C to 80°C for fixed installations and -25°C to 80°C for flexible operation. The maximum permissible conductor temperature reaches 90°C during normal operation, with short-circuit capability up to 250°C at the conductor. These thermal characteristics ensure reliable operation across the extreme temperature variations encountered in open-pit mining environments.

Mechanical Characteristics

The water-resistant mining cable exhibits outstanding mechanical properties essential for demanding mining applications. Maximum tensile load per conductor reaches 15 N/mm², providing excellent resistance to pulling forces during installation and operation. The cable accommodates torsional stresses of ±25°/m, allowing for significant twisting without damage to internal components.

Bending radius specifications conform to DIN VDE 0298-3 standards, ensuring the cable can navigate tight installation routes without compromising electrical or mechanical integrity. These mechanical characteristics are particularly crucial for applications involving mobile equipment where the cable experiences continuous flexing and movement.

Current-carrying capacities vary according to voltage rating and conductor cross-section, with values calculated according to DIN VDE 0298-4 standards. For example, the 6/10 kV variant delivers current-carrying capacities ranging from 131A to 352A depending on conductor configuration, whilst maintaining permissible short-circuit currents from 3.0 kA to 14.6 kA.

Chemical and Environmental Resistance

The NTSCGEWOEU-W.../3E cable demonstrates exceptional resistance to chemical and environmental hazards commonly encountered in mining operations. Oil resistance meets DIN EN/IEC 60811-404 standards, ensuring reliable operation in environments where hydraulic fluids, lubricants, and petroleum products are present.

The cable exhibits unrestricted outdoor and indoor use capabilities, with comprehensive resistance to ozone, UV radiation, and moisture. This environmental resistance eliminates the need for additional protective measures in most open-pit applications, reducing installation complexity and ongoing maintenance requirements.

Water resistance certification to EN-50525-2-21 standards confirms the cable's suitability for continuous operation in wet conditions, including complete submersion in sewage, salt water, and brackish water environments. This capability is essential for mining operations where dewatering activities and proximity to water bodies create challenging operating conditions.

Certification and Compliance

DIN VDE 0250-813 and VDE 0298-4 Standards

Compliance with DIN VDE 0250-813 standards ensures the NTSCGEWOEU-W.../3E cable meets rigorous requirements for medium-voltage power cables in mining applications. This standard addresses specific challenges associated with mining environments, including mechanical stress, chemical exposure, and temperature extremes.

The cable's current-carrying capacity calculations according to DIN VDE 0298-4 provide conservative ratings that account for derating factors specific to mining installations. These calculations ensure safe operation under varying ambient conditions and installation configurations commonly encountered in open-pit mining operations.

CPR 305/2011 and RoHS 2015/863/EU

Construction Products Regulation (CPR) 305/2011 compliance demonstrates the cable's suitability for permanent installation in construction works, with appropriate fire performance characteristics. The cable's behaviour in case of fire meets DIN EN/IEC 60332-1-2 requirements, providing controlled flame propagation characteristics essential for safe operation in underground or enclosed mining areas.

RoHS 2015/863/EU compliance ensures the cable's construction utilises materials that minimise environmental impact whilst maintaining performance standards. This environmental consciousness aligns with modern mining operations' sustainability objectives and regulatory requirements.

Application Scenarios

Connection to Dredgers and Floating Docks

The NTSCGEWOEU-W.../3E cable for open-pit mining water operation excels in applications involving dredging equipment and floating dock installations. These applications present unique challenges including constant movement, water exposure, and mechanical stress from handling equipment. The cable's flexible construction accommodates the dynamic nature of floating platforms whilst maintaining electrical integrity.

For dredging operations, the cable must withstand continuous submersion whilst delivering reliable power to high-capacity pumps and processing equipment. The cable's water resistance rating ensures long-term performance even when exposed to contaminated water containing sediments, chemicals, and debris commonly encountered in mining dredging operations.

Powering Submersible Pumps in Open-Pit Mines

Open-pit mining operations frequently require powerful dewatering systems to maintain dry working conditions. The DIN VDE 0250-813 compliant submersible pump power cable provides reliable power transmission to deep-well pumps and sump pumps operating in challenging environments.

The cable's high mechanical stress resistance ensures reliable operation despite the continuous vibration and movement associated with high-capacity pumping systems. Its chemical resistance properties protect against corrosive substances often present in mine water, including acids, salts, and industrial chemicals used in processing operations.

Operation in Sewage, Salt, and Brackish Water Environments

Mining operations often encounter diverse water conditions ranging from relatively clean groundwater to highly contaminated industrial effluent. The high mechanical stress flexible power cable in sewage and saltwater demonstrates exceptional performance across this spectrum of challenging conditions.

Salt water environments present particular challenges due to the corrosive nature of dissolved salts and the increased electrical conductivity that can lead to insulation breakdown. The cable's advanced insulation system and protective conductor design provide comprehensive protection against these hazards, ensuring safe and reliable operation even in high-salinity environments.

Installation and Handling Guidelines

Fixed vs. Flexible Operation Temperature Ranges

Proper installation requires careful consideration of operating temperature ranges specific to the application type. Fixed installations can operate across a broader temperature range (-40°C to 80°C) compared to flexible applications (-25°C to 80°C). This distinction reflects the additional thermal stress imposed by continuous flexing in mobile applications.

Installation teams must account for thermal expansion and contraction when routing cables in temperature-variable environments. Adequate service loops and expansion joints prevent excessive stress during thermal cycling, extending cable service life and maintaining reliability.

Short-Circuit and Overload Considerations

The cable's short-circuit withstand capability varies according to conductor cross-section and duration, with ratings specified for one-second fault conditions. Installation designs must incorporate appropriate protection systems to ensure fault currents do not exceed these ratings, preventing cable damage and maintaining system safety.

Overload protection must consider the cable's current-carrying capacity at the specific installation temperature and routing configuration. Derating factors according to DIN VDE 0298-4 may apply depending on installation conditions, including ambient temperature, grouping with other cables, and burial depth in underground installations.

Proper Cable Routing and Protection in Aggressive Environments

Effective cable routing in aggressive mining environments requires careful attention to mechanical protection and environmental shielding. The flexible medium-voltage cable for floating dock power supply benefits from protective conduits or cable trays in areas where mechanical damage is likely.

Installation routes should minimise exposure to sharp edges, abrasive surfaces, and chemical spills whilst maintaining adequate ventilation for thermal management. Regular inspection points along cable routes enable proactive identification of potential issues before they compromise system reliability.

Conclusion

Inspection Procedures for Water-Exposed Cables

Regular inspection of water-exposed cables forms a critical component of preventive maintenance programs. Visual inspection should focus on outer sheath integrity, connector condition, and signs of mechanical damage or chemical attack. Electrical testing including insulation resistance measurements and partial discharge analysis can identify developing problems before they result in failures.

Inspection intervals should reflect the severity of operating conditions, with more frequent checks required for cables operating in highly contaminated or mechanically demanding environments. Documentation of inspection results enables trend analysis and predictive maintenance scheduling.

Summary of Advantages

The NTSCGEWOEU-W.../3E cable delivers comprehensive advantages for water-based mining operations:

• Superior water resistance enabling operation in sewage, salt, and brackish water

• High mechanical strength withstanding tensile loads up to 15 N/mm²

• Flexible construction accommodating dynamic applications

• Multiple voltage ratings from 3.6/6 kV to 14/25 kV

• Comprehensive chemical resistance including oil and UV protection

• Full compliance with international standards including DIN VDE 0250-813

• Proven reliability in harsh mining environments

Why Choose NTSCGEWOEU-W.../3E for Mining Water-Based Power Delivery

The NTSCGEWOEU-W.../3E represents the optimal solution for mining operations requiring reliable power delivery in water-exposed environments. Its combination of electrical performance, mechanical durability, and environmental resistance provides unmatched value for critical mining applications.

The cable's comprehensive certification and compliance with international standards ensures compatibility with modern mining electrical systems whilst meeting stringent safety requirements. Its proven track record in demanding applications combined with comprehensive warranty coverage provides confidence for long-term mining investments.

Frequently Asked Questions

Q: What makes the NTSCGEWOEU-W.../3E cable suitable for saltwater environments?

A: The cable features advanced insulation systems with triple-layer construction and tinned copper conductors that resist corrosion. Its water resistance certification to EN-50525-2-21 specifically covers operation in salt water, whilst the chemical resistance properties protect against the corrosive effects of dissolved salts.

Q: How does the cable handle continuous flexing in mobile mining applications?

A: The finely stranded Class 5 copper conductors and flexible compound materials enable the cable to withstand torsional stresses of ±25°/m whilst maintaining electrical integrity. The protective conductor design accommodates movement without compromising earthing protection.

Q: What voltage drop considerations apply to long cable runs in mining applications?

A: Conductor resistance values are specified at 20°C for each cable configuration, enabling accurate voltage drop calculations. The low conductor resistance combined with optimised inductance and capacitance values minimise voltage drop in extended installations typical of open-pit mining operations.

Q: How should the cable be stored before installation in mining projects?

A: Store cables in dry, ventilated conditions away from direct sunlight and chemical exposure. Maintain storage temperature within the specified range and protect cable ends from moisture ingress. Proper storage preserves the cable's performance characteristics and extends service life.

Q: What are the key maintenance requirements for water-exposed mining cables?

A: Regular visual inspection for sheath damage, electrical testing of insulation resistance, and monitoring of connection integrity form the core maintenance requirements. Inspection frequency should increase in highly contaminated environments, with particular attention to mechanical protection systems and earthing continuity.
