High-Performance PUR SHD GC 8 KV Cable for Excavators: Halogen-Free, Abrasion-Resistant Power & Connection Cable for Large Material Handling Machines

Introduction

Modern opencast mining operations demand electrical infrastructure capable of withstanding the most punishing environmental and mechanical conditions imaginable. Excavators, draglines, and large material handling machines operate continuously in environments characterized by extreme abrasion, chemical exposure, temperature fluctuations, and constant mechanical stress. The electrical cables powering these critical machines must deliver reliable performance while enduring trailing operations across rough terrain, exposure to oils and fuels, UV radiation, and the physical punishment of daily heavy-duty use.

The PUR SHD GC 8 KV cable represents a specialized solution engineered specifically for these demanding applications. This medium voltage flexible trailing cable combines halogen-free construction with exceptional abrasion resistance, making it ideally suited as both a power supply cable for excavators in opencast mines and a connection cable for large material handling machines. Its design addresses the unique challenges of mining environments where cable failure can result in costly operational downtime, safety hazards, and expensive emergency repairs.

Overview of PUR SHD GC 8 KV Cable

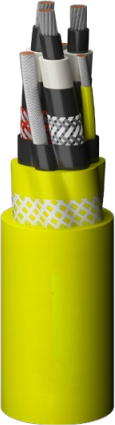

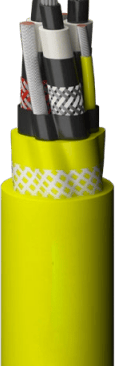

The PUR SHD GC 8 KV cable is a flexible trailing cable with copper core shield, specifically designed as a power supply or connection cable for large material handling machines operating in opencast mines. The designation "SHD GC" refers to its shielded heavy-duty construction with ground check capability, a critical safety feature that enables continuous monitoring of grounding integrity during operation.

This cable configuration features individual concentric mixed screens of tinned copper and colored polyester yarn on each power conductor, providing electromagnetic shielding while maintaining flexibility. The ground check conductor, distinguished by yellow rubber insulation, allows operators to verify proper grounding without interrupting operations—a vital safety feature when working with medium voltage equipment in mining environments.

The importance of durable cables in heavy-duty mining equipment cannot be overstated. Mining operations typically represent significant capital investments, and any disruption to excavator or material handling equipment directly impacts productivity and profitability. A cable failure on a large excavator can halt operations for hours or even days, depending on the extent of damage and availability of replacement components. Beyond the immediate financial impact, cable failures in mining equipment pose serious safety risks to personnel working in proximity to energized equipment, particularly in underground or confined opencast environments.

Key Features of PUR SHD GC 8 KV Cable

Halogen-Free Formulation

The halogen-free construction of the PUR SHD GC 8 KV cable delivers significant safety advantages over conventional chlorinated rubber compounds. In the event of fire or thermal degradation, halogen-free materials do not release toxic or corrosive gases that can endanger personnel and damage sensitive electronic equipment. This characteristic is particularly important in mining environments where ventilation may be limited and evacuation routes constrained.

The polyurethane outer sheath provides exceptional chemical resistance to oils, fuels, acids, and bases commonly encountered in mining operations. Unlike traditional rubber compounds that may degrade when exposed to diesel fuel, hydraulic oils, or industrial chemicals, the PUR formulation maintains its mechanical properties and protective characteristics even with prolonged exposure.

Superior Abrasion Resistance

The polyurethane outer jacket of this cable exhibits remarkable abrasion resistance, essential for trailing applications where the cable regularly contacts rocks, metal surfaces, and abrasive soils. The material's tough, elastic properties allow it to withstand the scraping, dragging, and impact forces that would quickly destroy cables with conventional rubber or PVC sheaths.

This abrasion resistance translates directly to extended cable service life, reduced replacement frequency, and lower total cost of ownership. Field experience demonstrates that properly selected abrasion-resistant cables can last three to five times longer than standard constructions in severe trailing applications.

High Mechanical Stress Tolerance

The PUR SHD GC 8 KV cable is engineered to withstand torsional stress of ±25 degrees per meter and maintains a permanent tensile strength of 20 N/mm² under static loading. These specifications reflect the cable's ability to handle the twisting forces and tensile loads encountered during excavator operations, where the cable may be subject to complex mechanical stresses as the equipment maneuvers.

The flexible construction allows for bending radii as tight as 10 times the cable diameter in flexible operation while maintaining electrical and mechanical integrity. This flexibility is crucial for routing cables on excavators and material handling equipment where space constraints and articulation requirements demand cables that can bend repeatedly without failure.

Applications in Opencast Mines

Power Supply Cable for Excavators in Opencast Mines

Large excavators in opencast mining operations require reliable medium voltage power supply to drive their electric motors, control systems, and auxiliary equipment. The PUR SHD GC 8 KV cable serves as the critical link between the mine's electrical distribution system and the excavator, delivering power while accommodating the equipment's movement throughout the working area.

In trailing applications, the cable must follow the excavator as it repositions, often being dragged across rough surfaces, over rocks, and through areas contaminated with oils, fuels, and other chemicals. The cable's construction specifically addresses these challenges through its robust mechanical design, chemical-resistant materials, and flexible conductors that prevent fatigue failure.

Connection Cable for Large Material Handling Machines

Beyond excavators, the PUR SHD GC 8 KV cable finds application in various large material handling machines including mobile crushers, stackers, reclaimers, and conveyor systems. These machines often operate in zones where fixed cable installations are impractical, requiring flexible trailing cables that can accommodate equipment movement while maintaining continuous power delivery.

The ground check feature becomes particularly valuable in these applications, allowing maintenance personnel to verify grounding integrity without de-energizing equipment or requiring complex testing procedures. This capability supports predictive maintenance programs and helps identify potential safety issues before they result in equipment damage or personnel injury.

Performance in Trailing Operations Under Extreme Conditions

Opencast mining environments subject electrical cables to conditions that would quickly destroy equipment designed for lighter-duty applications. Temperature extremes ranging from -30°C to +60°C in flexible installation test the cable's materials and construction. The PUR SHD GC 8 KV cable maintains performance across this temperature range, with conductor temperatures rated up to 90°C during normal operation.

The cable's resistance to UV radiation, ozone, and weathering ensures that outdoor exposure does not degrade the protective jacket. This environmental stability is essential for trailing applications where the cable may lie exposed between excavator positions or during equipment idle periods.

Technical Specifications

Voltage Rating: 8 KV

The 8 kV voltage rating (with maximum operating voltage Um of 8 kV and test voltage of 23 kV) positions this cable for medium voltage distribution systems common in large mining operations. This voltage level provides efficient power transmission over the distances typical in opencast mines while maintaining manageable cable sizes and weights.

The three main conductors feature individual concentric screens, with each power conductor surrounded by a mixed screen of tinned copper and colored polyester yarn. This screening arrangement provides electromagnetic shielding, reduces interference with communication systems, and allows for individual phase monitoring when required.

Conductor and Insulation Materials

The cable utilizes finely stranded tinned copper conductors that provide excellent flexibility and resistance to corrosion. Tinning the copper strands prevents oxidation that could increase resistance and generate heat at connections. The ground check conductor features yellow rubber insulation for easy identification, while the two ground conductors are also constructed from finely stranded tinned copper.

The insulation system consists of semi-conductive EPR (ethylene propylene rubber) inner layers, EPR rubber insulation using specialized compounds optimized for electrical and mechanical performance, and semi-conductive NBR easy-strip outer layers. This multi-layer insulation design provides excellent dielectric properties, stress control, and ease of termination.

The inner sheath consists of polyurethane that provides mechanical protection and chemical resistance, while a polyester braiding reinforcement adds tensile strength. The outer polyurethane sheath completes the construction, delivering the abrasion resistance, chemical resistance, and environmental protection essential for mining applications.

Temperature Range and Flex Fatigue Performance

The PUR SHD GC 8 KV cable operates reliably across ambient temperatures from -40°C to +80°C in fixed installations and -30°C to +60°C in flexible installations. The maximum conductor temperature of 90°C during normal operation provides substantial thermal margin, while the short circuit rating of 250°C ensures the cable can withstand fault conditions without immediate failure.

Flex fatigue performance is critical for trailing applications where the cable experiences repeated bending cycles. The cable's construction, with its finely stranded conductors and flexible insulation materials, resists the fatigue failures that plague cables with rigid conductors or inflexible insulation systems. Proper installation with appropriate bending radii (minimum 6 times cable diameter for fixed installation, 10 times for flexible operation) ensures long service life even under continuous flexing.

Advantages Over Conventional Cables

Enhanced Safety with Halogen-Free Materials

Conventional mining cables often utilize chlorinated compounds that, while providing good mechanical properties, release toxic and corrosive gases when heated or burned. These halogen-containing gases pose serious health risks to personnel and can cause extensive damage to electronic equipment and metal structures through acid formation.

The halogen-free PUR formulation eliminates these hazards. In fire situations, the cable produces minimal smoke and no corrosive or toxic halogen gases, supporting safer evacuation and reducing secondary damage. This safety advantage makes the PUR SHD GC 8 KV cable particularly appropriate for applications where personnel work in proximity to the cable or where ventilation may be limited.

Reduced Maintenance Thanks to Abrasion-Resistant Jacket

The exceptional abrasion resistance of the polyurethane jacket significantly reduces maintenance requirements compared to conventional rubber-sheathed cables. Where traditional cables might require frequent inspection and replacement due to jacket wear, the PUR construction maintains its protective integrity far longer.

This durability translates to lower lifetime costs through reduced replacement frequency, fewer emergency repairs, and less operational disruption. Maintenance personnel can focus on productive activities rather than reactive cable repairs, and operations avoid the productivity losses associated with equipment downtime.

Longer Service Life Under Chaffing and Mechanical Stress

Field experience consistently demonstrates that properly applied PUR cables outlast conventional constructions by substantial margins in abrasive trailing applications. The combination of abrasion resistance, chemical resistance, and mechanical strength allows these cables to maintain functionality where other designs fail prematurely.

The flame retardant properties meeting EN/IEC 60332-1-2 standards provide additional safety margins, while the oil resistance, ozone resistance, and UV resistance ensure environmental factors do not compromise cable performance over time.

Installation and Maintenance Guidelines

Best Practices for Cable Routing in Mining Equipment

Proper cable routing is essential to maximize service life and minimize failure risk. The cable should follow paths that minimize sharp bends, avoid pinch points, and keep the cable clear of moving mechanical components. Support the cable at appropriate intervals to prevent excessive tensile stress, using cable supports that allow the cable to move freely without binding.

Install the cable with bending radii no less than the specified minimums: six times cable diameter for fixed sections and ten times cable diameter for flexible sections. Where the cable must change direction repeatedly (S-type directional changes), maintain a minimum distance of 20 times the cable diameter between bend points to prevent premature fatigue failure.

Protect the cable from sharp edges, hot surfaces, and areas where heavy equipment might drive over or impact the cable. Where exposure to particularly severe abrasion is unavoidable, consider additional mechanical protection such as cable track systems, protective conduit, or sacrificial outer jackets.

Inspection Intervals and Wear Indicators

Establish a regular inspection schedule based on the severity of operating conditions and equipment utilization. For heavy-duty trailing applications, monthly visual inspections should examine the cable for signs of jacket damage, exposed reinforcement, conductor damage, or other anomalies. Pay particular attention to areas subject to repeated flexing, points where the cable contacts equipment or ground surfaces, and termination areas.

Look for these wear indicators that suggest the cable requires attention: visible abrasion of the outer jacket, cuts or gouges penetrating the outer sheath, discoloration indicating heat damage or chemical attack, stiffness or cracking suggesting material degradation, and any deformation or flattening that might indicate crushing damage.

Document inspection findings and track damage progression over time. This data helps optimize replacement timing and may reveal operational issues that accelerate cable wear, such as improper routing, inadequate support, or equipment problems.

Repair and Replacement Procedures

While the PUR SHD GC 8 KV cable delivers exceptional durability, damage is sometimes unavoidable in harsh mining environments. Minor jacket damage that does not compromise the cable's electrical or mechanical integrity may be repairable using appropriate materials and procedures. However, any damage affecting conductors, insulation, or shielding typically requires cable replacement.

When replacing damaged sections, ensure replacement cable matches the original specifications and properly terminate connections using appropriate methods such as cast-resin, hybrid, or vulcanization techniques. Never attempt field repairs on medium voltage cables without proper training, tools, and materials—improper repairs can create serious safety hazards.

Case Study: Excavator Power Cable Performance

Field Data: Durability in Open-Cast Mining

A large opencast coal mining operation replaced conventional rubber-sheathed trailing cables on their fleet of electric excavators with PUR SHD GC 8 KV cables. Operating conditions included continuous trailing across rocky surfaces, exposure to diesel fuel and hydraulic oil, temperature variations from -25°C to +45°C, and intensive daily use averaging 20 hours per day.

Over an 18-month evaluation period, the PUR cables demonstrated substantially superior performance. Where conventional cables typically required replacement every 6-8 months due to jacket failure and insulation exposure, the PUR cables showed minimal wear after 18 months of service. Visual inspection revealed surface abrasion of the outer jacket but no penetration to underlying layers or compromise of electrical integrity.

The ground check feature proved particularly valuable, allowing maintenance personnel to verify grounding integrity during routine inspections without interrupting operations. This capability supported the mine's predictive maintenance program and provided early warning of potential issues before they resulted in equipment failure.

Comparative Analysis vs. Standard Power Cables

Comparing the PUR SHD GC 8 KV cable against standard chloroprene-sheathed cables revealed significant advantages across multiple performance criteria. Abrasion resistance testing showed the PUR formulation withstood 3.5 times more abrasive cycles before showing equivalent damage. Chemical resistance testing with diesel fuel, hydraulic oil, and common mining chemicals demonstrated superior resistance with minimal mechanical property changes after prolonged exposure.

The halogen-free construction eliminated concerns about toxic gas generation, particularly important given the mine's increasing focus on personnel safety and environmental responsibility. The combination of superior durability and enhanced safety characteristics justified the modest premium in initial cable cost, with total cost of ownership calculations showing substantial savings through extended service life and reduced downtime.

Common Issues and Solutions

What causes premature cable failure in excavator trailing applications?

Premature cable failure typically results from one or more of several factors: inadequate abrasion resistance for the application severity, improper cable routing that creates excessive bending stress or exposes the cable to crushing hazards, insufficient cable support leading to excessive tensile stress, chemical incompatibility between the cable jacket and contaminants present in the operating environment, and operation beyond the cable's rated temperature range. The PUR SHD GC 8 KV cable addresses these failure modes through its robust construction, but proper installation and adherence to operating parameters remain essential.

How does the ground check conductor improve safety in mining applications?

The ground check conductor allows continuous or periodic verification of grounding system integrity without de-energizing equipment. By monitoring the ground check conductor, operators can detect ground faults, partial ground failures, or degradation of protective earth connections before they result in equipment damage or create hazards to personnel. This capability is particularly valuable in mining environments where ground conditions may change, connections may corrode, and equipment operates in areas where proper grounding is essential for personnel safety.

What maintenance practices extend cable service life in harsh environments?

Regular inspection to identify damage before it progresses, proper cable support and routing that minimizes mechanical stress, keeping cables away from sharp edges and hot surfaces, prompt repair or replacement of damaged sections before minor damage becomes major failure, maintaining clean cable surfaces free from accumulated debris that might trap moisture or chemicals, and documenting cable condition over time to identify wear patterns and optimize replacement timing. The exceptional durability of the PUR SHD GC 8 KV cable reduces maintenance burden but does not eliminate the need for proper care.

Can this cable be repaired in the field, or does damage require complete replacement?

Medium voltage cables require specialized expertise, materials, and procedures for safe repair. While minor surface damage to the outer jacket may be repairable using appropriate materials and techniques, any damage affecting conductors, insulation, or shielding typically necessitates cable replacement. Field repairs on medium voltage cables should only be attempted by trained personnel using proper materials and following established procedures. Improper repairs can create serious safety hazards including shock risk, fire hazards, and ground fault conditions.

Conclusion

The PUR SHD GC 8 KV cable represents a significant advancement in electrical infrastructure for heavy-duty mining operations. Its halogen-free polyurethane construction delivers exceptional abrasion resistance, chemical resistance, and environmental durability essential for excavator and material handling equipment in opencast mines. The integrated ground check capability enhances safety while supporting predictive maintenance programs.

For operations seeking to optimize reliability, reduce maintenance costs, and enhance safety in large material handling machines, the PUR SHD GC 8 KV cable offers compelling advantages over conventional trailing cables. Its superior performance in demanding trailing applications, combined with halogen-free safety benefits and extended service life, make it an excellent choice for powering excavators and other critical mining equipment.

When selecting cables for excavator power supply or connection applications in opencast mines, prioritize constructions specifically engineered for the application's unique demands. The PUR SHD GC 8 KV cable's proven performance in severe trailing operations, robust mechanical design, and comprehensive safety features position it as a premium solution for operations where cable reliability directly impacts productivity and safety. Proper selection, installation, and maintenance of this specialized cable design will deliver years of reliable service in even the most challenging mining environments.
