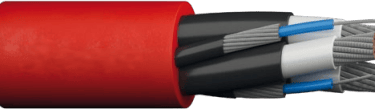

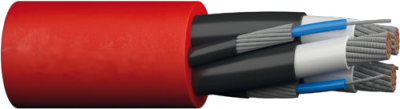

High-Performance VO NTSKCGEWOEU 1.8/3 kV Underground Mining Power Supply Connection Cable for Coal Cutting Machines

Underground mining operations require robust electrical infrastructure capable of withstanding extreme environmental conditions while maintaining consistent power delivery to critical equipment. The VO NTSKCGEWOEU 1.8/3 kV cable represents a specialized solution designed specifically for power supply connection cable for mobile equipment in underground mining applications, particularly coal cutting machines and roadheaders operating in challenging subterranean environments.

This underground mining power supply cable features a voltage rating of 1.8/3 kV, making it suitable for medium-voltage applications where reliable power transmission is essential for operational safety and efficiency. The VO NTSKCGEWOEU 1.8/3 kV cable incorporates advanced engineering principles to address the unique demands of underground mining, including resistance to mechanical stress, chemical exposure, and extreme temperature variations.

The cable's designation reflects its specialized construction for chain operation applications, where it functions as a cable protection chain traction cable for coal cutting machines. This design philosophy ensures optimal performance when integrated with cable handler systems that protect and manage cable movement as mining equipment traverses underground workings.

Introduction to VO NTSKCGEWOEU 1.8/3 kV Cable

Technical Specifications

Voltage Rating and Electrical Properties

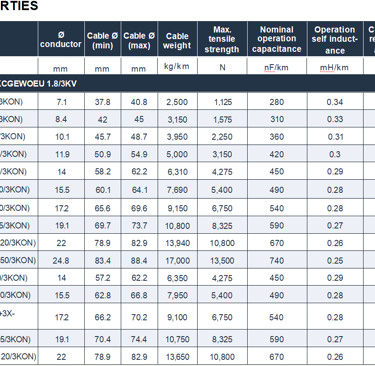

The VO NTSKCGEWOEU 1.8/3 kV cable operates at a rated voltage of 1.8/3 kV with a maximum voltage rating (Um) of 3.6 kV. The test voltage specification of 6 kV ensures reliable insulation performance under normal operating conditions and transient voltage events. Control cores are tested at 2 kV AC, providing additional safety margins for integrated monitoring and control circuits.

The cable maintains a nominal voltage of 3,000 V during operation, suitable for medium-voltage mining applications requiring substantial power transmission capacity. Operating capacitance ranges from 280 to 670 nF/km depending on conductor cross-sectional area, while self-inductance varies from 0.25 to 0.34 mH/km, contributing to optimal electrical performance characteristics.

Conductor Configuration and Materials

Available conductor cross-sectional areas range from 25 mm² to 300 mm², accommodating various power requirements for different mining equipment configurations. The conductor utilizes finely stranded copper with tin coating, classified as FS (fine stranded), providing enhanced flexibility and corrosion resistance essential for underground applications.

Current carrying capacity varies from 131 A for the 25 mm² configuration to 620 A for the 300 mm² variant, ensuring adequate power transmission for high-demand coal cutting operations. Conductor resistance at 20°C ranges from 0.0654 to 0.795 Ω/km, minimizing power losses during transmission.

Insulation System and Construction

The cable employs EPR (ethylene propylene rubber) insulation using specialized compound 3GI3, providing superior electrical insulation properties and mechanical durability. The insulation system incorporates a semi-conductive NBR (nitrile butadiene rubber) layer with easy-strip characteristics, facilitating field termination and maintenance procedures.

Core arrangement features three main power conductors with integrated double concentric control/protective earth conductor elements positioned in outer interstices. This configuration ensures reliable earth fault protection while maintaining compact overall cable dimensions.

Application in Underground Mining

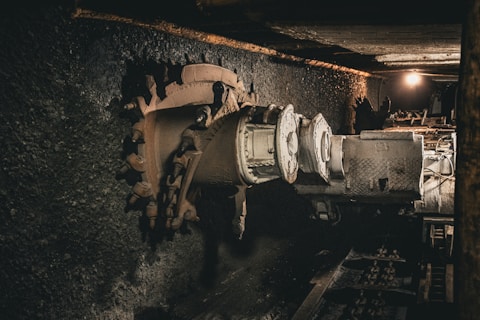

Coal Cutting Machine Integration

The VO NTSKCGEWOEU 1.8/3 kV cable serves as the primary power supply connection cable for mobile equipment in underground mining, specifically designed for coal cutting machines requiring reliable electrical power during continuous operation. Coal cutters operate in demanding conditions where cable flexibility and durability directly impact productivity and safety.

Mining cable for cable handler systems provides essential protection during equipment movement, with the cable designed to withstand tensile forces ranging from 1,125 N to 13,500 N depending on conductor size. This tensile strength ensures reliable operation when cables are subjected to mechanical stress during machine repositioning and cutting operations.

Cable Protection Chain Systems

The cable protection chain traction cable for coal cutting machines operates within specialized cable handlers that absorb tensile forces during equipment movement. These systems prevent cable damage from dragging, twisting, and mechanical impact while maintaining electrical continuity.

Torsional stress rating of ±50°/m allows the cable to accommodate twisting movements inherent in mining operations without compromising conductor integrity. The permanent tensile strength specification of 15 N/mm² ensures long-term reliability under continuous mechanical stress.

Environmental Performance Requirements

Underground mining environments present unique challenges including exposure to moisture, chemicals, oils, and extreme temperature variations. The VO NTSKCGEWOEU 1.8/3 kV cable addresses these conditions through specialized material selection and construction techniques.

Operating temperature range extends from -20°C to +60°C for flexible installations, with fixed installation capability from -40°C to +80°C. This temperature range accommodates seasonal variations and equipment-generated heat loads common in underground mining operations.

Installation and Handling Best Practices

Cable Routing in Protection Chains

Proper installation within cable protection chains requires careful attention to bend radius limitations and mechanical stress distribution. The minimum bending radius specification of 2.3 × D at 5 N/mm² ensures cable longevity while maintaining electrical performance.

When implementing S-type directional changes, maintain minimum distances of 20 × D between consecutive bends to prevent excessive mechanical stress concentration. This spacing requirement prevents premature cable failure and ensures reliable long-term operation.

Mechanical Stress Considerations

Tensile stress management during installation and operation requires understanding of the cable's mechanical limitations and proper handling procedures. The cable can withstand maximum tensile forces up to the specified rating without compromising electrical or mechanical integrity.

Regular inspection of cable protection chains ensures proper mechanical support and identifies potential wear points before they compromise cable performance. Visual inspection should include assessment of outer sheath condition, cable handler wear, and connection point integrity.

Maintenance and Monitoring Protocols

Routine maintenance procedures should include periodic electrical testing to verify insulation resistance and conductor continuity. Ground fault monitoring systems provide early warning of insulation degradation before failures occur.

Temperature monitoring at connection points identifies potential hot spots that could indicate loose connections or excessive loading conditions. Thermal imaging surveys can detect developing problems before they result in equipment failures or safety hazards.

Performance Advantages

Enhanced Mechanical Durability

The specialized construction of the VO NTSKCGEWOEU 1.8/3 kV cable provides superior resistance to abrasion, cutting, and impact damage common in mining environments. The chlorinated polyethylene outer sheath using special compound 5GM5 offers exceptional mechanical protection while maintaining flexibility.

Steel and copper-tinned wire monitoring provides additional mechanical reinforcement and electrical monitoring capability. This integrated monitoring system enables real-time assessment of cable condition and early detection of potential failures.

Chemical and Environmental Resistance

Oil resistance, ozone resistance, and UV resistance ensure reliable operation despite exposure to hydraulic fluids, atmospheric contaminants, and artificial lighting systems common in underground mining. The flame retardant properties meet EN/IEC 60332-1-2 standards, providing essential fire safety protection.

Maximum conductor temperature of 90°C during normal operation and 250°C during short-circuit conditions provides safety margins for overload conditions while maintaining insulation integrity.

Service Life and Reliability

The combination of high-quality materials and specialized construction techniques results in extended service life compared to standard industrial cables. Reduced maintenance requirements and lower failure rates contribute to improved operational efficiency and reduced total cost of ownership.

The cable's design minimizes downtime through enhanced reliability and simplified maintenance procedures. When repairs are necessary, the cable construction facilitates field servicing using standard mining industry techniques and materials.

Compliance and Standards

International Standards Compliance

The VO NTSKCGEWOEU 1.8/3 kV cable meets multiple international standards including DIN VDE 0250-813 for general requirements, DIN EN 60228/IEC 60228/VDE 0295 for conductor specifications, and DIN VDE 0298-4 for electrical parameters.

Fire performance compliance with DIN EN 60332-1-2/IEC 60332-1-2 ensures appropriate flame propagation resistance for underground applications. Chemical behavior testing according to DIN EN 60811-404/IEC 60811-404 validates resistance to environmental contaminants.

Mining Industry Certifications

Multiple regional certifications demonstrate compliance with mining safety requirements including MSHA approval P-07-KA140034 for United States mining applications, MA China certification for Chinese mining operations, and EAC certification for Eurasian Economic Union member countries. These certifications ensure regulatory compliance across major mining regions globally.

Quality Assurance and Testing

Comprehensive testing procedures verify electrical, mechanical, and environmental performance characteristics throughout the manufacturing process. Quality control measures ensure consistent performance across production runs and compliance with specified parameters.

Regular auditing of manufacturing processes and materials sourcing maintains quality standards and ensures continued compliance with evolving regulatory requirements in the mining industry.

Frequently Asked Questions

What distinguishes the VO cable from standard mining cables?

The VO designation indicates specialized construction for chain operation with cable handlers, featuring enhanced tensile strength and torsional stress resistance compared to standard mining cables. The integrated monitoring conductors and specialized sheath materials provide superior protection in demanding underground environments.

How does cable diameter affect installation in protection chains?

Cable diameter directly impacts minimum bend radius requirements and compatibility with cable handler systems. Larger diameter cables require proportionally larger protection chain components and greater installation space, but provide higher current carrying capacity for demanding applications.

What are the critical factors for cable longevity in mining applications?

Proper installation within specified bend radius limits, regular inspection of protection chain systems, appropriate tensile stress management, and environmental protection from chemical exposure are essential for maximizing cable service life in underground mining operations.

How should emergency repairs be conducted in underground environments?

Emergency repairs should utilize approved splicing techniques and materials compatible with the original cable construction. Proper environmental sealing and mechanical protection must be maintained to preserve cable performance and safety characteristics.

Conclusion

The VO NTSKCGEWOEU 1.8/3 kV cable represents a specialized solution for underground mining power supply applications, particularly coal cutting machines requiring reliable electrical power under extreme operating conditions. Its advanced construction combines mechanical durability, electrical performance, and environmental resistance to meet the demanding requirements of modern mining operations.

The cable's integration with cable protection chain systems ensures optimal performance during equipment movement while maintaining electrical continuity and safety. Compliance with international standards and mining industry certifications validates its suitability for global mining applications.

For mining operations seeking reliable power transmission solutions, the VO NTSKCGEWOEU 1.8/3 kV cable offers proven performance, extended service life, and reduced total cost of ownership. The specialized design addresses the unique challenges of underground mining while providing the flexibility and durability essential for continuous operation in demanding environments.

Technical support and application engineering assistance are available to ensure proper cable selection, installation, and maintenance procedures for specific mining applications. Consultation with qualified professionals ensures optimal system design and implementation for enhanced operational efficiency and safety.
