High Tensile Strength Crane Reeling Cable Type 12YHRDTC11YH for Motorized Heavy Duty Reels & Port Handling Systems

The modern port and industrial crane industry demands cable solutions that can withstand extreme mechanical stress while maintaining reliable electrical performance. The Type 12YHRDTC11YH crane reeling cable represents a breakthrough in heavy-duty cable engineering, specifically designed to excel in the most challenging reeling applications where conventional cables fail.

This specialized high tensile strength crane cable for port reeling systems serves as the lifeline for critical power transmission in motorized cable reels, heavy-duty reeling systems, and sophisticated port handling equipment. Unlike standard industrial cables, the 12YHRDTC11YH is engineered with advanced materials and construction techniques that enable it to perform under continuous dynamic stress, frequent winding and unwinding cycles, and harsh environmental conditions typical of port operations.

The significance of tensile strength and reeling performance in crane cable applications cannot be overstated. Port cranes, ship unloaders, and mobile handling equipment operate in environments where cable failure can result in costly downtime, safety hazards, and operational disruptions. The Type 12YHRDTC11YH addresses these challenges through its robust construction, featuring flexible stranded copper conductors and a multi-strand cable structure that maintains electrical integrity even under extreme mechanical loads.

Applications for this rubber reeling cable for motorized reels span across various industrial sectors, with particular emphasis on port automation systems, container handling operations, and heavy industrial manufacturing. The cable's design philosophy centers on providing uncompromising reliability in applications where failure is not an option, making it the preferred choice for mission-critical crane systems worldwide.

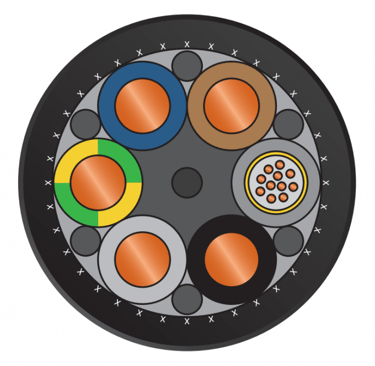

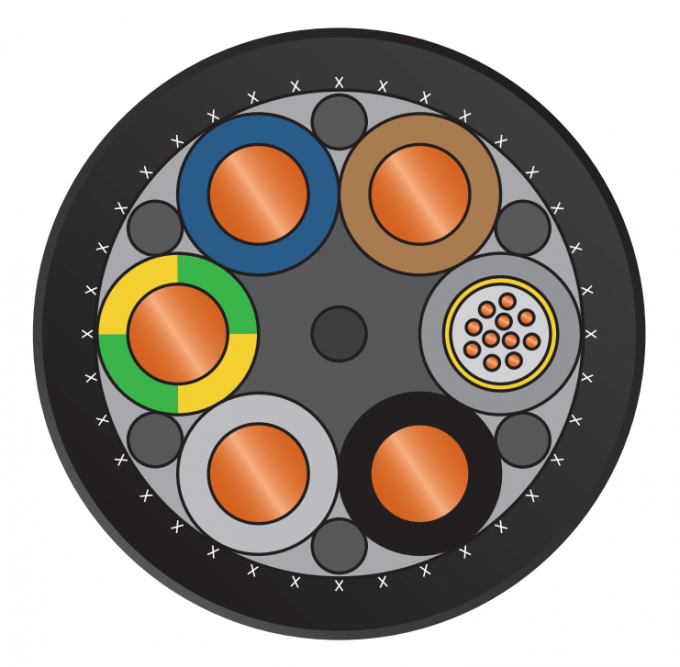

Type 12YHRDTC11YH Crane Reeling Cable

Key Features and Performance Highlights

The Type 12YHRDTC11YH crane reeling cable incorporates several innovative features that distinguish it from conventional reeling cables. The most notable characteristic is its exceptional high tensile strength capability, which enables extended reeling lengths without compromising structural integrity. This feature is particularly crucial for large-scale port operations where cranes must handle substantial cable lengths during normal operation.

Mechanical stress resistance forms the cornerstone of this cable's design philosophy. The durable port crane power cable with abrasion-resistant sheath construction ensures superior performance under torsional loads, repetitive bending cycles, and mechanical shock conditions. The cable's ability to withstand these stresses while maintaining electrical continuity makes it ideal for high-speed motorized reeling systems that operate at speeds up to 180 meters per minute horizontally.

Environmental resistance capabilities set this cable apart in outdoor applications. The specialized rubber compound sheath provides exceptional UV radiation resistance, ozone protection, and oil resistance, ensuring long-term performance in harsh industrial environments. These properties are essential for port crane operations where cables are exposed to marine environments, industrial chemicals, and extreme weather conditions.

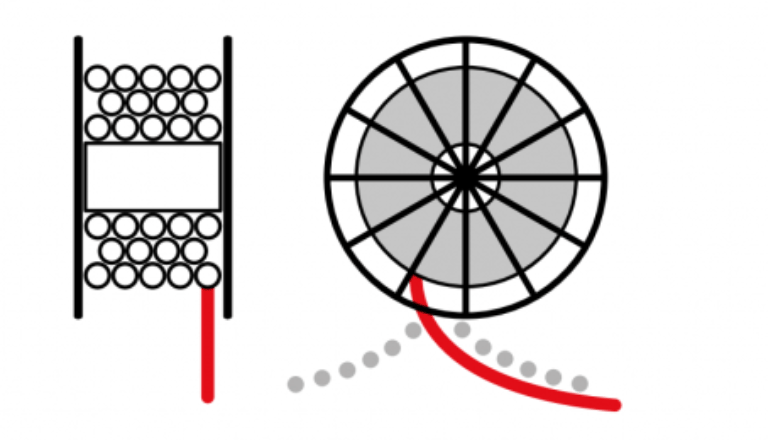

The cable's compatibility with festoon systems and reeling drums adds versatility to its application range. The optimized bending radius and flexible construction allow for smooth operation in both horizontal and vertical reeling configurations, accommodating various crane designs and operational requirements. This flexibility extends to temperature performance, with the cable maintaining operational integrity across a wide temperature spectrum.

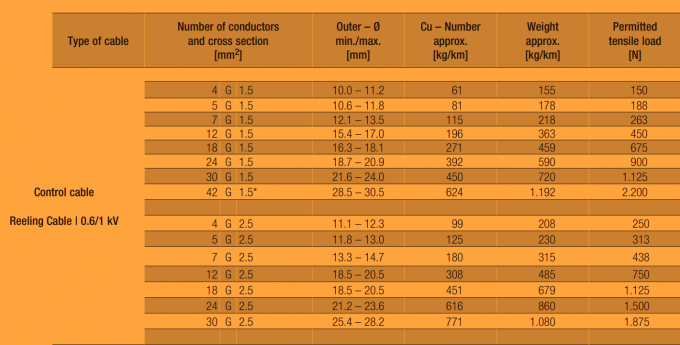

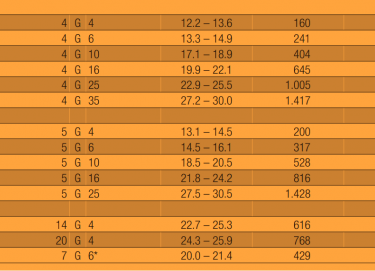

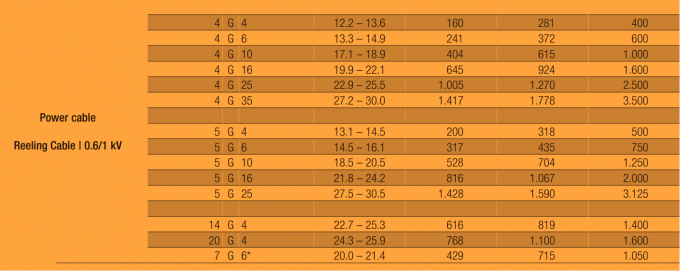

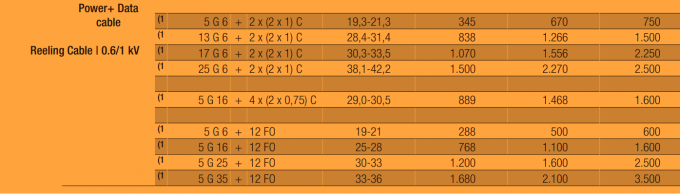

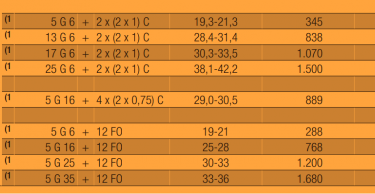

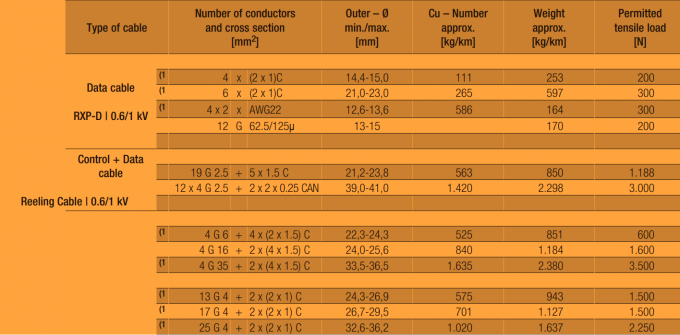

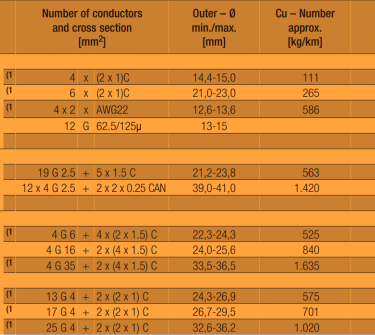

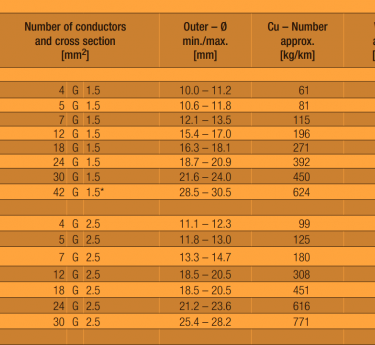

Technical Specifications

The electrical characteristics of the Type 12YHRDTC11YH crane reeling cable reflect its design for demanding industrial applications. The voltage rating of 0.6/1kV (Uo/U) provides adequate electrical capacity for most crane power transmission requirements, with maximum AC operating voltage of 700/1200V and DC operating voltage capabilities of 900/1800V. This voltage range ensures compatibility with both traditional and modern crane electrical systems.

Insulation technology employs high-grade EPR (Ethylene Propylene Rubber), which provides excellent electrical properties combined with mechanical flexibility. EPR insulation offers superior resistance to electrical stress, thermal aging, and mechanical deformation, making it ideal for dynamic cable applications where traditional insulation materials fail prematurely.

The outer sheath construction utilizes a special rubber compound engineered specifically for high abrasion resistance. This proprietary formulation provides exceptional durability against mechanical wear while maintaining flexibility required for continuous reeling operations. The sheath material also incorporates flame retardant properties complying with IEC 60332-1 standards, ensuring safety in industrial environments.

Temperature performance ranges from -40°C to +90°C for fixed installations, with flexing applications rated from -40°C to +80°C. This wide operating temperature range ensures reliable performance in diverse climatic conditions, from arctic port operations to tropical industrial environments. The cable maintains its mechanical and electrical properties throughout this temperature spectrum.

Conductor specifications feature Class 5 fine stranded copper construction, providing optimal flexibility while maintaining excellent electrical conductivity. The fine stranding reduces internal stress during bending cycles and enhances the cable's resistance to fatigue failure. Tinned copper shielding provides additional protection against electromagnetic interference and environmental corrosion.

Ideal Applications for Port and Industrial Cranes

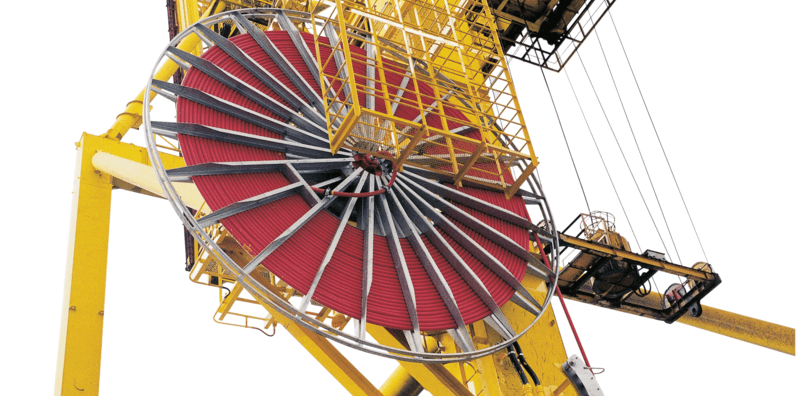

Port gantry cranes represent the primary application domain for the Type 12YHRDTC11YH cable system. RTG (Rubber Tyred Gantry) cranes benefit significantly from the cable's high tensile strength and abrasion resistance, particularly during container stacking operations where precise positioning and reliable power transmission are critical. The cable's ability to handle dynamic loads makes it perfect for the stop-start operations typical of RTG systems.

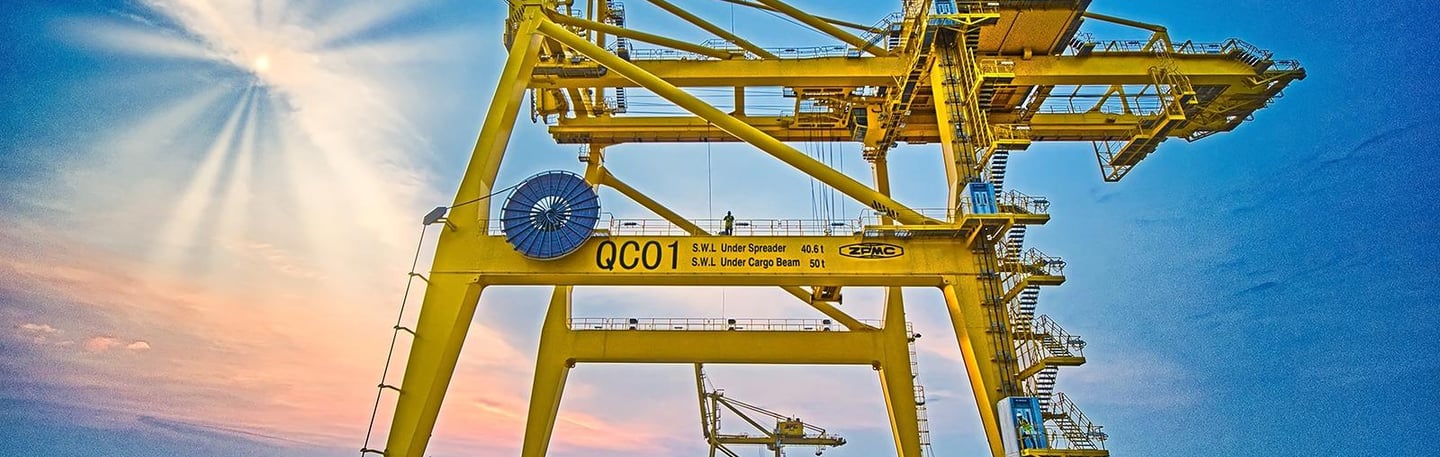

STS (Ship-to-Shore) cranes present unique challenges due to their massive scale and critical operational requirements. The heavy duty crane cable for dynamic reeling applications characteristics of the 12YHRDTC11YH make it ideal for these applications, where cable lengths can exceed several hundred meters and operational speeds demand exceptional mechanical performance. The cable's resistance to marine environments ensures longevity in saltwater exposure conditions.

RMG (Rail-Mounted Gantry) cranes operate in automated container terminals where reliability is paramount. The Type 12YHRDTC11YH's compatibility with high-speed motorized reeling systems makes it perfect for these automated applications, where consistent performance and minimal maintenance downtime directly impact terminal productivity.

Ship unloaders and material handling equipment represent another critical application area. These systems often operate continuously under heavy loads, requiring cables that can withstand constant mechanical stress while maintaining electrical integrity. The cable's multi-strand construction and flexible conductor design ensure reliable performance in these demanding applications.

Mobile lifting devices in container yards benefit from the cable's versatility and durability. Equipment such as reach stackers, mobile harbor cranes, and specialized lifting equipment require cables that can adapt to various operational configurations while maintaining consistent performance standards.

Advantages Over Conventional Reeling Cables

Extended cable service life represents one of the most significant advantages of the Type 12YHRDTC11YH over conventional reeling cables. The specialized construction and advanced materials result in dramatically reduced wear rates during frequent winding and unwinding cycles. This longevity translates directly into reduced replacement costs and decreased operational disruptions.

Optimized bending radius capabilities allow for more compact reel designs while maintaining cable integrity. Conventional cables often require larger minimum bending radii, limiting design flexibility and increasing space requirements. The 12YHRDTC11YH's superior flexibility enables more efficient reel configurations without compromising performance.

Tensile load capacity exceeds that of standard reeling cables by significant margins, enabling longer cable runs and heavier load applications. This increased capacity reduces the need for intermediate support systems and simplifies installation requirements, particularly in large-scale port crane applications.

High-speed motorized reeling system compatibility sets this cable apart from conventional alternatives. The ability to operate reliably at speeds up to 180 meters per minute horizontally opens possibilities for faster crane operations and improved productivity. Conventional cables often limit operational speeds due to mechanical limitations.

Reduced maintenance downtime in port operations provides substantial economic benefits. The cable's robust construction and resistance to environmental factors result in fewer failures and reduced maintenance requirements. This reliability is crucial in port operations where crane downtime directly impacts terminal throughput and profitability.

Compliance and Certifications

International standards compliance ensures the Type 12YHRDTC11YH cable meets rigorous safety and performance requirements. The cable conforms to VDE 0250 Class 5 and VDE 0207 standards, providing assurance of quality and compatibility with international electrical systems. These certifications are essential for equipment manufacturers and port operators seeking globally recognized standards compliance.

IEC standards compliance extends the cable's acceptance in international markets. The flame retardant properties comply with IEC 60332-1 requirements, ensuring safety in industrial installations. Additional IEC compliance covers electrical performance, mechanical properties, and environmental resistance characteristics.

Specialized certifications address specific application requirements. The cable's low flammability rating and halogen-free options provide enhanced safety in enclosed spaces and environmentally sensitive applications. LBS-free and silicone-free formulations accommodate specialized industrial requirements where these materials are prohibited.

Quality assurance programs ensure consistent manufacturing standards and performance characteristics. Rigorous testing protocols verify mechanical strength, electrical properties, and environmental resistance before shipment. These quality measures provide confidence in the cable's performance across diverse applications and operating conditions.

Regional compliance certifications accommodate local regulatory requirements in various markets. The cable's design flexibility allows for customization to meet specific national or regional standards while maintaining core performance characteristics.

Conclusion: Why Choose 12YHRDTC11YH for Port Crane Systems

The Type 12YHRDTC11YH crane cable for harbor motorized systems represents the pinnacle of reeling cable technology, combining advanced materials science with proven engineering principles to deliver unmatched performance in demanding applications. The cable's unique combination of high tensile strength, environmental resistance, and mechanical durability makes it the ideal choice for modern port automation systems.

Port automation trends increasingly demand cables that can support faster operations, longer service life, and reduced maintenance requirements. The 12YHRDTC11YH addresses these requirements through its advanced construction and materials, providing the reliability foundation for next-generation port operations. The cable's ability to perform under extreme conditions while maintaining consistent electrical properties ensures operational continuity in critical applications.

Customization options enhance the cable's versatility across diverse applications. Feichun Cable's engineering expertise enables modifications to conductor cross-sections, sheath colors, lengths, and specialized resistance properties to meet specific project requirements. This customization capability ensures optimal performance in unique applications while maintaining the core advantages of the 12YHRDTC11YH design.

The combination of proven performance, international standards compliance, and comprehensive customization options makes the Type 12YHRDTC11YH the preferred choice for port crane systems worldwide. Feichun Cable's extensive engineering experience and export expertise provide the technical support and global availability required for large-scale port projects.

Investment in high-quality reeling cables like the Type 12YHRDTC11YH represents a strategic decision that impacts long-term operational efficiency and profitability. The cable's superior performance characteristics translate directly into reduced maintenance costs, improved operational reliability, and enhanced safety in critical port operations, making it an essential component of modern port infrastructure.

FAQs

1. What is the Type 12YHRDTC11YH crane reeling cable used for?

The Type 12YHRDTC11YH reeling cable is designed for motorized cable reels, heavy-duty reeling systems, and port crane applications, especially where high tensile strength and flexibility are essential for safe and efficient power transmission.

2. Is this cable suitable for port crane and ship unloader systems?

Yes. This cable is ideal for port cranes, including RTGs (Rubber Tyred Gantry Cranes), STS (Ship-to-Shore Cranes), and RMGs (Rail-Mounted Gantry Cranes), as well as ship unloaders and other mobile lifting equipment used in port environments.

3. What are the voltage and temperature ratings for the 12YHRDTC11YH cable?

Voltage Rating: 0.6/1kV

Temperature Range: -40°C to +90°C

This makes it highly reliable for both indoor and harsh outdoor conditions, including cold weather ports and high-heat industrial zones.

4. How does the cable handle mechanical stress during continuous reeling?

This crane reeling cable is engineered with extra-high tensile strength, abrasion-resistant outer sheath, and flexible copper conductors, enabling it to perform under dynamic movements, bending, torsion, and mechanical shock in reeling systems.

5. Is the Type 12YHRDTC11YH compliant with international standards?

Yes. It complies with VDE 0250, IEC standards, and other relevant safety and quality guidelines. It also offers flame retardant and oil-resistant properties, ensuring long-term reliability.

6. Can this cable be customized for specific reel lengths and conductor sizes?

Absolutely. Feichun Cables offers customization options for conductor cross-sections, sheath color, length, and even special resistance requirements such as UV, ozone, or halogen-free properties to meet specific project demands.

7. What makes the 12YHRDTC11YH cable ideal for motorized reeling systems?

Its optimized reeling performance, durable rubber sheath, and flexibility under tension make it perfect for motorized systems that require continuous winding/unwinding, especially in high-speed or automated crane operations.
