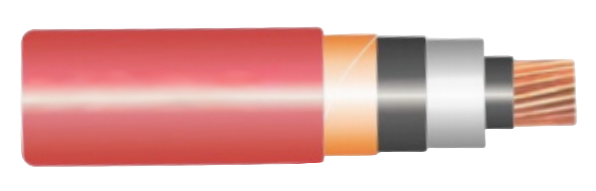

Copper Cable - Non-armoured XLPE Insulation 3.6/6(7.2) - 18/30(36) KV 1C CU/XLPE/CTS/PVC – N2XSY
Single core copper cable with CTS screening for power distribution
$8.00
CONSTRUCTION
Conductor
Conductor Screen Insulation Insulation Screen Metallic Screen Sheath | : Plain annealed copper wire according to IEC 60228 - Class 2 for Stranded Conductors : Extruded Semi Conductive Compound : XLPE Compound : Extruded Semi Conductive Compound : Plain Annealed Copper Tapes : PVC Compound ST 2 |
APPLICABLE STANDARDS
SNI IEC 60502-2, IEC 60502-2 IEC 60228 Special features on request: EPR Insulation Flame Retardant Cat. A, B, C Flame Retardant Non Category Anti-termite | Design and Test Guidelines Conductor Anti-rodent Oil Resistance UV Resistance Low Smoke Zero Halogen |
