How Can Cross-Section Distortion in Port Crane Cables Be Identified and Resolved?

Introduction

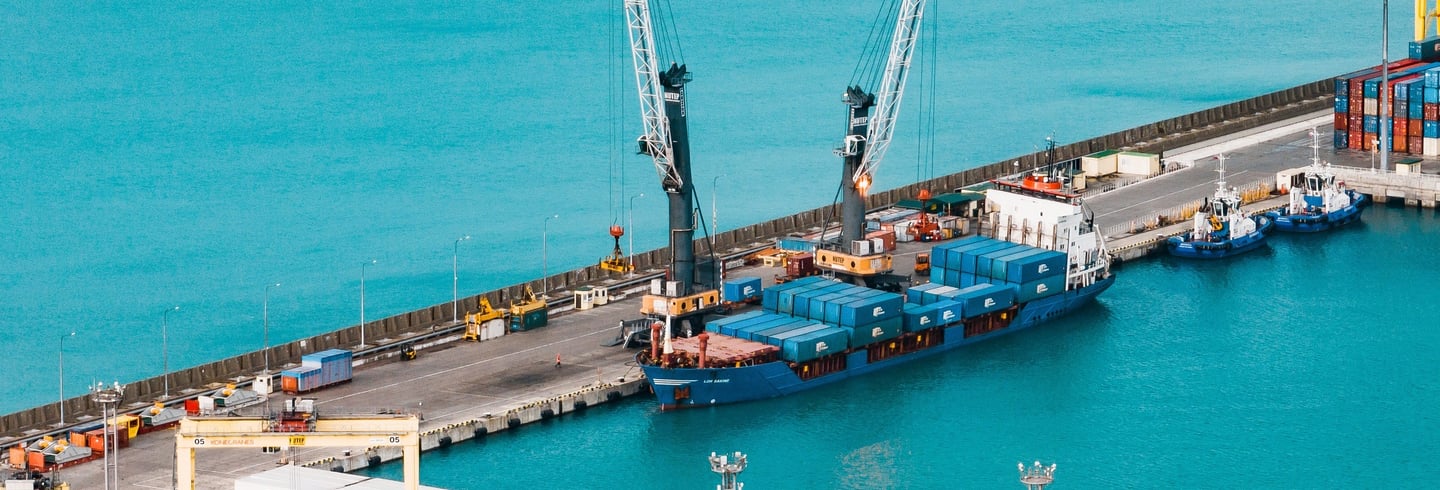

Cable geometry plays a critical role in the safe and efficient operation of port crane systems across Australia's busy maritime terminals. From the towering Ship-to-Shore (STS) cranes at Sydney's Port Botany to the rubber-tyred gantry cranes servicing Perth's Fremantle Harbour, the integrity of electrical cables directly impacts operational reliability and worker safety. One of the most significant threats to cable performance in these demanding environments is cross-section distortion—a phenomenon that can compromise both electrical functionality and structural integrity.

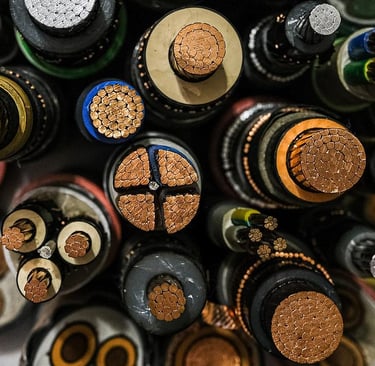

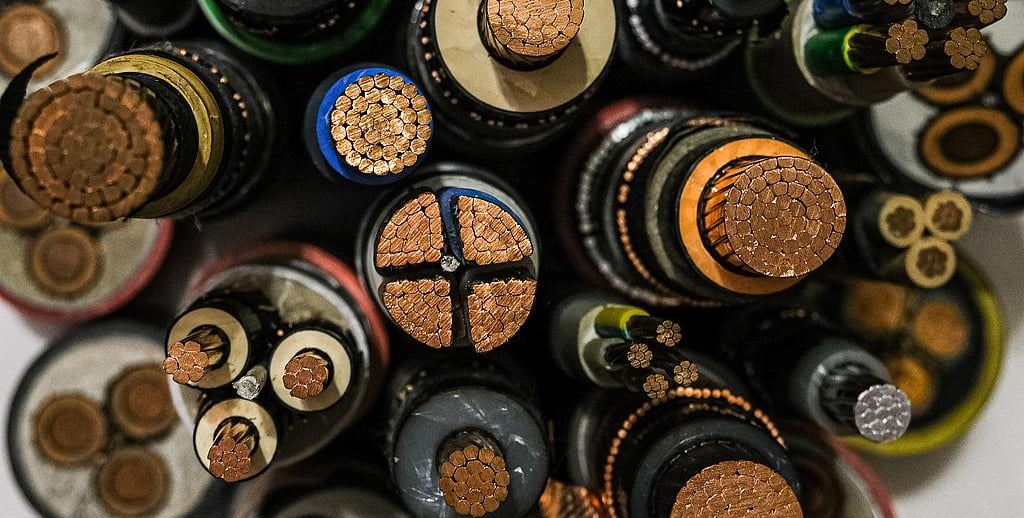

Cross-section distortion in flexible and reeling cables refers to the deformation of a cable's original circular cross-sectional shape into irregular profiles such as oval, flattened, or bulged configurations. This geometric alteration occurs when cables are subjected to mechanical stresses that exceed their design parameters, particularly during installation, operation, or maintenance procedures. The implications extend far beyond simple aesthetic concerns, directly affecting performance, safety protocols, and regulatory compliance with Australian standards.

In port crane operations, where port crane cables are continuously subjected to dynamic loading, environmental exposure, and repetitive flexing cycles, understanding and preventing cross-section distortion becomes paramount for maintaining operational excellence and meeting stringent safety requirements.

Causes of Cross-Section Distortion

Understanding the root causes of cross-sectional deformation in marine crane cables requires examining the unique operational stresses encountered in port environments. The primary contributors to cable distortion stem from both installation practices and operational conditions that push cables beyond their engineered tolerances.

Improper bending radius during cable installation represents one of the most common causes of distortion. When cables are bent beyond their minimum allowable radius—typically specified as a multiple of the cable's outer diameter—the internal structure becomes compressed on the inner bend and stretched on the outer curve. This uneven stress distribution leads to permanent deformation, particularly in the cable's insulation layers and conductor arrangement. Australian port installations often involve complex routing through tight spaces, making adherence to manufacturer-specified bend radii challenging but essential.

Mechanical crushing from rollers, tensioners, and cable guides presents another significant threat. Port cranes utilise numerous mechanical components to guide and support cables during operation. When these components apply excessive localised pressure—either through improper adjustment, wear, or inadequate bearing surfaces—they can compress the cable's circular cross-section into flattened or grooved profiles. This crushing effect is particularly pronounced at cable entry points, where guides may not accommodate the full range of cable movement during crane operation.

Prolonged torsional stress from single-layer reeling systems creates a third major cause of distortion. Many port crane installations utilise drum-based cable management systems that wind cables in single layers. Without proper anti-twist mechanisms, cables can accumulate torsional stress over multiple operational cycles, leading to helical distortion patterns that affect both the cable's cross-sectional geometry and its internal conductor alignment.

The harsh port environment itself contributes to distortion through external abrasion and impact forces. Salt spray, temperature fluctuations, UV exposure, and mechanical impacts from cargo handling operations can weaken cable sheaths, making them more susceptible to deformation under normal operational loads. Container terminals, where cables may be exposed to heavy machinery and environmental contaminants, present particularly challenging conditions for cable preservation.

Symptoms and Identification Methods

Early identification of cable distortion is crucial for preventing catastrophic failures and maintaining operational safety. Recognising how to identify cross-section deformation in port crane cables requires both visual inspection techniques and sophisticated measurement technologies.

Visual signs provide the first line of defence in distortion detection. Trained technicians should look for flat spots along the cable length, where once-circular cables exhibit flattened surfaces. Oval shapes, where the cable appears compressed in one dimension while expanded in another, indicate significant mechanical stress. Bulging sections, where the cable diameter appears inconsistent or enlarged, may signal internal conductor displacement or insulation failure. These visual indicators are most commonly found near mechanical stress points such as cable guides, drum connections, and tensioning devices.

Electrical performance changes often accompany physical distortion, providing additional diagnostic indicators. Impedance variation measurements can reveal internal conductor displacement, while signal loss patterns may indicate insulation degradation. Modern port installations increasingly rely on automated monitoring systems that continuously track electrical parameters, providing early warning of performance degradation before visible distortion becomes apparent.

Professional measurement tools offer precise quantification of distortion severity. Precision calipers provide basic diameter measurements at multiple points along the cable length, revealing variations from the nominal specification. Laser profile scanners offer non-contact measurement capabilities, generating detailed cross-sectional profiles that can identify subtle geometric changes. Thermal imaging techniques can detect hot spots associated with increased resistance from conductor displacement or insulation compression.

Implementing a comprehensive periodic cable inspection checklist for port cranes ensures systematic evaluation of cable condition. This checklist should include visual inspections at predetermined intervals, electrical testing protocols, and documentation requirements that support trending analysis and predictive maintenance strategies.

Impact on Cable Performance and Safety

The consequences of cross-section distortion extend throughout the electrical and mechanical systems of port cranes, creating cascading effects that threaten both operational efficiency and personnel safety. Understanding these impacts emphasises the critical importance of distortion prevention and early intervention.

Reduced insulation resistance represents one of the most immediate concerns associated with cable distortion. When cables lose their circular geometry, insulation materials become compressed or stretched beyond their design parameters, reducing their dielectric strength and increasing the risk of electrical breakdown. This degradation is particularly concerning in marine environments, where moisture ingress can exploit compromised insulation to create dangerous fault conditions.

Accelerated sheath damage and core misalignment follow closely behind insulation degradation. Distorted cables experience uneven stress distribution during normal flexing cycles, concentrating wear at specific points rather than distributing it evenly across the cable structure. This localised stress acceleration leads to premature sheath cracking, internal conductor fatigue, and ultimately, complete cable failure.

The risk of short circuits and system downtime in STS cranes presents significant operational and financial implications. Modern container terminals operate on tight schedules, where crane downtime directly translates to vessel delays, increased operating costs, and potential contractual penalties. Distorted cables create unpredictable failure modes that can shut down critical crane systems without warning, disrupting carefully coordinated terminal operations.

Port cable reliability and port crane safety concerns extend beyond immediate operational impacts to encompass regulatory compliance requirements. Distorted cables may fail to meet the performance specifications required by AS/NZS and IEC standards, potentially voiding insurance coverage and creating legal liability issues. The distorted cable impact on overall system certification can require extensive recertification processes, adding further operational disruption and cost.

Best Practices for Prevention and Resolution

Preventing cross-section distortion requires a comprehensive approach that addresses cable selection, installation practices, operational procedures, and maintenance protocols. These solutions for distorted port crane cable sections focus on proactive measures that eliminate distortion causes rather than reactive repairs after damage occurs.

Heavy-duty flexible cables with appropriate reinforcement represent the foundation of distortion prevention. PUR (polyurethane) and rubber sheath materials offer superior resistance to mechanical stress while maintaining flexibility under dynamic loading conditions. These materials provide enhanced protection against crushing forces while accommodating the repeated flexing cycles characteristic of crane operations. Cable selection should prioritise products specifically designed for marine crane applications, with manufacturer certifications confirming suitability for port environments.

Correct reeling drum setup and guided roller systems address mechanical stress at the source. Proper drum sizing ensures adequate storage capacity without excessive layer buildup, while precision-machined drum surfaces prevent cable damage during winding operations. Guided roller systems must be properly aligned and maintained, with bearing surfaces designed to distribute cable loads evenly across the contact area. Regular inspection and adjustment of these mechanical components prevent the development of stress concentration points that lead to distortion.

Monitoring cable tension and installing anti-twist devices provide operational protection against torsional stress accumulation. Tension monitoring systems alert operators to excessive loads that could cause crushing or stretching damage, while automated tension control systems maintain optimal loading conditions throughout operational cycles. Anti-twist devices, including swivel connections and carefully designed cable routing, prevent the accumulation of torsional stress that leads to helical distortion patterns.

How to prevent cable crushing in cranes requires attention to all contact points throughout the cable's operational path. Cable guides should feature smooth, properly radiused contact surfaces that accommodate the full range of cable movement without creating pressure points. Regular inspection and replacement of worn guide components prevent the development of sharp edges or rough surfaces that can damage cable sheaths.

When distortion does occur, replacing or re-terminating distorted cable sections provides the most reliable solution. Partial repairs may address minor surface damage, but significant cross-sectional distortion typically requires complete cable replacement to restore design performance levels. Partnering with certified repair services ensures that replacement work meets industry standards and maintains system certifications.

Standards and Industry Recommendations

Compliance with established standards provides the regulatory framework for cable selection, installation, and maintenance in Australian port operations. AS/NZS cable standards and IEC compliance requirements establish minimum performance criteria that ensure safe and reliable operation in marine environments.

AS/NZS 2802 specifies requirements for electrical cables in marine applications, including dimensional tolerances, material specifications, and performance testing protocols. This standard addresses cable geometry requirements and establishes acceptable limits for cross-sectional variation, providing objective criteria for evaluating distortion severity. Compliance with AS/NZS 2802 ensures that cables meet the specific demands of Australian maritime conditions, including temperature extremes, UV exposure, and salt spray resistance.

IEC 60228 provides international standards for conductor design and construction, establishing requirements that complement Australian national standards. These standards specify conductor class requirements, stranding configurations, and dimensional tolerances that directly impact distortion susceptibility. Understanding and implementing IEC 60228 requirements ensures compatibility with international crane manufacturers and maintains consistency with global maritime practices.

Manufacturer guidelines for installation and operation provide application-specific recommendations that extend beyond general standards. Leading cable manufacturers publish detailed installation manuals that address minimum bend radius requirements, tensioning specifications, and environmental protection measures. These guidelines often include specific recommendations for crane applications, addressing the unique challenges of dynamic loading and repetitive flexing cycles.

Australian port cable issues documented in industry case studies provide valuable insights into real-world distortion challenges and successful prevention strategies. Major terminals including Port of Melbourne, Port Kembla, and Brisbane's Port of Queensland have developed comprehensive cable management programs that demonstrate effective distortion prevention practices. These case studies highlight the economic benefits of proactive cable management and the operational risks associated with inadequate attention to cable geometry preservation.

Conclusion

Proactive maintenance for distortion prevention represents the most effective approach to ensuring reliable port crane operations while maintaining compliance with Australian safety and performance standards. The complex operational environment of modern ports demands comprehensive attention to cable geometry preservation, from initial selection through ongoing maintenance protocols.

Early detection capabilities, supported by systematic inspection procedures and modern diagnostic technologies, provide the foundation for preventing minor distortion issues from developing into catastrophic failures. Regular monitoring of both physical and electrical cable parameters enables maintenance teams to identify and address problems before they impact operational availability or safety performance.

Qualified cable selection, emphasising products specifically designed for marine crane applications, establishes the baseline performance characteristics necessary for reliable long-term operation. Marine environment cable solutions must balance flexibility requirements with mechanical robustness, incorporating advanced materials and construction techniques that resist the unique stresses encountered in port operations.

The integration of AS/NZS compliant port cables with properly designed installation and maintenance procedures ensures compliance with regulatory requirements while optimising operational performance. This comprehensive approach addresses both immediate operational needs and long-term reliability requirements, supporting the continued growth and efficiency of Australia's vital port infrastructure.

For port operators seeking to optimise their cable management strategies and ensure reliable crane operations, consultation with certified marine cable providers offers access to the latest technologies and proven best practices. These partnerships provide the technical expertise necessary to navigate the complex requirements of modern port operations while maintaining the highest standards of safety and performance.

Crane cable maintenance Australia requires specialised knowledge and experience that combines understanding of local conditions with international best practices. By investing in proper cable selection, installation, and maintenance protocols, port operators can achieve the reliability and safety performance necessary to support Australia's critical maritime trade infrastructure.
