How to Calculate Drum Capacity for Reeling Cable Systems

Introduction

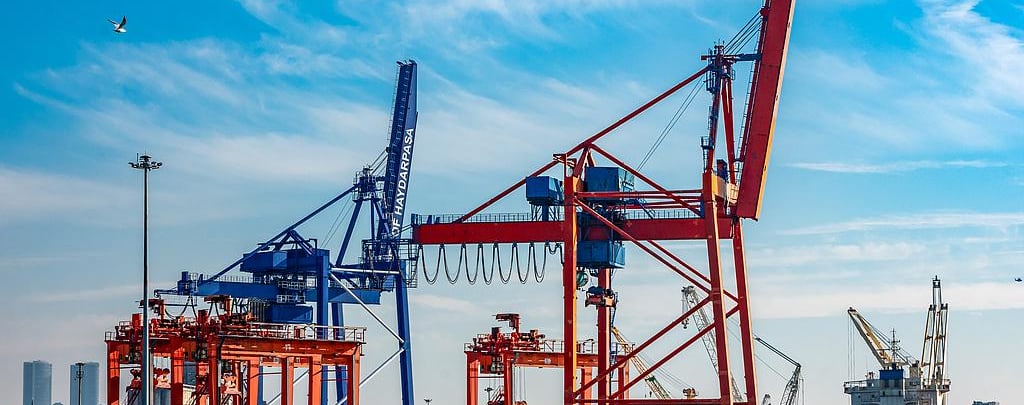

If you've ever stood at the base of a ship-to-shore crane and watched the cable reel spin as the machine tracks along the wharf, you've seen drum capacity at work. It looks simple enough — cable winds on, cable winds off — but behind that steady motion sits a surprising amount of engineering. Get the drum sizing wrong, and you don't just shorten the crane's travel distance. You set yourself up for cable failures, unplanned downtime and maintenance bills that nobody budgeted for.

Drum capacity is one of those things that quietly governs the whole operation. The length of cable a drum can hold determines how far a crane can travel before it runs out of cable. The geometry of the drum determines how hard the cable is bent on every wind, which in turn determines how long that cable lasts. And the way the cable layers stack on top of one another determines whether the lower layers get crushed under the weight of everything above them.

Across Australian ports, mine sites and material handling facilities, reeling cable systems are everywhere. Ship-to-shore (STS) container cranes, rubber-tyred gantry (RTG) and rail-mounted gantry (RMG) cranes, stacker reclaimers, ship loaders, bucket wheel reclaimers, mining excavators and automated warehouse cranes all rely on a cable reel to feed power and data to a moving machine. Each of these applications puts different demands on the drum, but the underlying principles are the same.

Here's the part that catches a lot of people out: many cable failures have nothing to do with the cable itself. The cable might be perfectly specified, beautifully manufactured and entirely fit for purpose. The failure traces back to the drum — a barrel diameter that's too small, too many winding layers, a poor fleet angle, or a reel that's simply been overfilled. The cable becomes the victim of a drum that was never sized correctly in the first place.

This guide walks through the whole process, from understanding the basic geometry of a cable drum through to a full worked example for a port crane. By the end, you'll understand not just how to calculate drum capacity, but why each step matters and where the common traps lie.

Who This Guide Is For

If you specify, design, install, commission or maintain reeling systems, this guide is written for you. That includes electrical engineers selecting cables and reels for new equipment, mechanical engineers designing or modifying drum assemblies, maintenance teams diagnosing why a cable keeps failing, and procurement people trying to understand whether a quoted drum is actually fit for the application. You don't need to be a reeling specialist to follow along — the maths involved is mostly multiplication and division, and we'll walk through every step. What you do need is a willingness to respect the cable's limits, because the entire discipline of drum design comes down to giving the cable an environment it can live in for the long haul.

The Cost of Getting It Wrong

It's worth pausing on the economics before we dive into the engineering, because the numbers explain why this matters so much. A medium-voltage reeling cable for a large port crane is not a cheap item — a full length can run well into five figures, and on a long-travel system you might be replacing hundreds of metres at a time. But the cable cost is often the smallest part of the bill. The real expense is the downtime. When a reeling cable fails on an STS crane, that crane stops, and a stopped crane on a container terminal can cost the operator enormous sums per hour in lost productivity and knock-on delays to vessel schedules. Add the labour to diagnose the fault, source a replacement, re-spool the new cable correctly and recommission the system, and a single avoidable cable failure can easily run to a six-figure event once everything is tallied. Set against that, the time spent getting the drum design right at the outset is trivially cheap insurance. This is why experienced engineers treat the drum calculation as a serious piece of work rather than a quick sum on the back of an envelope.

Understanding Cable Drum Geometry

Before you can calculate anything, you need to understand the parts of a drum and how they interact. A cable drum is a deceptively simple object — a barrel with two flanges — but each dimension plays a specific role in determining capacity and cable life.

Flange Diameter

The flange diameter is the overall outside diameter of the drum's side plates. Think of the flanges as the two walls that keep the cable from spilling off the sides. The larger the flange diameter relative to the barrel, the more room there is for winding layers to build up. More layers means more cable storage, which is exactly what you want when a crane needs to travel a long way.

But there's a limit. You can't simply make the flanges enormous and stack cable to the brim. Every extra layer adds weight, increases the load on the lower layers, and pushes the outer cable further from the centre — which affects the fleet angle and the drive torque. The flange diameter sets the ceiling on capacity, but it's only useful within sensible bounds.

There's also a structural dimension to flange size that's easy to overlook. The flanges aren't just walls — they have to resist the sideways thrust of the wound cable, which can be considerable on a heavily loaded drum. As the flange diameter grows, the flanges need to be stiffer and stronger to avoid flexing or dishing under load, which adds weight and cost to the drum assembly itself. A flange that flexes lets the cable creep towards the edge and undermines the clearance you've designed in. So the flange diameter you choose ripples through the whole mechanical design of the reel, not just the capacity calculation. When you see a well-engineered drum with substantial, well-braced flanges, that robustness is doing real work in keeping the winding contained.

Barrel Diameter

The barrel is the central cylinder that the first layer of cable wraps around. Its diameter has a major influence on cable bending stress, because that first layer is bent to the tightest radius of anything on the drum. Every subsequent layer sits on a larger effective diameter and is therefore bent more gently.

This is why the barrel diameter is so critical. A barrel that's too small forces the cable into a tight bend on every single wrap, and over thousands of cycles that repeated flexing fatigues the conductors and stresses the insulation. A cable rated for a generous bending radius will fail early if it's wound onto an undersized barrel. We'll come back to this when we discuss the D/d ratio, which is essentially a formal way of checking that the barrel is big enough.

It's worth understanding why the first layer is the worst case. A reeling cable on a moving crane doesn't just sit on the drum — it is bent and straightened repeatedly as the cable winds on and pays off. Each time a section of cable wraps onto the barrel, it bends to the barrel's radius; each time it pays off, it straightens out again. That cyclic flexing is the fatigue driver, and it's most severe at the smallest radius, which is the barrel itself. By the time you're up at the outer layers, the effective radius is much larger and the flexing is gentle. So the barrel diameter doesn't just affect the first layer in isolation — it sets the harshest bending condition the cable will ever experience, and that condition repeats for the life of the system. Size the barrel for the cable, and you've protected it at its most vulnerable point. Skimp on the barrel, and no amount of careful design elsewhere will save the cable.

Traverse Width

The traverse width is the usable space between the two flanges — the channel where the cable actually winds. A wider traverse means more turns can fit in each layer, which directly increases the total amount of cable the drum can hold. If you need to squeeze more capacity out of a given flange diameter, widening the drum is often a better move than adding more layers, because extra width doesn't crush the lower layers the way extra layers do.

That said, traverse width has its own constraint: fleet angle. A very wide drum positioned close to the cable guide can produce steep fleet angles at the outer edges, which causes the winding problems we'll discuss later. So traverse width is a balance, not a free lunch.

Cable Diameter

This sounds obvious, but it trips people up constantly: all drum capacity calculations must be based on the actual measured outer diameter of the cable, not the conductor size or the nominal "cable size" printed on a datasheet. A cable described as a "95 mm²" cable refers to the cross-sectional area of the copper conductor — it tells you nothing directly about how thick the finished cable is once you add insulation, bedding, armour, sheathing and any fibre optic elements.

The outer diameter is what occupies space on the drum, so the outer diameter is what you measure and what you use. We'll hammer this point again in the common mistakes section, because using conductor size instead of outer diameter is one of the most frequent and most costly errors in reel selection.

Clearance Allowance

You should never wind cable right up to the edge of the flange. You need freeboard — a margin of clearance between the outer cable layer and the rim of the flange. This clearance protects against the cable climbing over the flange edge during travel, gives the winding some tolerance for imperfect packing, and provides a safety buffer if the system ever takes up slightly more cable than expected.

Most designers leave a clearance equal to one to two times the cable's outer diameter. So if you're winding a 40 mm cable, you'd want roughly 40 mm to 80 mm of clear space between the top layer and the flange edge. It feels like wasted capacity, but it's cheap insurance against the cable jumping the flange and destroying itself.

The amount of clearance you choose is also a judgement about how well-behaved the winding will be. A grooved drum with a controlled fleet angle and reliable tension winds predictably, so you can run a tighter clearance with confidence. A smooth drum, a wide drum prone to higher fleet angles, or a system where tension control is less certain all argue for more generous clearance, because the winding is more likely to build up unevenly and creep towards the flange. In other words, the clearance you leave should reflect how much you trust the rest of the design to keep the winding tidy. When in doubt, leaning towards the larger end of the range costs you a little capacity but buys a lot of protection against the most catastrophic and avoidable failure mode of all — the cable climbing over the flange and being crushed or torn off entirely.

[Suggested illustration: a drum anatomy diagram showing the flange diameter, barrel diameter, traverse width, cable diameter and clearance allowance all labelled on a cross-section.]

Key Cable Parameters Required Before Calculation

You can't size a drum in a vacuum. Before you touch a single formula, you need a clear picture of the cable that's going onto it. Four parameters matter most.

Cable Outer Diameter

Reeling cable diameters vary enormously depending on voltage level, conductor size and construction. A light festoon cable feeding a small overhead crane is a different beast from a medium-voltage power cable feeding an STS crane.

As a rough guide, festoon cables commonly range from around 15 mm to 50 mm in outer diameter. Low-voltage reeling cables are often somewhere between 20 mm and 75 mm. Medium-voltage reeling cables used on large port cranes can exceed 100 mm in diameter — these are substantial cables, heavy and stiff, and they demand large drums to match. Hybrid fibre optic reeling cables, which carry both power and data, typically fall between 35 mm and 100 mm depending on how many elements they bundle together.

The takeaway is that you need the real number for your specific cable, measured or taken from a verified manufacturer's datasheet. Don't estimate from a similar cable, and don't assume two cables of the same voltage rating have the same diameter — construction differences can be significant.

Cable Weight

It's tempting to think of drum sizing purely as a length problem: how much cable do I need to store? But cable weight is just as important, because weight drives the loads on the entire reeling system.

The total weight of cable on the drum affects the drive motor torque needed to turn it, the loads on the bearings, the stresses in the drum structure and flanges, and the inertia the system has to accelerate and decelerate every time the crane changes direction. Underestimate the weight and you can end up with an undersized motor that struggles, bearings that wear prematurely, or a drum structure that flexes under load.

To put some numbers on it: smaller reeling cables might weigh around 1 to 1.5 kilograms per metre. Large medium-voltage crane cables can exceed 5 to 7 kilograms per metre. On a long-travel system holding several hundred metres of heavy cable, that's several tonnes of cable load sitting on the reel. That's not a load you want to discover after the fact.

The weight also changes through the duty cycle in a way that catches people out. When the crane is at one end of its travel and most of the cable is wound onto the drum, the drum carries close to the full cable weight and its rotational inertia is at a maximum. When the crane is at the far end and most of the cable is paid out across the runway, the drum is nearly empty and light. The drive system has to handle both extremes — enough torque to start a fully loaded drum turning, and enough control to manage a near-empty one without snatching the cable. The inertia of a full drum also means it doesn't want to stop quickly, so the braking and tension control have to account for that stored energy. None of this shows up if you only think about static length. It only emerges when you treat the cable weight as a live load that the whole drive and tension system has to manage across the full range of travel.

Minimum Bending Radius

Every cable has a minimum bending radius — the tightest curve it can be bent to without damage. Bend it tighter than that, repeatedly, and you accelerate fatigue in the conductors and stress in the insulation and any fibre optic elements.

The minimum bending radius is closely tied to the cable's outer diameter, and it's usually expressed as a multiple of that diameter. The IEC standards provide recommendations for various cable types, and these recommendations are the basis for selecting a barrel diameter large enough to keep bending stress within safe limits. When we calculate the D/d ratio in the next section, we're essentially checking that the barrel respects the cable's minimum bending radius across every winding layer.

Tensile Loads

A reeling system isn't a static storage rack. The cable experiences dynamic forces every time the crane accelerates, decelerates and travels. The reel has to pay out and take up cable under controlled tension, and that tension has to be enough to keep the winding neat without being so high that it stresses the cable.

Maintaining proper tension throughout the winding process is essential. Too little tension and the lower layers wind on loosely, only to be crushed and disturbed when the outer layers pull tight — a problem we'll see in the case studies. Too much tension and you add unnecessary stress to the cable and the system. The reel's tensioning mechanism, whether it's a torque motor, a spring system or a magnetic coupling, has to deliver consistent tension across the full range of travel.

The dynamic forces deserve a closer look, because they're easy to underestimate from a static drawing. When a crane accelerates, the reel has to either pay out or take up cable fast enough to match the crane's motion without either snatching the cable tight or letting it go slack and pile up on the ground. The faster the crane and the harder its acceleration, the more demanding this becomes. A cable that snatches tight experiences a sudden tensile shock that can exceed the steady-state tension many times over, and repeated shocks fatigue the conductors and can pull the cable termination loose. A cable that goes slack, on the other hand, can be run over, snagged or wound back on untidily. The tension system has to thread the needle between these failure modes across every speed and direction the machine operates at. This is why reeling systems on fast or heavily-cycled equipment often use sophisticated torque control rather than a simple spring — the spring can't adapt its tension to the changing drum diameter and the varying dynamic demand, whereas a controlled torque motor can hold the right tension whether the drum is full or nearly empty. When you specify a reeling system, the tension control strategy is as much a part of protecting the cable as the drum geometry itself.

Reading a Cable Datasheet Correctly

Since every calculation starts from the cable's real characteristics, it's worth a moment on how to extract the right numbers from a manufacturer's datasheet, because datasheets are where the conductor-size confusion usually creeps in. A reeling cable datasheet typically lists the conductor cross-section first and most prominently — figures like 50 mm², 95 mm² or 120 mm² — because that's how cables are ordered and how their current-carrying capacity is rated. But as we've stressed, that number is not the cable's outer diameter and must never be used as one. Look further down the datasheet and you'll find the overall diameter, sometimes labelled as the outer diameter, nominal diameter or simply "approx. diameter" — that's the figure your drum calculation needs. Note the word "approximate": manufacturing tolerances mean the real cable can differ slightly from the nominal figure, and on a multi-layer drum those small differences accumulate, so where accuracy matters it's worth measuring a sample of the actual delivered cable rather than relying solely on the catalogue value.

The datasheet will also give you the weight per metre and the minimum bending radius, usually expressed as a multiple of the cable diameter. For reeling applications specifically, look for the bending radius quoted for repeated flexing or reeling duty, which is generally larger than the radius quoted for a one-off fixed installation, because a cable bent repeatedly needs a gentler radius than one bent once and left alone. Using the fixed-installation bending radius for a reeling application is a subtle but real error that can undersize your barrel. If the datasheet distinguishes between the two, always use the reeling or flexing figure.

Relevant Standards

Reeling cable and drum design doesn't happen in a regulatory vacuum. The IEC standards provide the widely-referenced framework for cable construction, ratings and bending radius recommendations, and they're the basis for much of the D/d guidance discussed throughout this guide. Cable manufacturers design their reeling cables to meet these standards and publish the corresponding bending radius and duty recommendations, which is precisely why the manufacturer's data should be your starting point rather than a generic rule of thumb. In an Australian context, equipment also has to satisfy the relevant local electrical and machinery safety requirements, and port and mining operators frequently impose their own additional specifications based on hard-won site experience. The practical upshot is that you should treat the figures in this guide as sound general engineering guidance, but always cross-check them against the specific cable manufacturer's recommendations and any standards or site specifications that apply to your project. Where a manufacturer's recommendation is more conservative than a general rule, follow the manufacturer — they understand their cable's construction better than any generic figure can.

Step 1 — Verify the D/d Ratio

With the cable parameters in hand, the first real design check is the D/d ratio. This is arguably the single most important number in reeling system design, so it's worth getting right before you go any further.

What Is the D/d Ratio?

The D/d ratio compares the drum barrel diameter (D) to the cable outer diameter (d). Divide one by the other and you get a single number that tells you how gently or harshly the cable is being bent on the barrel. A high D/d ratio means a large drum relative to the cable — a gentle bend, low stress, long life. A low D/d ratio means a small drum relative to the cable — a tight bend, high stress, shortened life.

It's a simple ratio, but it captures the fundamental trade-off in drum design. Everyone wants a compact drum that doesn't take up much space and doesn't cost much to build. But the cable wants a large drum that doesn't bend it too hard. The D/d ratio is where those competing desires are reconciled.

Recommended Values

Different cable types tolerate different D/d ratios, and the recommended values reflect how sensitive each construction is to bending.

Low-voltage reeling cables are relatively forgiving and generally require a D/d ratio somewhere between about 12 and 18. Medium-voltage reeling cables, with thicker insulation and more delicate internal structures, typically need ratios in the range of 18 to 25. Hybrid fibre optic reeling cables are the most demanding, often requiring ratios above 20 to protect the optical fibres, which are far less tolerant of repeated tight bending than copper conductors.

These aren't arbitrary figures. They come from years of field experience and testing, and they represent the point at which cable life and drum economy reach a sensible balance. If your calculated ratio falls below the recommended range for your cable type, that's a red flag that demands attention before anything else.

Consequences of an Undersized Drum

What happens when the D/d ratio is too low? The cable is bent more tightly than it was designed to tolerate, and the damage accumulates with every cycle. Conductors fatigue and eventually fracture. Insulation cracks under repeated flexing. Internal stresses build, and the cable fails well before its expected service life.

Consider a real-world pattern that plays out on sites more often than you'd think: a facility replaces a worn cable and, in an effort to save space or cost, fits a slightly smaller drum or a larger-diameter cable without rechecking the ratio. The new combination produces a D/d ratio of, say, 10 on a medium-voltage cable that wanted at least 18. The cable looks fine for the first few months, then starts showing jacket cracks, then suffers an insulation failure that trips the crane. The cable that was supposed to last years is replaced inside twelve months — and the cause was never the cable. It was the drum.

There's a subtlety worth flagging here. The D/d ratio as we've defined it uses the barrel diameter, which describes the bending condition on the first layer — the worst case. But some engineers and standards also consider the effective diameter at the cable guide sheaves and any other points where the cable is bent around a radius. A reeling system isn't just a drum; it usually includes guide sheaves, possibly a festoon arrangement, and other points where the cable changes direction. Every one of those points imposes a bending radius on the cable, and the smallest radius anywhere in the system governs the cable's fatigue life. A perfectly sized drum paired with an undersized guide sheave will still fail the cable at the sheave. So when you verify the D/d ratio, get into the habit of checking every point where the cable bends, not just the drum barrel. The drum is usually the tightest bend, but not always, and the cable doesn't care which component lets it down.

Step 2 — Calculate Usable Drum Space

Once you've confirmed the barrel is big enough, you can start working out how much cable the drum will actually hold. That begins with figuring out the usable space available for winding — both radially (how deep the cable can stack) and axially (how wide the winding channel is).

Determine Winding Depth

The winding depth is the radial space available for cable to build up, from the barrel surface out towards the flange. You calculate it from the difference between the flange diameter and the barrel diameter, then subtract the clearance allowance.

Here's the logic. The full radial gap between the barrel and the flange edge is half the difference between the flange diameter and the barrel diameter — because the diameters measure across the full drum, but the winding builds up on one side at a time. From that radial gap you subtract the clearance you want to leave at the top. What remains is the usable winding depth: the radial thickness of cable you can safely accommodate.

For example, if the flange diameter is 2200 mm and the barrel diameter is 1200 mm, the total radial gap is (2200 − 1200) ÷ 2 = 500 mm. Leave a clearance of, say, 60 mm at the top, and your usable winding depth is 440 mm. That 440 mm is what the cable layers have to fit within.

Determine Effective Traverse Width

The same "subtract the margins" principle applies to the width. The total traverse width between the flanges isn't all usable, because you need a little edge clearance near each flange and you have to allow for winding tolerances — cables never pack perfectly against the flange.

So from the total drum width you deduct a small allowance at each edge to get the effective traverse width. This is the width you'll actually use when calculating how many turns fit in each layer. It's a modest deduction, but skipping it leads to overestimating capacity and ending up with fewer turns per layer than your calculation promised.

Step 3 — Calculate Turns Per Layer

The number of turns that fit in a single layer is one of the most straightforward calculations in the whole process: take the effective traverse width and divide it by the cable's outer diameter. If your effective width is 1160 mm and your cable is 40 mm in diameter, you get 1160 ÷ 40 = 29 turns per layer.

But the real world rarely matches the arithmetic exactly, and a few factors influence the final result.

Packing efficiency is the first. Cables don't always sit perfectly side by side. Slight gaps, minor misalignment and the cable's own stiffness all conspire to reduce the number of turns you actually achieve. A small efficiency factor — winding slightly fewer turns than the theoretical maximum — keeps your estimate realistic.

Cable deformation is the second. Under winding tension, a cable's outer sheath compresses slightly against its neighbours, which can let a few more turns squeeze in than the nominal diameter suggests. This works in your favour, but it's hard to predict, so most designers don't rely on it.

Groove design is the third, and it's significant enough to deserve its own comparison. On a smooth drum, the cable finds its own position in each layer, and the winding can wander — turns can crowd together or spread apart, and the position of the cable is less predictable from one wind to the next. On a grooved drum, machined helical grooves guide each turn into a defined position. Grooved drums generally provide much more predictable and consistent winding patterns, especially in the critical first layer, where the groove establishes the pitch for everything that follows. For demanding applications, grooved drums are often worth the extra manufacturing cost precisely because they make the winding behaviour predictable and repeatable.

There's a related point about how layers transition that's worth understanding. On any drum, the cable has to climb from one layer to the next at some point across the width — it can't simply teleport up a level. On a smooth drum this climb happens wherever the winding decides, and if it happens in the same rough zone every cycle it creates a wear band. On a well-designed grooved drum, the groove pattern can include a controlled crossover or "riser" region where the layer change is managed deliberately, keeping the rest of the layer clean. Counter-balanced or parallel groove systems are sometimes used on larger reels to manage this transition smoothly. The practical implication for your turns-per-layer calculation is that the very neat theoretical figure — effective width divided by cable diameter — is an idealisation. Real winding loses a fraction of a turn here and there to the layer transitions and to imperfect packing, which is exactly why a small efficiency factor keeps your estimate honest rather than optimistic.

Step 4 — Calculate Number of Layers

If turns-per-layer is governed by the width, the number of layers is governed by the depth. The usable winding depth you calculated in Step 2 determines how many layers of cable can stack up before you run into the clearance limit. Divide the usable winding depth by the cable's outer diameter and you get the maximum number of layers. With a 440 mm usable depth and a 40 mm cable, that's 440 ÷ 40 = 11 layers.

But layers come with a catch that turns-per-layer doesn't have. Every additional layer presses down on all the layers beneath it. As the drum fills, the inner layers carry the radial pressure of everything wound on top of them, and that pressure rises as the stack grows. Too many layers, and the lower cable gets crushed — the sheath deforms, the insulation is compressed, and in severe cases the cable is permanently damaged before it has done any real work.

This is the trade-off at the heart of drum design. More layers means more storage capacity and more crane travel, which is exactly what operations teams want. But more layers also means more radial pressure, more wear on the lower layers, and a shorter cable life. A drum filled to the absolute maximum number of layers might store impressive lengths of cable, but it may also chew through that cable far faster than a drum running a few layers shy of the limit. Good design finds the point where you have enough capacity for the required travel distance without stacking so high that you're crushing your own cable. Where extra capacity is needed, it's usually better to gain it through a wider drum or a larger flange than by piling on more layers.

Step 5 — Calculate Total Drum Capacity

Now we bring it all together. There are three common ways to calculate total drum capacity, ranging from quick approximations to detailed geometric methods, and each has its place.

Approximate Calculation Method

The traditional engineering approach uses a single formula based on the drum dimensions and cable diameter to produce a quick capacity estimate. It treats the wound cable as filling an annular space and works out the length that fits.

Its great advantage is speed. For preliminary sizing — when you're checking whether a drum is roughly in the right ballpark, or comparing a handful of candidate drums early in a project — the approximate method gives you a usable number in seconds without a spreadsheet full of layer calculations.

Its limitation is accuracy. Because it averages out the geometry rather than tracking each layer individually, it can be off by a meaningful margin, particularly on drums with many layers where the difference between inner and outer layer lengths is large. It's a good first cut, not a final answer.

Layer-by-Layer Geometric Method

This is the most accurate approach, and it's the one detailed engineering projects rely on. The principle is simple: each layer of cable winds at a larger effective diameter than the layer below it, because it sits on top of the previous layer. A larger diameter means a larger circumference, which means each turn in that layer stores more cable than a turn in the layer beneath.

So instead of treating all layers as equal, you calculate the cable length stored in each individual layer using that layer's own effective diameter, then add up all the layers to get the total. The first layer winds close to the barrel diameter; each successive layer adds roughly two cable diameters to the effective winding diameter. The outermost layer, sitting far from the centre, holds considerably more cable per turn than the innermost layer.

This method takes more work, but it accounts for the geometry honestly, and the result is far more trustworthy than the approximate method — especially on multi-layer drums where the cumulative difference between layers is substantial. When the capacity number really matters, this is the method to use.

To make the principle concrete, picture the difference between the innermost and outermost layers. The first layer wraps tightly around the barrel, so each turn is a relatively small circle and stores relatively little cable. The outermost layer, sitting many cable diameters further out, wraps around a much larger circle, so each turn stores considerably more. On a drum with, say, ten layers, the outer layer might hold sixty per cent more cable per turn than the inner layer. If you used the approximate method and effectively treated every layer as an average, you'd be applying that average to layers that range from well below it to well above it — and depending on how the averaging is done, the error can run to several per cent of the total. On a system where you're trying to confirm whether the drum holds enough cable for the full crane travel, a several-per-cent error can be the difference between a system that works and one that runs out of cable before the crane reaches the end of its run. That's why the extra effort of the layer-by-layer method earns its place on any serious project: it removes the guesswork from the one number the whole design hinges on.

Volume-Based Method

A third approach estimates capacity from the volume of the winding space and the cross-sectional area the cable occupies. You work out the annular volume available for winding, account for packing efficiency, and divide by the cable's cross-sectional footprint to estimate length.

The volume-based method is useful for very early-stage estimates and for sanity-checking the other methods. It's quick and it gives a feel for capacity before the detailed geometry is locked in, but like the approximate method it smooths over the layer-by-layer detail and shouldn't be the basis for a final design.

Comparison of Calculation Methods

So which method should you use, and when? For a quick first estimate or an early feasibility check, the approximate or volume-based methods are perfectly adequate — they're fast and they get you in the right region. As the design firms up and the capacity number starts driving real decisions about crane travel distance and reel selection, you move to the layer-by-layer method for its accuracy. Detailed engineering projects almost always rely on layer-by-layer calculations for the final figures, because the margin for error on a port crane or a long-travel mining system is too small to accept the rougher estimates. A sensible workflow uses the quick methods to narrow the options and the layer-by-layer method to confirm the final choice.

Worked Example — Port Crane Reeling Cable Drum Calculation

Let's put the whole process to work with a realistic port crane example. We'll size the capacity of a drum carrying a medium-sized reeling cable, walking through each step the way you would on a real project.

The setup. We have a 40 mm outer diameter reeling cable, to be wound on a drum with the following dimensions: a barrel diameter of 1200 mm, a flange diameter of 2200 mm, and a traverse width of 1200 mm. This is a typical configuration for a medium-sized STS or ship loader reel.

Step 1 — verify the D/d ratio. The barrel diameter is 1200 mm and the cable diameter is 40 mm, so the D/d ratio is 1200 ÷ 40 = 30. For a medium-voltage reeling cable wanting a ratio of 18 to 25, a value of 30 is comfortably above the requirement, so the barrel is generously sized and bending stress is well controlled. We're good to proceed.

Step 2 — usable winding depth. The radial gap between barrel and flange is (2200 − 1200) ÷ 2 = 500 mm. We'll leave a clearance of one and a half cable diameters at the top, which is 1.5 × 40 = 60 mm. That gives a usable winding depth of 500 − 60 = 440 mm.

Effective traverse width. From the 1200 mm total width we deduct an edge allowance of about 20 mm on each side to account for flange clearance and winding tolerance, giving an effective traverse width of roughly 1160 mm.

Step 3 — turns per layer. Dividing the effective width by the cable diameter, 1160 ÷ 40 = 29 turns per layer. Applying a modest packing efficiency to stay realistic, we'll work with 29 turns per layer.

Step 4 — number of layers. The usable winding depth divided by cable diameter gives 440 ÷ 40 = 11 layers. We should pause here and consider whether 11 layers is wise from a crushing standpoint. Eleven layers is on the higher side; on a cable this size it's workable, but the lower layers will carry significant pressure, so in practice a designer might choose to limit the fill to, say, 9 or 10 layers to extend cable life. For this example we'll calculate the full 11-layer capacity and note that the practical working figure may be slightly lower.

Step 5 — cable length per layer, and total capacity. This is where the layer-by-layer method earns its keep. The first layer winds at an effective diameter roughly equal to the barrel diameter plus one cable diameter — its centre line sits about half a cable diameter above the barrel surface, so the mean winding diameter is approximately 1200 + 40 = 1240 mm. Each subsequent layer adds about two cable diameters (80 mm) to the effective winding diameter.

For each layer, the length of cable is the number of turns multiplied by the circumference at that layer's mean diameter. The circumference is π times the mean diameter. So:

The first layer winds at about 1240 mm mean diameter, giving a circumference of roughly 3.142 × 1.240 = 3.90 metres per turn. With 29 turns, that's about 113 metres in the first layer.

Each higher layer adds 80 mm to the mean diameter, so the second layer is at about 1320 mm (4.15 m per turn, around 120 m), the third at about 1400 mm (around 128 m), and so on, with each layer storing progressively more cable than the one below it.

By the time we reach the eleventh layer, the mean diameter is around 1240 + (10 × 80) = 2040 mm, giving a circumference of about 6.41 metres per turn and roughly 186 metres in that single layer.

Adding up all eleven layers — each calculated at its own increasing diameter — the total comes to approximately 1,640 metres of cable. If we take the more conservative 10-layer fill to protect the lower layers, the total is closer to 1,450 metres. Either way, we now have a defensible capacity figure rather than a guess.

Putting the result to use. With roughly 1,450 to 1,640 metres of usable capacity, this drum comfortably suits a port crane application with a long travel distance. You'd compare this figure against the required crane travel — remembering to allow for dead wraps that stay on the drum at full pay-out and a safety margin — to confirm the drum is suitable. For an STS crane, a ship loader or a stacker reclaimer with a travel requirement well within this range, this drum and cable combination checks out. If the required travel exceeded the capacity, you'd revisit the drum dimensions — a wider traverse or a larger flange — rather than simply piling on more layers and crushing the cable.

Fleet Angle Considerations in Reeling Systems

You can calculate a perfect drum capacity and still have a reeling system that winds badly, because there's one more geometric factor that the capacity calculation doesn't capture: the fleet angle. It's the difference between a drum that fills neatly and one that turns into a tangled, abraded mess.

What Is Fleet Angle?

The fleet angle is the angle formed between the cable as it approaches the drum and a line perpendicular to the drum's axis — in practical terms, how far off "straight on" the cable is when it lands on the drum. If the cable feeds in perfectly square to the drum, the fleet angle is zero. As the winding point moves across the width of the drum, or as the cable's feed point sits off to one side, the angle opens up.

Fleet angle matters because the cable has to lay down neatly across the full width of each layer. If it arrives at too steep an angle, it can't sit properly against its neighbour, and the winding starts to misbehave.

Recommended Fleet Angles

Most reel manufacturers and crane designers recommend keeping fleet angles between about 0.5 degrees and 1.25 degrees. Within this range, the cable lays down cleanly and the winding is orderly. Angles approaching 1.5 degrees are generally still considered acceptable, though you're getting towards the edge of the comfortable zone. Once you push past about 2 degrees, you're in trouble — angles greater than 2 degrees are commonly associated with winding problems and premature cable damage.

These limits are about geometry, not arbitrary caution. The cable physically cannot lay neatly when it's arriving at a steep sideways angle, and the steeper the angle, the worse the consequences.

Problems Caused by Poor Fleet Angle Design

When the fleet angle is too large, several things go wrong, and they compound one another. The cable can cross over itself instead of laying side by side, creating raised crossover points that disrupt every layer above them. The winding becomes uneven, with cable bunching in some places and gapping in others. The cable can climb up against the flange instead of turning back across the drum, and when it then gets trapped by the next wrap, it can be crushed severely against the flange or against the layer below.

All of this also wastes drum capacity. A drum that should hold its full calculated length ends up holding less, because the messy winding doesn't pack efficiently — the crossovers and uneven layers consume space that should have held neat turns. So a poor fleet angle hurts you twice: it damages the cable and it reduces the effective capacity you so carefully calculated. Getting the geometry of the cable guide and the drum position right — so that the fleet angle stays within limits across the full travel — is just as important as the capacity calculation itself.

Managing Fleet Angle in Practice

Knowing the limit is one thing; staying within it is another. There are a few common ways reeling systems keep the fleet angle in check. The simplest is distance: the further the cable guide or last sheave sits from the drum, the smaller the fleet angle for a given drum width, because the sideways offset becomes a smaller fraction of the overall run. This is why you'll often see guide sheaves mounted well back from the reel rather than right up against it. The trade-off is space — a longer lead means a larger footprint for the whole assembly.

A second approach is a level-wind or spooling device, which moves the cable feed point back and forth in time with the winding so the cable always arrives close to square to the current winding position. Level-wind mechanisms add cost and complexity, and they introduce their own maintenance burden, but on systems where the drum is necessarily wide and the lead distance is limited, they can be the only practical way to keep the fleet angle acceptable. A third approach is simply to keep the drum narrower and accept more layers, trading the fleet-angle problem of a wide drum for the crushing-pressure problem of a tall stack — which is a reminder that these design parameters are all interconnected, and improving one often pressures another. The art of reeling design is finding the combination of barrel diameter, flange diameter, traverse width, lead distance and guide arrangement that keeps every parameter inside its limits at once.

Common Drum Capacity Calculation Mistakes

Over the life of a reeling system, the same handful of mistakes show up again and again. Knowing them in advance is the cheapest way to avoid them.

The first and most common is using conductor size instead of the actual cable outer diameter. As we covered earlier, the conductor cross-section tells you nothing about how much space the finished cable occupies. Base your calculation on conductor size and every downstream figure — turns per layer, number of layers, total capacity — will be wrong.

The second is ignoring cable weight during reel selection. Designers focused on length sometimes forget that the cable's mass drives the motor torque, bearing loads and structural requirements. A reel sized purely on capacity can be badly undersized on load.

The third is failing to maintain sufficient dead wraps on the drum. Dead wraps are the turns of cable that must remain wound on the drum even at maximum pay-out, both to keep tension on the cable termination and to avoid stressing the connection point. Forget to allow for dead wraps and your usable travel distance falls short of what you calculated.

The fourth is overfilling the drum and eliminating the required clearance. Squeezing in extra layers or winding right up to the flange edge to gain a bit more capacity removes the safety margin and invites the cable to climb the flange or jump off entirely.

The fifth is ignoring fleet angle limitations. A capacity calculation that doesn't account for the fleet angle across the full travel range can produce a drum that winds badly and never achieves its theoretical capacity in service.

The sixth is selecting a drum diameter that doesn't satisfy the minimum D/d requirement. Choosing a compact drum to save space or cost, without verifying the D/d ratio for the specific cable, guarantees premature cable failure no matter how perfect the rest of the design.

Real-World Failure Case Studies

Principles stick better when you see what happens if you ignore them. These four scenarios reflect the kinds of failures that recur across ports, mines and material handling sites.

Case Study 1 — Overfilled Drum Causing Cable Crushing

A reel was filled with more winding layers than the design intended, in an effort to extend the crane's travel range without changing the drum. The extra layers worked initially, but the additional radial pressure on the inner layers steadily increased as the drum filled and emptied through each travel cycle. Over time, the crushing pressure deformed and damaged the cable jacket on the lower layers, and the compression eventually compromised the insulation. The cable failed from the inside out, in the layers no one could see, and the root cause was simply too many layers for the cable to bear.

Case Study 2 — Poor Fleet Angle Causing Cable Pile-Up

On another system, the cable guide had been positioned in a way that produced an excessive fleet angle at the extremes of travel. The cable couldn't lay neatly, so it began crossing over itself and piling up unevenly. The crossover points created high spots that abraded against the cable in the layers above as the drum wound and unwound. Within months the outer sheath in those zones was worn through from the constant rubbing, and the cable had to be replaced long before its rated life — a failure caused entirely by geometry, not by any defect in the cable.

Case Study 3 — Incorrect Re-Spooling Practices

A cable replacement went wrong during installation. The new cable was wound onto the drum with inadequate tension, so the lower layers went on loose. Everything looked fine at first, but as the crane began operating and the outer layers were wound on tightly, the tight outer wraps pulled down into the loose lower layers, disturbing them and creating winding defects. The disturbed layers then caused uneven take-up and localised stress, and the system never wound cleanly afterwards. The lesson: proper tension during initial spooling is not optional — loose lower layers come back to haunt you.

Case Study 4 — Undersized Drum Diameter

A facility fitted a cable to a drum whose barrel diameter produced a D/d ratio well below the minimum for that cable type. The bending on the first layer was far tighter than the cable was designed to tolerate. Cycle after cycle, the conductors fatigued and the jacket cracked under the repeated tight flexing. The cable failed dramatically early, and because the cable itself was a quality product, it took some investigation to realise the problem had never been the cable — it was a drum that was simply too small for it.

Drum Capacity Design Checklist

Before signing off on any reeling system design, run through this checklist. Each item corresponds to something covered above, and skipping any one of them is how the failures in the case studies begin.

Confirm the actual cable outer diameter, measured or taken from a verified datasheet — never the conductor size. Establish the cable weight per metre and the total cable load on the drum. Define the required crane travel distance, including a margin for the future. Confirm the drum width, the barrel diameter and the flange diameter. Verify the D/d ratio against the recommended range for your specific cable type. Check the fleet angle stays within limits across the full travel. Decide on the number of winding layers, balancing capacity against crushing pressure rather than simply filling to the maximum. Allow for the required dead wraps that stay on the drum at full pay-out. Maintain adequate clearance between the top layer and the flange. And finally, consider future expansion — if the travel requirement might grow, build some headroom in now rather than rebuilding the whole system later.

Application-Specific Considerations

The principles in this guide apply universally, but different applications stress the reeling system in different ways, and a drum that's ideal for one machine may be a poor choice for another. It pays to understand how the demands shift from one type of equipment to the next.

Ship-to-Shore and Gantry Cranes

STS container cranes, along with RTG and RMG gantry cranes, are among the most demanding reeling applications because they combine long travel distances with heavy medium-voltage cables and continuous, high-cycle operation. A busy container terminal works its cranes hard around the clock, so the reeling cable on these machines accumulates flexing cycles faster than almost any other application. That makes the D/d ratio especially critical here — there's no margin for an undersized barrel when the cable is being worked this intensively. These systems also tend to demand the largest capacities, because the crane may need to travel the full length of a quay. The combination of long travel and heavy cable pushes drum dimensions towards the upper end, and the weight considerations we discussed become a genuine structural design problem rather than an afterthought.

Stacker Reclaimers and Ship Loaders

Bulk material handling machines such as stacker reclaimers, ship loaders and bucket wheel reclaimers operate in some of the harshest environments going — coal dust, iron ore fines, salt-laden coastal air and abrasive grit are all part of daily life. The reeling system here has to contend not just with the mechanical demands of winding but with contamination working its way into the winding and onto the cable surface. Abrasive dust trapped between cable layers accelerates sheath wear, so neat, clean winding matters even more than usual, and the fleet angle discipline that keeps the winding tidy directly extends cable life. These machines often travel long distances along a stockyard, so capacity is significant, but the environmental factors mean designers frequently choose robust, heavily sheathed cables — which are larger in diameter and demand correspondingly larger drums to maintain the D/d ratio.

Mining Excavators and Mobile Equipment

Large mining excavators and similar mobile equipment trail heavy power cables that must reel as the machine repositions. The duty here is brutal: the cable is dragged across rough ground, exposed to impact and abrasion, and reeled under conditions far less controlled than a crane on smooth rails. Tension control becomes especially important, because a cable that goes slack on the ground can be run over or snagged. The drums on this equipment are built tough, and the cable specifications are equally rugged, which again drives up cable diameter and drum size. The remoteness of many mine sites also raises the stakes on reliability — a cable failure on a remote excavator means a long wait for parts and a long, expensive downtime, so conservative drum design that errs towards longer cable life is usually money well spent.

Automated Warehouses and Indoor Cranes

At the gentler end of the spectrum, automated warehouse cranes and indoor material handling systems use lighter, smaller cables in clean, controlled environments. The loads are lower and the contamination problems largely absent, so the drums can be more compact and the cable lighter. But these systems often run at high cycle rates — an automated storage and retrieval machine might complete thousands of movements a day — so even though each cycle is gentle, the sheer number of cycles means fatigue life still matters. Here the temptation is to under-spec the drum because the cable is small and the loads are light, but the high cycle count rewards respecting the D/d ratio just as much as on a big crane. The failure mode is slower to appear, but it appears all the same if the geometry is wrong.

Maintenance and In-Service Inspection

A correctly designed drum is the foundation, but reeling cable life also depends on what happens after commissioning. A few maintenance habits make an enormous difference to how long the calculated capacity actually serves you.

Regular visual inspection of the winding is the single most valuable practice. A maintenance person who knows what good winding looks like can spot trouble early — cable starting to climb the flange, crossover points forming, uneven layering, or the beginnings of jacket damage on the visible outer layers. Catching these signs early, while they're still cosmetic, lets you correct the cause before the cable is destroyed. Winding that has started to misbehave rarely fixes itself; it gets worse cycle by cycle until something fails.

Checking and maintaining the tension system is equally important. The consistent tension that keeps the winding neat depends on the tensioning mechanism working as designed. A torque motor that's drifting, a spring that's fatigued or a magnetic coupling that's slipping will let the tension wander, and wandering tension shows up as loose lower layers and untidy winding — the exact conditions that led to failure in the re-spooling case study. Periodic verification that the tension is within specification across the travel range heads off a whole category of problems.

Inspecting the cable surface for the signs of trouble we've discussed — jacket cracking that hints at over-tight bending, abrasion bands that point to fleet angle or crossover problems, and crushing marks that suggest overfilling — turns the cable itself into a diagnostic tool. The pattern of wear tells you what's wrong with the system, not just that something is wrong. A band of abrasion at one position across the width points to a fleet angle or layer-transition issue; crushing on the inner layers points to too many layers; cracking concentrated where the cable bends tightest points to a D/d problem. Reading these signs lets you fix the root cause rather than simply replacing cable after cable and hoping.

Finally, keeping good records of cable life closes the loop on your design. If a cable consistently reaches or exceeds its expected life, your drum design is sound. If cables keep failing early, the records will often point you towards the cause — a particular failure mode recurring, a particular section of travel always implicated — and back towards the part of the drum design that needs revisiting. The drum calculation you did at the start isn't a one-off exercise; it's a hypothesis that in-service experience either confirms or corrects.

Drum capacity calculation is not simply a matter of working out how much cable will fit. As this guide has shown, a successful reeling system rests on the interaction of many factors: the geometry of the drum, the construction and outer diameter of the cable, the minimum bending radius, the D/d ratio, the fleet angle, the cable weight and the winding behaviour layer by layer. The length figure that comes out of the calculation is only meaningful when every one of those factors has been respected.

The recurring theme is that the cable is rarely the villain. Time and again, premature failures trace back to a drum that was too small, too full, poorly positioned or wound under the wrong tension. Treat the drum design with the same care you'd give to specifying the cable, and the cable will reward you with a long, reliable service life. Cut corners on the drum, and even the best cable will fail early. Across Australia's ports, mines and material handling facilities, getting this right is the difference between a system that runs quietly for years and one that keeps the maintenance crew busy.

Expert Summary

Having worked through the full method, here are the points worth carrying away:

Start with the cable, not the drum. Every calculation depends on the actual measured outer diameter and the real weight per metre. Get those two numbers right from a verified source and the rest of the design has a solid foundation. Get them wrong — particularly by using conductor size — and nothing downstream can be trusted.

The D/d ratio is non-negotiable. Before you calculate a single metre of capacity, confirm the barrel diameter satisfies the D/d ratio for your cable type — roughly 12 to 18 for low voltage, 18 to 25 for medium voltage, and above 20 for fibre optic hybrids. A drum that fails this check will destroy any cable you put on it, regardless of how clever the rest of the design is.

Capacity and cable life pull in opposite directions. More layers means more storage but more crushing pressure on the lower cable. Resist the temptation to fill to the maximum. Where you need more capacity, reach for a wider drum or larger flange before you reach for more layers.

Use the right calculation method for the stage you're at. Quick approximate or volume-based methods are fine for early feasibility and narrowing options. When the number drives real decisions, switch to the layer-by-layer geometric method — it's the only one that honestly accounts for each layer winding at a larger diameter than the one below.

Fleet angle is the silent capacity killer. A drum can have a perfect calculated capacity and still wind badly if the fleet angle strays beyond about 1.25 to 1.5 degrees. Keep it in range across the full travel, or the messy winding will cost you both cable life and effective capacity.

Design for the whole life of the system. Allow for dead wraps, keep clearance to the flange, spool the cable on under proper tension, and build in headroom for future travel requirements. The cheapest reeling failure is the one you designed out at the start.

Treat the drum as a precision component rather than a passive storage reel, and the reeling system becomes one of the most reliable parts of the machine rather than one of the most troublesome.
