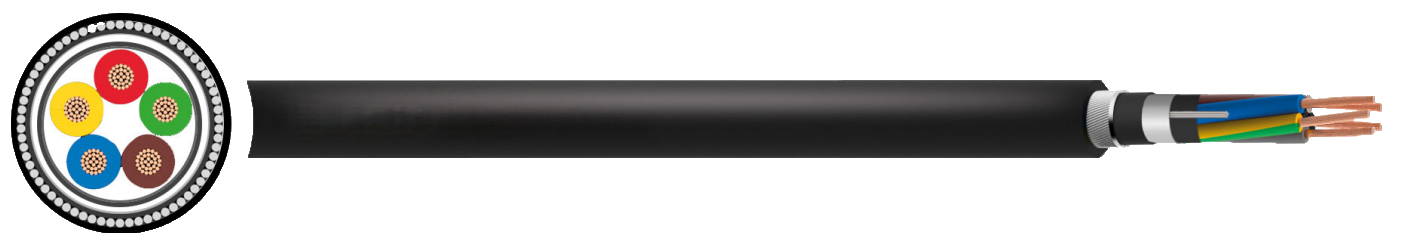

Hydrocarbon Resistant XLPE CAM SWA Armored 1kV Power Cable
Low Voltage Cable with Chemical and Mechanical Protection for Industrial and Underground Installations
$15.00
APPLICATION
These cables are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants and where aliphatic and aromatic hydrocarbon may be present or where require chemical and mechanical protections.
CHARACTERISTICS
Voltage Rating (Uo/U)
0.6/1kV
Temperature Rating
-20°C to +60°C
CONSTRUCTION
Conductor
Class 1 Solid (RE) or Class 2 Stranded (RM) Copper
Insulation
XLPE (Cross-Linked Polyethylene)
Inner Sheath
PVC (Polyvinyl Chloride)
Screen
Aluminum/Polyethylene tape
Drain Wire
Tinned copper
Inner Sheath
HDPE (High Density Polyethylene)
Intermediate Sheath
Polyamide
Armour
Galvanized steel wires (Single core: aluminum wires)
Outer Sheath
Special PVC (Polyvinyl Chloride)
Core Identification
1 Core (choice): Red Black
2 Cores: Red Black
3 Cores: Red Yellow Blue
4 Cores: Red Yellow Blue Black
5 Cores: Red Yellow Blue Black Green
7 Cores and Above: Black with White Numbers
Sheath Colour
● Black
STANDARDS
IEC 60502-1, IEC 60332-3-22
