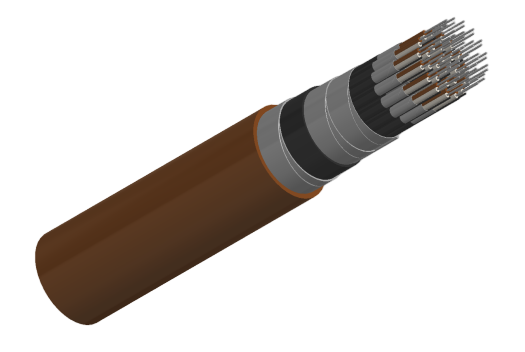

Individual & Overall Screened & Armored Thermocouple Cable
Cable
Applications
These cables are suitable for underground use in industries where hydrocarbon may be present and where chemical and mechanical protections are required.
Standards
IEC 60584-3
NF C 42-324

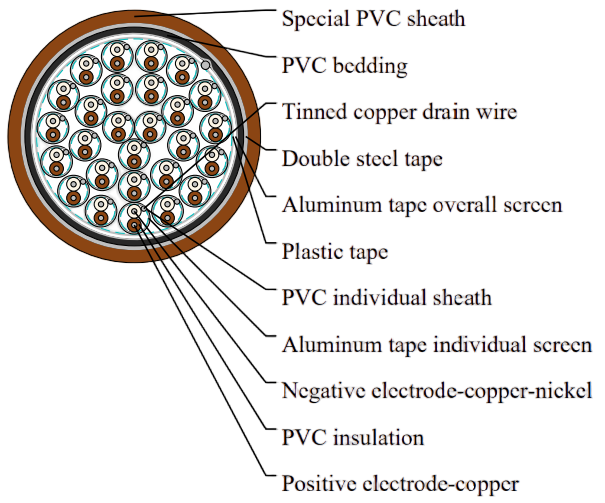

Construction
Conductor : Metal according to thermocouple type
Insulation : PVC
Individual screen : Aluminum/polyester tape with tinned copper drain wire
Individual sheath : PVC
Overall screen : Aluminum/polyester tape with tinned copper drain wire
Inner sheath : PVC
Armor : Double steel tape
Sheath : Special PVC. Color depends on thermocouple type
Properties
Flame retardance : NFC 32070 C2, IEC 60332-1-2
Operating voltage : 250V
Operating temperature : -20~60°C
Max. conductor temperature in service : 70°C
Chemical resistance : Aliphatic and aromatic hydrocarbon resistance
