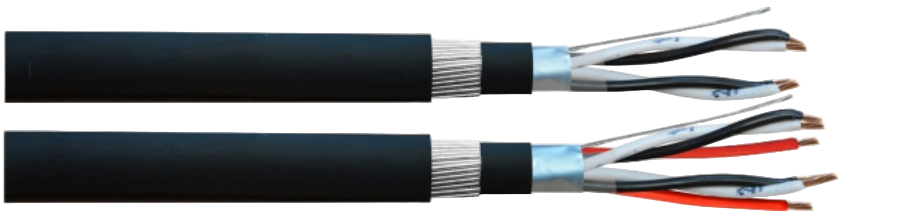

RE-2Y(St)HSWAH Armoured LSOH Instrumentation Cable 300/500V
Halogen-free, UV- and flame-resistant data cable with steel wire armour for indoor, outdoor, and direct burial installations.
$15.00
Technical data:
Thermal parameters:
Temperature range:
operating temperature: -40 °C to 80 °C installation temperature: -5 °C to 80 °C

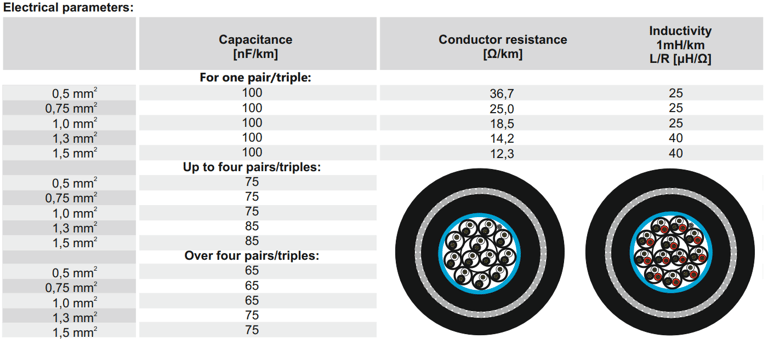

Electrical parameters:
Operating voltage (peak value): U = 500 V Test voltage:
Core/core: 2000 V Core/screen: 2000 V
Insulation resistance: > 5 GΩ x km
Mechanical parameters:
Min. bending radius: 10 x Ø
Design:
Conductors: bare, stranded copper conductors class 2 as per EN 60228
Insulation: polyethylene (PE)*
Core identification:
Pairs: core A – black, core B – white (black numbering on the white core)
Triples: core A – black, core B – white, core C – red (black numbering on the white core)
Core arrangement:
Pairs: cores twisted in pairs, pairs twisted together and wrapped with polyester tape (PET)
Triples: cores twisted in triples, triples twisted together and wrapped with polyester tape (PET)
Application:
Cables designed for data transmission in numerical control systems ensuring optimum transmission of data up to 200 Kbit/s. Collective electrostatic screen protects against external interferences. Cables are suitable for application indoor and outdoor, in dry and damp rooms and also for direct burial as well as in conduits in places that are subject to mechanical stresses mainly from tensile forces. Outer sheath is UV resistant. Cables classified according to EN 50575 (CPR).
