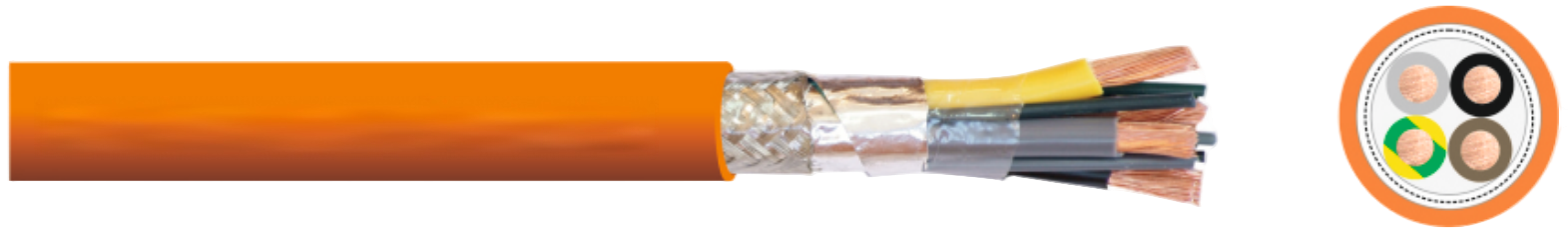

2XSLCH-J Flexible Halogen-Free Motor Connection Cable
EMC-Compatible for Frequency Converters: Rated 0.6/1kV, Improved Capacity, Flame Retardant, Low Smoke Emission, Compliant with EN 50575 Standard
$15.00
Application:
Cables with special construction, used to supply power to motors from frequency converters (VFD) while maintaining full electromagnetic compatibility (EMC). The XLPE insulation improves current carrying capacity maintaining at the same time low capacitance in comparison to PVC insulated cables. The cables are suitable for both fixed installation and flexible connections in industrial equipment, process lines, and machines operating in dry and damp rooms, also in public buildings. The entire cable is made of halogen-free materials and does not emit noxious substances under fire conditions. Cables classified according to EN 50575 (CPR).
Technical data:
Thermal parameters:
Operating temperature:
fixed installation: -40 °C to 80 °C
flexible connections: -5 °C to 80 °C
Max. conductor operating temperature: 90 °C Max. conductor temperature in shortcircuit
(1 sec.): 250 °C
Electrical parameters:
Operating voltage: U0/U = 0,6/1 kV
Test voltage: 4000 V
Insulation resistance: > 200 MΩ x km
Capacitance:
conductor/conductor =70 to 250 nF/km conductor/screen = 110 to 410 nF/km
Mechanical parameters:
Min. bending radius:
Ø < 12 mm – 5 x Ø
Ø = 12 ÷ 20 mm – 7,5 x Ø Ø > 20 mm – 10 x Ø
Design:
Conductors: bare copper conductors, multi-stranded, class 5
acc. to EN 60228
Insulation: cross-linked polyethylene (XLPE)
Core identification: black, brown, grey, green-yellow
Core arrangement: cores twisted together
Screens: electrostatic screen made of aluminium backed poliester
tape and a second screen made of tinned copper wire braid, total screen coverage 100%
Outer sheath: special halogen-free compound, self-extinguishing
and flame retardant (acc. to EN 60332-1-2, EN 60332-3-22, cat. A); colour: orange
Special properties:
- halogen-free
- low capacitance
- improved current carrying capacity
- fulfillment of electromagnetic compatibility (EMC) requirements*
- self-extinguishing sheath
