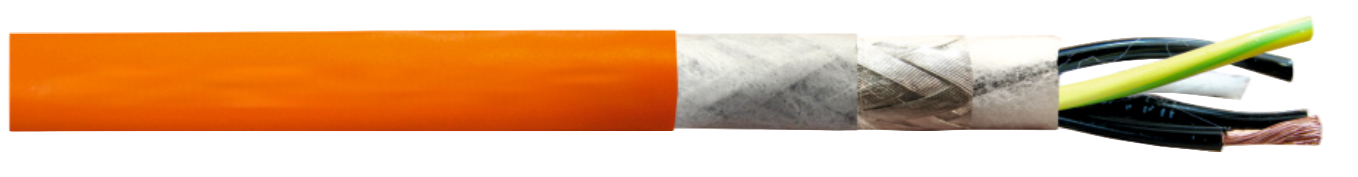

510 Servo Flexible Drag Chain Cable for Motor Connections
Durable, halogen-free servo cable with high flexibility, oil and chemical resistance, designed for long service life in dynamic applications.
$3.00
Application:
Higly flexible servomotor and feedback cables for connections between servo controler and motor. Intended especially for use in power chains. Designed and tested to withstand at least 10 million bending cycles in a drag chain. Cables are oil, wear and tear resistant , halogen-free and cold flexible . Cables classified according to EN 50575 (CPR).
Technical data:
Thermal parameters:
Operating temperature:
fixed installation: -40 °C to 80 °C
flexible connections: -30 °C to 80 °C
Electrical parameters:
Operating voltage:
power cores: U0/U = 600/1000 V
control cores: 24 VAC/DC
Test voltage (50 Hz):
power cores (50 Hz): 4000 V
control cores (50 Hz): 1000 V
Mechanical parameters:
Min. bending radius:
flexible connections:
up to 16 mm²: 7,5 x Ø
from 25 mm² up: 10 x Ø
fixed installations: 4 x Ø

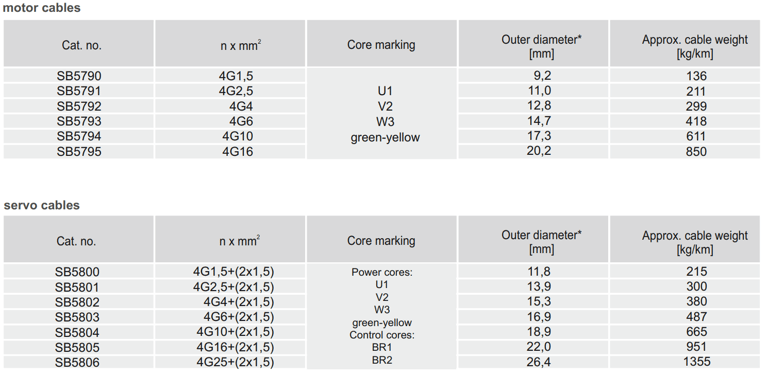

Design:
Conductors: highly flexible, copper conductors, multi-stranded class 6 acc. to EN 60228
Insulation: special halogen-free TPE
Screen: tinned copper wire braid
Outer sheath: special PUR compound, resistant to oils and industrial coolants, low adhesive; colour: orange
