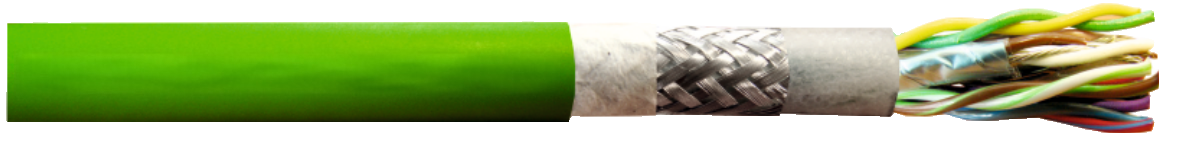

510 Encoder Flexible Drag Chain Cable for Servo Systems

Halogen-free, oil- and chemical-resistant feedback cable with high mechanical durability for reliable encoder and resolver connections.

$5.00

Application:Highly flexible servomotor and feedback cables for connections between servo controller and encoder. Intended especially for use in power chains, Designed and tested to withstand at least 10 million bending cycles in a drag chain. Cables are oil, wear and tear resistant, halogen-free and cold flexible. Cables classified according to EN 50575 (CPR).

Technical data:

Thermal parameters:

Operating temperature:

fixed installation: -40 °C up to 80 °C

flexible connections: -30 °C up to 80 °C

Electrical parameters:

Operating voltage:

signal cables: 30 VAC/DC

Test voltage (50 Hz): 500 V Mechanical parameters:

Min. bending radius:

flexible connections: 8 x Ø

fixed installation: 4 x Ø
