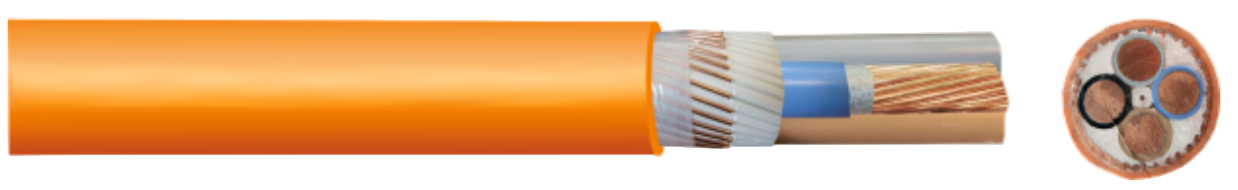

NHXCH FE180/PH120/E90 MICA Fire-Resistant Halogen-Free Power Cable
Indoor Use with 90-Minute Fire Integrity, Low Smoke Emission, and Concentric Earth Conductor for High Safety Applications
$15.00
Application:Fire resistant power and control cables have E90 fire integrity function which means the assurance of power supply or control under fire conditions for 90 minutes. They are intended for use in buildings with increased fire safety requirements due to high concentration of people, material and cultural assets of high value (sky scrapers, hospitals, shopping centres, tunnels, museums, cinemas, theatres). Cables can be used for power supply or control (lighting, lifts, fire-fighting equipment, pumps). They can be used in fixed installations inside buildings. In case of outdoor application cables should be secured against UV radiation and the external factors. Cables with improved fire characteristic E90 must be installed on the supporting systems tested according to DIN 4102-12. |
Technical data:
Thermal parameters:
Temperature range:
fixed installation: -30 °C to 90 °C
min. installation temp: -5 °C
max. installation temp: 50 °C
Electrical parameters:
Permissible conductor operating temperature: 90 °C
Permissible conductor temperature during short circuit: 250 °C
Operating voltage: U0/U = 0,6/1 kV
Test voltage: 4 kV
Conductor resistance (at 20 °C): acc. to EN 60288 cl. 1 and 2, IEC 60288 cl. 1 and 2
Mechanical parameters:
Minimum bending radius: 15 x Ø
Design:
Conductors: Insulation: Core colors: Inner sheath: Concentric conductor: Outer sheath: | bare copper conductor, solid (cl. 1) or stranded (cl. 2) according to EN 60228 and IEC 60228 mica tape wrapping and cross linked polymer HXI1 acc. to DIN VDE 0266 acc. to information - chapter - Technical Data special halogen-free compound copper wires over the inner sheath with helically applied copper tape halogen-free polymer compound HM4 acc. to DIN VDE 207 p.24; colour: orange |
