JE-LiHCH
Cable
Application and Description
JE-LiHCH halogen-free cable with improved characteristics in the case of fire is used for telephone transmission, measuring and signal purposes. The copper shielding design (C) protects the transmission circuits against electrical interferences. A fire propagation is prevented through high oxygen index of the insulation material and produce no corrosive gases in case of fire. Those are preferable used for telecommunication indoor installations and in special cases the outdoor installation is permitted under protection against sunlight. These cables are suitable for fixed installation in areas with danger of fire, in dry and damp environments as well in and under plaster.
Standard and Approval
VDE 0815, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

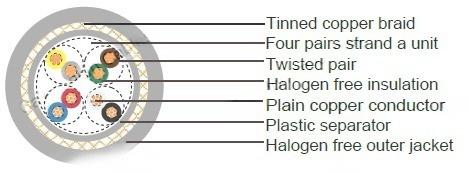

Cable Construction
Plain copper conductor 7x0.3mm |
Halogen-free core insulation, compound type HI1 or HI2 to DIN VDE part 23 |
Core identification to DIN VDE 0815 (with ring colours and ring groups) |
2 conductors twisted in a pair, 4 pairs to a unit and several units stranded in layers (for 2 pairs cable, 4 |
Plastic foil separator |
85% tinned copper braid, 0.2mm |
Halogen free outer jacket type HM1 or HM2 to DIN VDE 0207 part 24 |
Technical Characteristics
Working voltage | 225 volts |
Test voltage | core/core 500 V |
Minimum bending radius | 7.5 x Ø |
Flexing Temperature | -5º C to +50º C |
Static temperature | -30º C to +70º C |
Flame retardant | IEC 60332.1-2 |
Mutual Capacitance | Max.120 nF/km at 800 Hz |
Capacitance Unbalance | Max. 200 pF/100 m (20% of the values, but one value up to 400 pF is allowed) |
Halogen free | DIN EN 50267/IEC 60754 |
Smoke density | DIN EN50268/IEC 61034 |
Insulation resistance | 100 MΩ x km |
