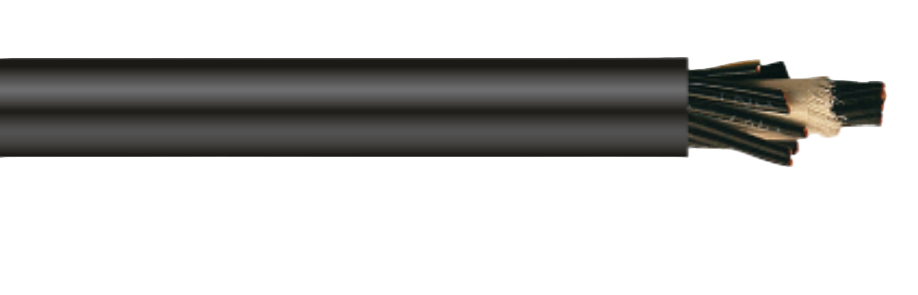

K12YSTCU11Y, K2YSTFU11Y Halogen-Free Lift Control Cables
With or Without Textile Supporting Element for Medium Mechanical Stress, Suitable for Dry and Humid Rooms
$5.00
Structure & Specifications |

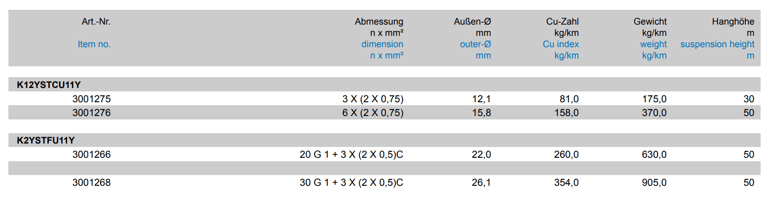

conductor material bare copper strand conductor class acc. to DIN VDE 0295 class 6 resp. IEC 60228 cl. 6 core insulation special thermoplastic compound core identification acc. to VDE 0293 black with white numerals with GNYE, 3 x (2 x 0,5) DIN 47100 stranding stranded in pairs, cores stranded in layers outer sheath PUR sheath colour black, RAL 9005 printing yes rated voltage 0,5 mm² = 300 V; > 1,0 mm² = Uo/U 300/500 V current carrying capacity acc. to DIN VDE, see Technical Guideline min. bending radius fixed 15 x d min. bending radius moved 15 x d speed max. 1,6 m / s suspension height see table operat. temp. fixed min/max -30 °C / +70 °C operat. temp. moved min/max -30 °C / +70 °C halogen free acc. to IEC 60754-1 burning behavior self-extinguishing and flame retardant acc. to IEC 60332-2-2 standard similar to DIN VDE 0282 |
Application |
halogen-free lift control cable with or without textile supporting element for medium me- chanical stress. Suitable for dry and humid rooms. |
Special Features |
• K12YSTCU11Y: shielded pairs • K2YSTFU11Y: shielded elements as pairs • K2YSTFU11Y 20 G 1 + 3 X (2 X 0,5)C with steel supporting element • EMC • notable protection to people and property value • free from lacquer damaging substances and silicone (during production) |
Remarks |
• conform to RoHS • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE • We are pleased to produce special versions, other dimensions, core and jacket co- lours on request. • Available accessory you'll find on pages 15.35.XX |
