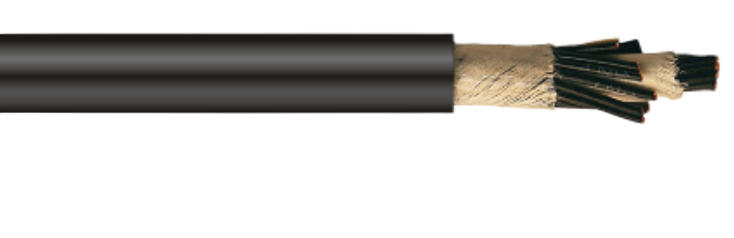

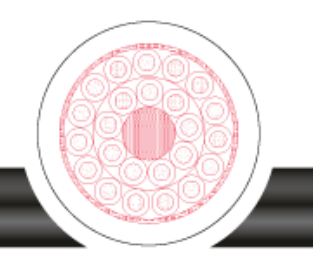

K12YSTU11Y Halogen-Free Lift Control Cable
With Textile Support for Medium Mechanical Stress, Suitable for Dry and Humid Environments
$10.00
Structure & Specifications | |
conductor material conductor class core insulation core identification stranding outer sheath sheath colour printing rated voltage testing voltage current carrying capacity min. bending radius fixed min. bending radius moved speed suspension height operat. temp. fixed min/max | bare copper strand acc. to DIN VDE 0295 class 6 resp. IEC 60228 cl. 6 special thermoplastic compound acc. to VDE 0293 black with white numerals with GNYE cores stranded in layers PUR black, RAL 9005 yes Uo/U 300/500 V 3 kV acc. to DIN VDE, see Technical Guideline 12 x d 12 x d max. 1,6 m / s max. 50 m -50 °C / +90 °C |
Structure & Specifications | |
conductor material conductor class core insulation core identification stranding outer sheath sheath colour printing rated voltage testing voltage current carrying capacity min. bending radius fixed min. bending radius moved speed suspension height operat. temp. fixed min/max | bare copper strand acc. to DIN VDE 0295 class 6 resp. IEC 60228 cl. 6 special thermoplastic compound acc. to VDE 0293 black with white numerals with GNYE cores stranded in layers PUR black, RAL 9005 yes Uo/U 300/500 V 3 kV acc. to DIN VDE, see Technical Guideline 12 x d 12 x d max. 1,6 m / s max. 50 m -50 °C / +90 °C |
operat. temp. moved min/max -30 °C / +90 °C burning behavior self-extinguishing and flame retardant acc. to IEC 60332-2-2 resistant to oil acc. to EN 60811-2-1 standard similar to DIN VDE 0282 | |
Application |
halogen-free lift control cable with textile supporting element for medium mechanical stress. Suitable for dry and humid rooms. |
Special Features |
• notable protection to people and property value • free from lacquer damaging substances and silicone (during production) • halogen-free |
Remarks |
• conform to RoHS • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE • We are pleased to produce special versions, other dimensions, core and jacket co- lours on request. • Available accessory you'll find on pages 15.35.XX |
