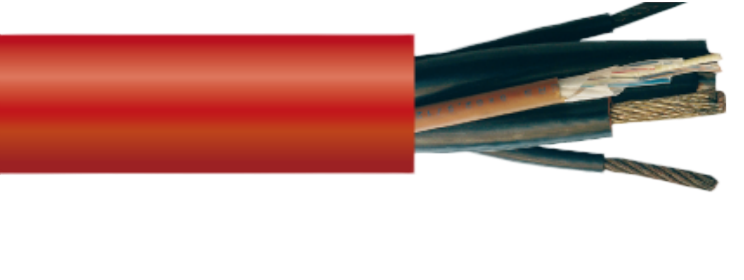

KSM-S (N)TSCGEWÖU / KSM-S (N)TSCGEWÖU + LWL Reeling Power Cable

Heavy-duty reeling and trolley cable for power and data transmission under extreme mechanical stress in cranes, mobile equipment, and outdoor environments

$20.00

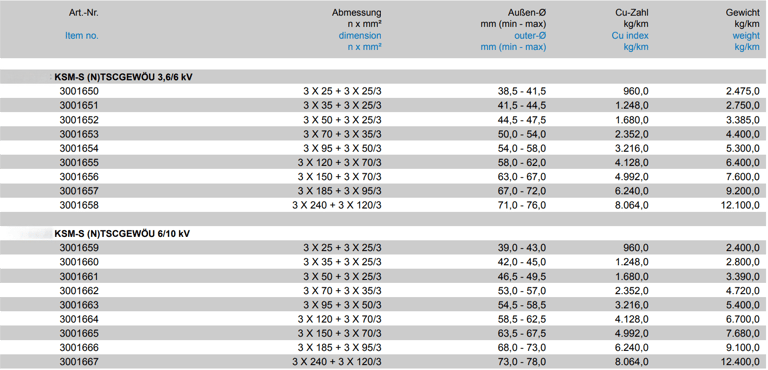

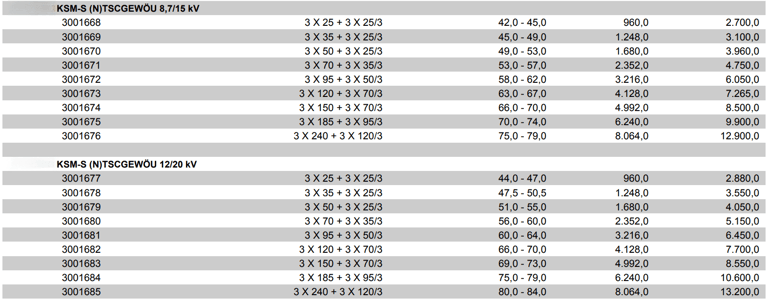

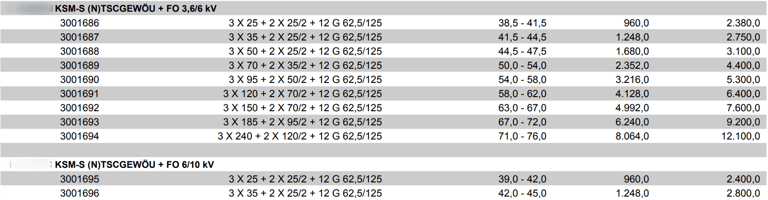

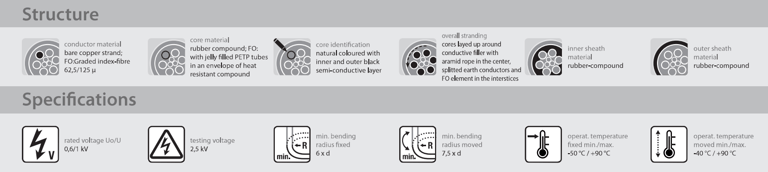

Structure & Specifications

conductor material bare copper strand; FO:Graded index-fibre 62,5/125 µ

conductor class acc. to DIN VDE 0295 class 5 resp. IEC 60228 class 5

core insulation rubber compound; FO: with jelly filled PETP tubes in an

envelope of heat resistant compound

core identification natural coloured with inner and outer black semi-con-

ductive layer

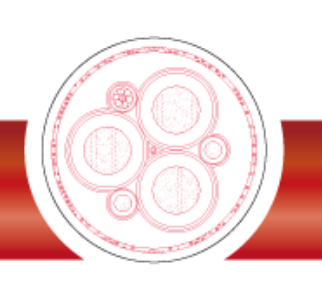

overall stranding cores layed up around conductive filler with aramid rope

in the center, splitted earth conductors and FO element in the interstices

inner sheath material rubber compound

outer sheath rubber compound

sheath colour red with yellow stripe

printing

rated voltage 3,6/6 kV to 12/20 kV

testing voltage 11 kV to 29 kV

current carrying capacity acc. to DIN VDE, see Technical Guideline

other characteristics FO at 850 nm: attenuation: 3,3 dB / km bandwidth: ≥

200 MHz x km numeric aperture: 0.27 ± 0.02 refraction

index: 1,497 FO at 1300 nm: attenuation: 0,9 dB / km

bandwidth: ≥ 500 MHz x km numeric aperture: 0.27 ± 0.02 refraction index: 1,493

min. bending radius fixed acc. to DIN VDE 0298 part 3

min. bending radius moved acc. to DIN VDE 0298 part 3

speed max. 180 m / min

torsion ± 50 ° / m

operat. temp. fixed min/max -40 °C / +80 °C

operat. temp. moved min/max -25 °C / +80 °C temp. at conductor +90 °C

burning behavior self-extinguishing and flame retardant acc. to IEC

60332-1

standard similar to DIN VDE 0250

Application

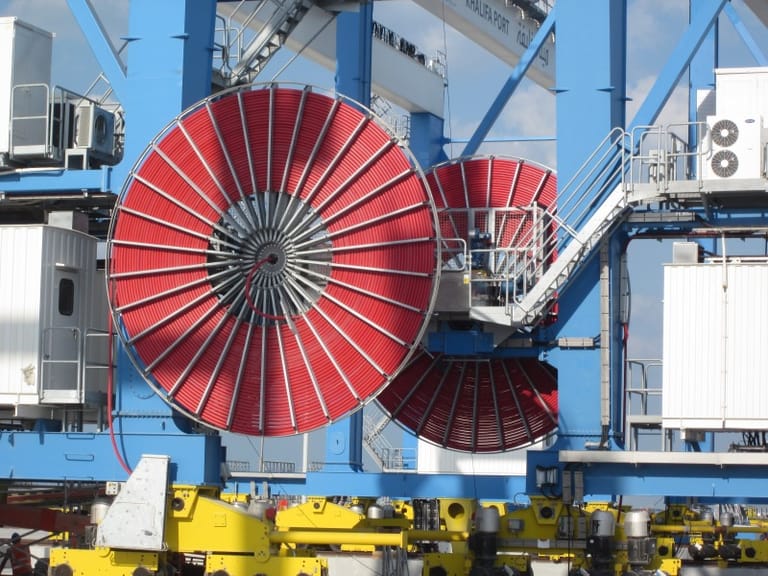

reeling power cable also for trolley systems for power resp. data transmission for high and extreme mechanical stress such as dynamic tensile stress, multiple direction chan- ges in different levels. Especially for mobile facilities such as fast running container cra- nes, crane facilities, mobile heavy equipment and diggers. Suitable for dry, humid and wet rooms and for outdoor use.
