KX Series Coaxial Cables 50 Ω/75 Ω
Cable
Application
These radio frequency cables are suitable for high frequency data transmission (communication equipment, radar, instrumentation equipment) and video signal transmission.
Standards
In line with MIL C17
IEC 60092-360
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

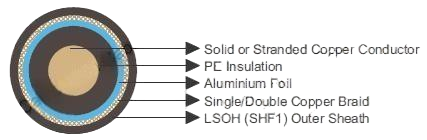

Construction
Conductors : Solid or stranded CCS (Bare copper plated steel), BC (Bare copper).
Insulation : PE.
Fire Barriers : Aluminium foil.
Screen : Single or double braid. Bare, tinned or silvered copper
Outer Sheath : LSOH (SHF1).
Electrical Characteristics
KX 3B | KX 6A | KX 8 | ||
Characteristic Impedance | Ω | 50 | 75 | 75 |
Capacitance | pF/m | 106 | 72 | 72 |
Velocity | % | 66 | 66 | 66 |
Attenuation @200MHz | dB/100m | 45 | 20 | 12 |

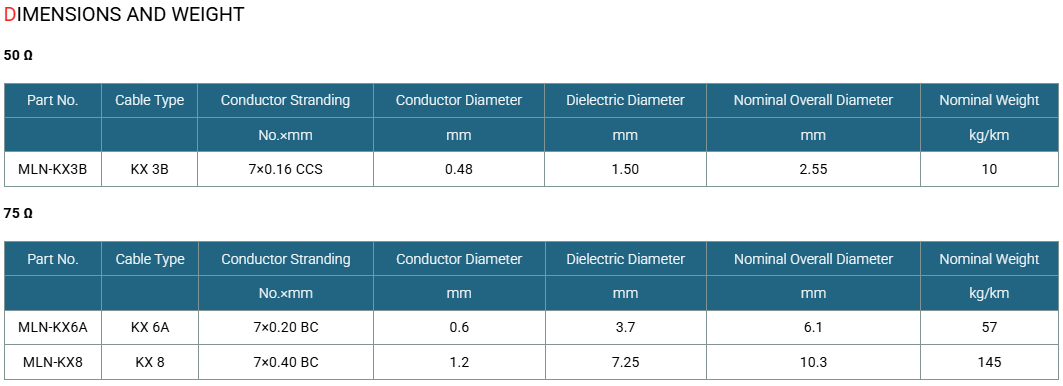

Mechanical and Thermal Properties
Bending Radius for Fixed Installations : 10×OD
Temperature Range : -30℃ ~ +60℃
