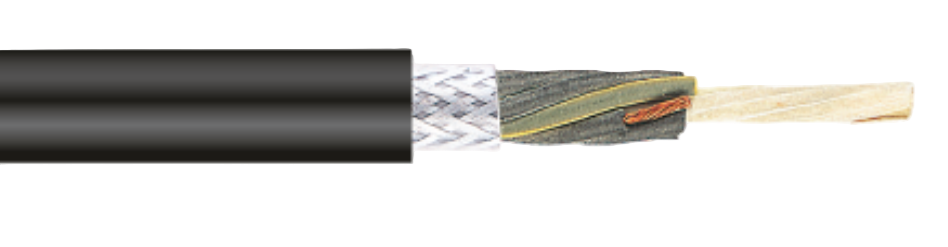

KYSTCY, KYSTCUY, KYSTFUY High-Flexible Lift Control Cables with Supporting Element
Designed for Medium Mechanical Stress, Suitable for Dry and Humid Environments
$10.00
Structure & Specifications |

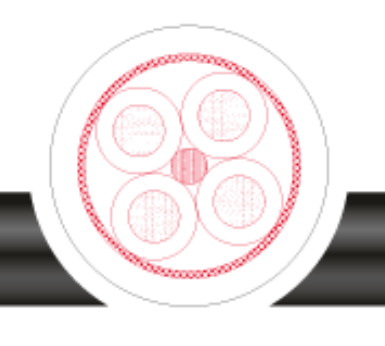

conductor material bare copper strand conductor class acc. to DIN VDE 0295 class 6 resp. IEC 60228 cl. 6 core insulation PVC, PE (0,5) core identification acc. to VDE 0293 black with white numerals with or wi- thout GNYE; KYSTFUY: cores 0,5 mm² transparent / pairs 0,5 mm² acc. to DIN 47100 supporting element central supporting element of textile fibres overall stranding cores stranded in layers shield copper braid/wrapped tinned wires; coverage ca. 80% outer sheath PVC sheath colour black, RAL 9005 printing yes rated voltage 0,5 mm² - 300 V; >0,75 mm² - 300/500 V current carrying capacity acc. to DIN VDE, see Technical Guideline min. bending radius fixed 12 x d min. bending radius moved 12 x d speed max. 1,6 m / s suspension height KYSTCY: max. 25 m / KYSTCUY, KYSTFUY: max. 50 m operat. temp. fixed min/max -30 °C / +70 °C operat. temp. moved min/max -5 °C / +70 °C burning behavior self-extinguishing and flame retardant acc. to IEC 60332-1 standard similar to DIN VDE 0250 |
Application |
high-flexible lift control cable with supporting element for medium mechanical stress. Suitable for dry and humid rooms. |
Special Features |
• KYSTCY: without sustain braid, shielded, EMC • KYSTCUY: with sustain braid, shielded, EMC • KYSTFUY: sustain braid and single shielded cores 0.5 mm², EMC • free from lacquer damaging substances (during production) |
Remarks |
• conform to RoHS • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE • We are pleased to produce special versions, other dimensions, core and jacket co- lours on request. • Available accessory you'll find on pages 15.35.XX |
