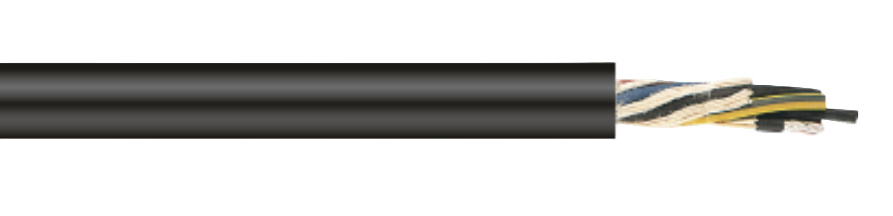

KYSTY, KYSTUY High-Flex Lift Control Cable with Textile Support
Designed for Medium Mechanical Stress, Suitable for Dry and Humid Environments
$8.00

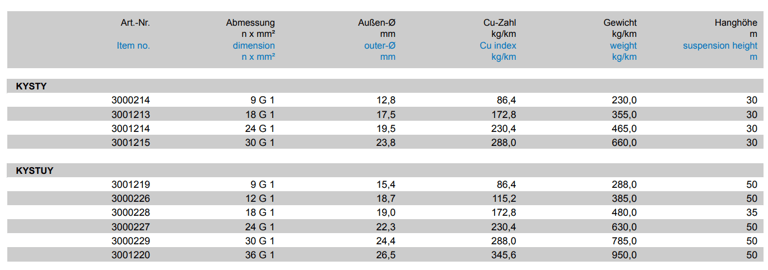

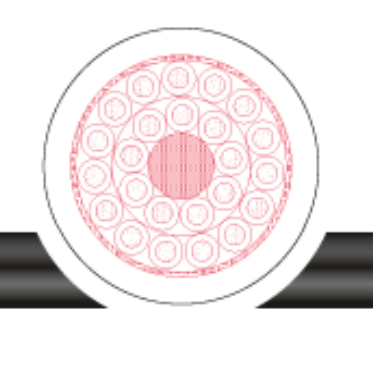

Structure & Specifications | |
conductor material conductor class core insulation core identification supporting element stranding outer sheath sheath colour printing rated voltage testing voltage current carrying capacity min. bending radius fixed min. bending radius moved operat. temp. fixed min/max operat. temp. moved min/max burning behavior standard | bare copper strand acc. to DIN VDE 0295 class 5/6 resp. IEC 60228 class 5/6 PVC acc. to VDE 0293 black with white numerals with GNYE central supporting element of textile fibres stranded to layers PVC black, RAL 9005 yes Uo/U: 300/500 V 2 kV acc. to DIN VDE, see Technical Guideline 12 x d 12 x d KYSTY: -30 °C / +70 °C; KYSTUY: -40 °C / +70 °C KYSTY: -5 °C / +70 °C; KYSTUY: -30 °C / +70 °C self-extinguishing and flame retardant acc. to IEC 60332-1 similar to DIN VDE 0250 |
Application |
high-flexible lift control cable with textile supporting element for medium mechanical stress. Suitable for dry and humid rooms. |
Special Features |
• KYSTY: without sustain braid • KYSTUY: with sustain braid • free from lacquer damaging substances (during production) |
Remarks |
• conform to RoHS • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE • We are pleased to produce special versions, other dimensions, core and jacket co- lours on request. • Available accessory you'll find on pages 15.35.XX |
