Li2YCY PiMF

Cable

Application and Description

Li2YCY PiMF is particularly suitable for wiring data systems and controls in large industrial plants, for the transmission of sensitive signals and high bit rates for enhanced requirements in near-end cross-talk attenuation and high electrical interference in the circuits. For measurement value transmission and serial 2-wire interfaces, Cables of this type are intended for limited flexible use, and for fixed installation in dry and damp interiors.

Standard and Approval

CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

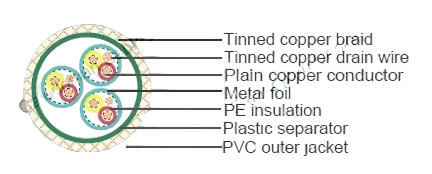

Cable Construction

Plain copper conductor

Stranded to DIN VDE 0295 cl. 5, IEC 60228 cl.5

PE core insulation type 2YI1 to DIN VDE 0207 part 2

Yellow and red core colours, pairs numbered as per DIN 47100

Two cores twisted into a pair

Plastic foil separator

Screening of pairs with plastic laminated metal foil with multi-wire tinned copper drain wire

Pairs (PiMF) twisted in layers

Plastic foil separator

85% tinned copper braid

PVC outer jacket type YM2 grey to DIN VDE 0207 part 5, black color for Yv version

Technical Characteristics

Working voltage	250 volts
Test voltage	Conductor to conductor 1200V Conductor to shield 500V Shield to shield 500V
Minimum bending radius	10 x Ø
Flexing Temperature	-5º C to +70º C
Static temperature	-30º C to +70º C
Flame retardant	IEC 60332.1-2
Insulation resistance	5GΩ x km
Short-range crosstalk	attenuation up to 1 MHz min. 75 dB
Impendence at 1 MHz	0.22mm² approx. 80Ohm 0.34mm² approx. 85Ohm 0.5mm² approx. 80Ohm 1.0mm² approx. 75Ohm
Mutual capacitance at 800 Hz	0.22mm² max.70nF/km 0.34mm² max.70nF/km 0.5mm² max.75nF/km 1.0mm² max.85nF/km
Loop resistance	0.22mm² max.186Ohm/km 0.34mm² max.115Ohm/km 0.5mm² max.78.4Ohm/km 1.0mm² max.39Ohm/km
