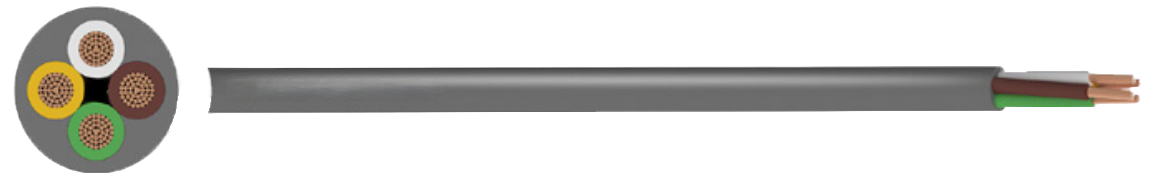

LiHH LSZH Control Cable
LSZH (Low Smoke Zero Halogen) electronic cables are used for connection and signal transfer in measuring and control equipment. For indoor installation in dry and wet rooms, for installation under plaster.
$5.00
APPLICATION LSZH (Low Smoke Zero Halogen) electronic cables are used for connection and signal transfer in measuring and control equipment. For indoor installation in dry and wet rooms, for installation under plaster. |
CHARACTERISTICS Voltage Rating 250/250V Temperature Rating Fixed: -40°C to +70°C Flexed: +5°C to +70°C Minimum Bending Radius Fixed: 7.5 x overall diameter |
CONSTRUCTION
Conductor
Generally to Class 5 fine-stranded copper conductor
Insulation
LSZH (Low Smoke Zero Halogen)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification Core 1: o White Core 2: Brown Core 3: Green Core 4: Yellow Core 5: Grey Core 6: Pink Core 7: Blue Core 8: Red Core 9: Black Core 10: Violet Core 11: Grey/Pink Core 12: Red/Blue Core 13: White/Green | Core 14: Brown/Green Core 15: White/Yellow Core 16: Yellow/Brown Core 17: White/Grey Core 18: Grey/Brown Core 19: White/Pink Core 20: Pink/Brown Core 21: White/Blue Core 22: Brown/Blue Core 23: White/Red Core 24: Brown/Red Core 25: White/Black Outer Sheath Colour Grey |
