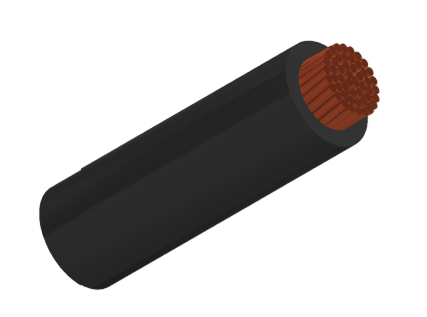

LiY / LiYv / LiYv-t
Cable
Application and Description
These PVC insulated stranded hook-up wires are employed in telecommunication systems, toys, sports equipment and general wiring equipment used in electrical engineering to meet stringent demands in terms of high and ultra-high flexibility. They are not permitted to be installed in heavy current applications outside of the equipment.
Standard and Approval
VDE 0812, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant
Cable Construction
Tinned copper strands |
Strands to VDE-0295 Class-5, IEC 60228 Cl-5 and HD383 |
Special PVC core insulation, compound YI3 to DIN VDE 0812 |
Cores identification to VDE-0293 |
Technical Characteristics
Working voltage | 0.14 mm² 500 V/0.25-1.50 mm² 900 V |
Test voltage | 0.14 mm² 1200 V/0.25-1.50 mm² 2500 V |
Flexing bending radius | 12.5 x Ø |
Static bending radius | 12.5 x Ø |
Flexing Temperature | -5º C to +70º C |
Static temperature | -30º C to +80º C(temporary 105 º C for LiYv-t) |
Flame retardant | VDE 0472 part 804, test method B, and IEC 60332.1 |
Insulation resistance | 10 MΩ x km |
