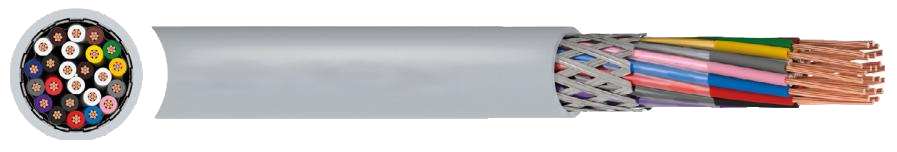

LiYCY Cable
LiYCY cable can be used for signal transmission between electronic devices,in computer systems or process control units with increased electromagnetic compatibility requirements.
CHARACTERISTICS
Voltage Rating (Uo/U) 250/250V
Voltage Test
1.2kV
Temperature Rating
Fixed: -30ºC to +80ºC
During Installation: -5ºC to +70ºC
Minimum Bending Radius
Fixed Installation: 6 x overall diameter
CONSTRUCTION
Conductor
Class 5 Fine Stranded Bare Copper
Insulation
PVC (Polyvinyl chloride)
Screen
TCWB (Tinned Copper Wire Braid)
Outer Sheath
PVC (Polyvinyl chloride)
Core Identification
2 Core: White Brown
3 Core: o White ● Brown Green
4 Core: White Brown Green Yellow
5 Core: White Brown Green Yellow Grey
6 Core: o White ● Brown Green e Yellow ● Grey ● Pink Larger sizes: 6 Core colours + following colours in addition
7 Core: Blue
8 Core: Red
10 Core: Black Violet
12 Core: Grey/Pink Red/Blue
14 Core: White/Green Brown/Green
15 Core: White/Yellow
16 Core: Yellow/Brown
18 Core: White/Grey Grey/Brown
20 Core: o White/Pink a Pink/Brown
21 Core: White/Blue
24 Core: Brown/Blue White/Red Brown/Red
25 Core: White/Black
30 Core: Brown/Black Grey/Green Yellow/Grey Pink/Green Yellow/Pink
Sheath Colour
Grey
