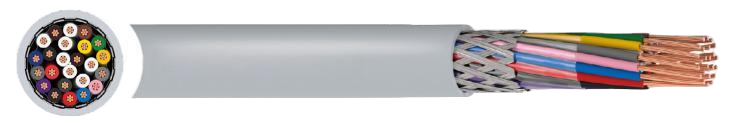

LiYCY Cable

CHARACTERISTICS

Voltage Rating (Uo/U) 250/250V

Voltage Test

1.2kV

Temperature Rating

Fixed: -30ºC to +80ºC

During Installation: -5ºC to +70ºC

Minimum Bending Radius

Fixed Installation: 6 x overall diameter

CONSTRUCTION

Conductor

Class 5 Fine Stranded Bare Copper

Insulation

PVC (Polyvinyl chloride)

Screen

TCWB (Tinned Copper Wire Braid)

Outer Sheath

PVC (Polyvinyl chloride)

Core Identification

2 Core: White  Brown

3 Core: o White Brown  Green

4 Core: o White Brown  Green Yellow

5 Core: o White Brown  Green Yellow  Grey

6 Core: o White  Brown  Green Yellow  Grey  Pink

Larger sizes: 6 Core colours + following colours in addition

7 Core: Blue

8 Core: Red

10 Core:  Black     Violet

12 Core: Grey/Pink     Red/Blue

14 Core: White/Green     Brown/Green

15 Core: White/Yellow

16 Core: Yellow/Brown

18 Core: White/Grey     Grey/Brown

20 Core:White/Pink     Pink/Brown

21 Core: White/Blue

24 Core: Brown/Blue  White/Red Brown/Red

25 Core: White/Black

30 Core: Brown/Black  Grey/Green Yellow/Grey Pink/Green Yellow/Pink

Sheath Colour

 Grey
