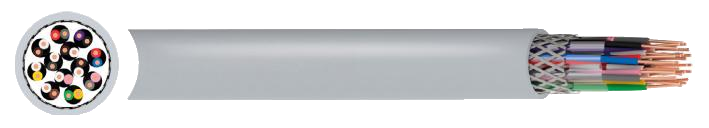

LiYCY TCWB Screened TP (Twisted Pair) PVC Control Cable

CHARACTERISTICS

Voltage Rating

0.14mm2 : 350V

Above 0.14mm2 : 500V

Test Voltage

0.14mm2 : 800V

Above 0.14mm2 : 1200V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: +5°C to +50°C

Minimum Bending Radius

Fixed: 10 x overall diameter

CONSTRUCTION

Conductor

Fine-stranded copper conductor

Insulation

PVC (Polyvinyl Chloride)

Separator

Plastic foil tape

Screen

TCWB (Tinned Copper Wire Braid)

Sheath

PVC (Polyvinyl Chloride)

Core Identification

Pair 1: White  Brown

Pair 2: Green  Yellow

Pair 3: Grey  Pink

Pair 4: Blue  Red

Pair 5: Black  Violet

Pair 6: Grey/Pink  Red/Blue

Pair 7: White/Green  Brown/Green

Pair 8: 2 White/Yellow a Yellow/Brown

Pair 9: o White/Grey a Grey/Brown

Pair 10: ● White/Pink ● Pink/Brown

Outer Sheath Colour

 Grey
