LiYCY TP
Cable
Application and Description
LiYCY TP twisted cable is used for flexible use with free movement, but without tensile stress or forced movements in dry, wet and moist areas but are not suitable for open air application. It is commonly used as control and signal cable in the electronics of computer systems, electronic control equipment, office machines and measurement devices in the tool making and machine industries. The twisted pair construction reduces interference (crosstalk) witable_style_1 the cable while the tinned copper braid shield offers optimum protection from electrical and electromagnetic interference.
Standard and Approval
VDE 0812, VDE 0814, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

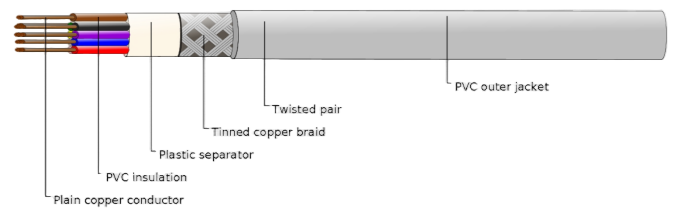

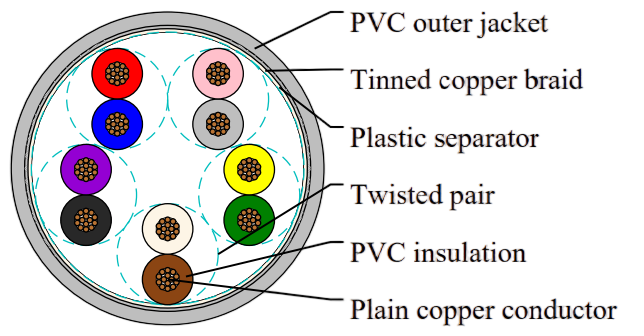

Cable Construction
Plain copper conductor |
Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 IEC 60228 cl.5 |
PVC core insulation to DIN VDE 0281 part 1 |
Color coded to DIN 47100, but without color repetition |
Cores twisted into layers |
Plastic foil separator |
85% tinned copper braid |
PVC outer jacket to DIN VDE 0281 part 1 |
Technical Characteristics
Working voltage | 250 volts |
Test voltage | 1200 volts |
Minimum bending radius | 5 x Ø |
Flexing Temperature | -5º C to +70º C |
Static temperature | -30º C to +70º C |
Flame retardant | IEC 60332.1 |
Insulation resistance | 20 MΩ x km |
