LiYCYCY
Cable
Application and Description
LiYCYCY braiding cable is for use in flexible or stationary applications under low mechanical stress with free movement without any tensile stress, loads or forced movements in dry, moist and wet conditions. Commonly used as a flexible connecting cable for electronic control equipment and computers in strong interference fields. The overall and individual tinned copper braid shields offer the best protection against electrical interference for perfect and precise impulse and data transmissions.
Standard and Approval
VDE 0245, VDE 0812, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

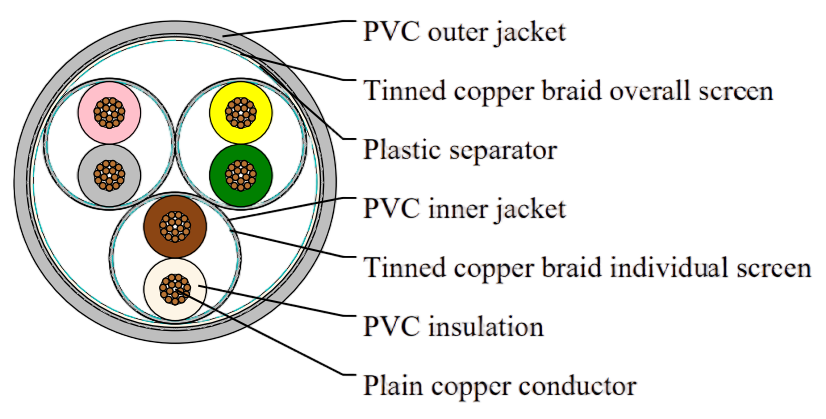

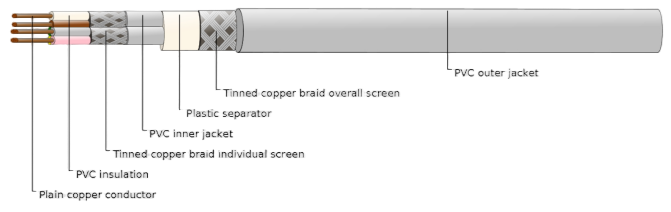

Cable Construction
Plain copper conductor |
Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 IEC 60228 cl.5 |
PVC core insulation to DIN VDE 0281 part 1 |
Color coded to DIN 47100, but without color repetition |
Cores twisted into pairs, pairs twisted into layers |
Pairs screened individually, tinned copper braid, approx. 85% coverage |
PVC inner jacket |
Plastic foil separator |
85% tinned copper braid |
PVC outer jacket to DIN VDE 0281 part 1 |
Technical Characteristics
Working voltage | 350 volts |
Test voltage | 1200 volts |
Minimum bending radius | 6 x Ø |
Flexing Temperature | -5º C to +70º C |
Static temperature | -30º C to +80º C |
Flame retardant | IEC 60332.1 |
Insulation resistance | 20 MΩ x km |
