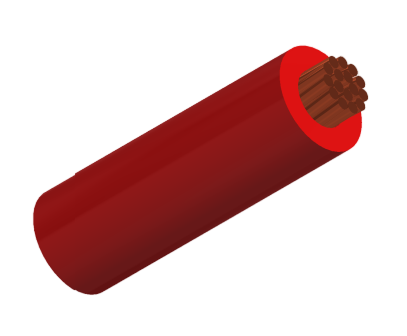

LiYW
Cable
Application and Description
These thermal insulated wires are ideal for use in power current installation, switch cabinets, motors and transformers which are subject to direct contact with high temperature (e.g. varnishing machines and drying towers etc.). These are also suitable for inside wiring of electrical equipments such as lighting and heating apparatus.
Standard and Approval
VDE-0281-7, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

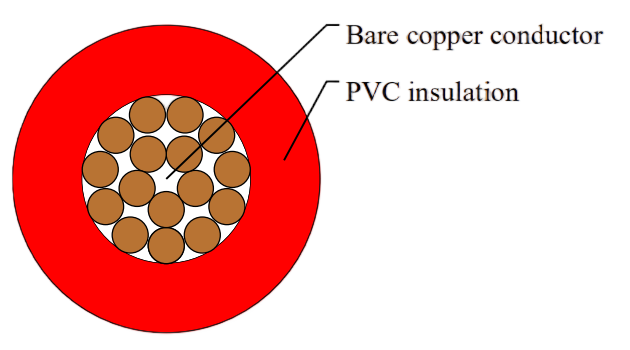

Cable Construction
Bare copper strands |
Strands to VDE-0295 Class-5, IEC 60228 Cl-5, BS 6360 cl. 5 and HD 383 |
Special heat-resistant PVC core insulation |
Cores identification to VDE-0293 |
Technical Characteristics
Working voltage | 300/500 V |
Test voltage | 2000 V |
Flexing bending radius | 12.5 x Ø |
Static bending radius | 12.5 x Ø |
Flexing Temperature | -5º C to +105º C |
Static temperature | -10º C to +105º C |
Flame retardant | IEC 60332.1 |
Insulation resistance | 20 MΩ x km |
