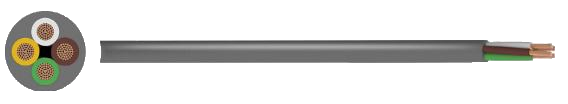

LiYY Cable

CHARACTERISTICS

Voltage Rating Uo/U 250/250V

Temperature Rating

Fixed: -30ºC to +80ºC

Flexed: -5ºC to +70ºC

Minimum Bending Radius

Fixed: 5 x overall diameter

Flexed: 7.5 x overall diameter

CONSTRUCTION

Conductor

Class 5 Fine Stranded Bare Copper

Insulation

PVC (Polyvinyl chloride)

Outer Sheath

PVC (Polyvinyl chloride)

Core Identification

Core 1: o White

Core 2:  Brown

Core 3:  Green

Core 4:  Yellow

Core 5:  Grey

Core 6:  Pink

Core 7:  Blue

Core 8:  Red

Core 9:  Black

Core 10:  Violet

Core 11:  Grey/Pink

Core 12:  Red/Blue

Core 13:     White/Green

Core 14:     Brown/Green

Core 15:     White/Yellow

Core 16:     Yellow/Brown

Core 17:     White/Grey

Core 18:     Grey/Brown

Core 19:     White/Pink

Core 20:     Pink/Brown

Core 21:     White/Blue

Core 22:     Brown/Blue

Core 23:     White/Red

Core 24:     Brown/Red

Sheath Colour

 Grey
