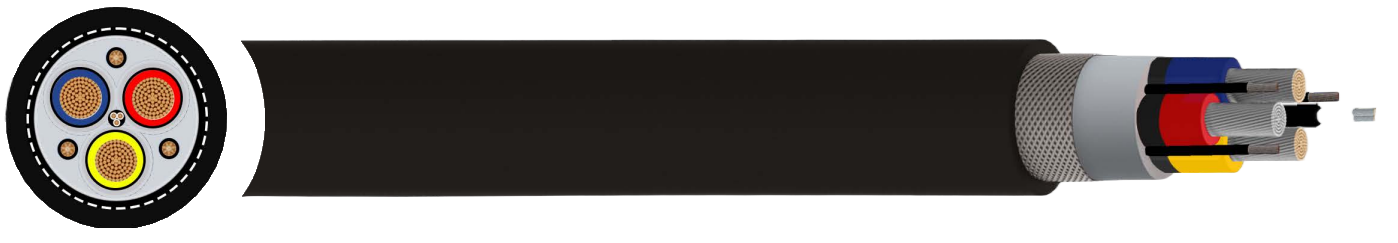

Longwall Power & Control Cable - Type 245
Three pilot core solution for shearers and continuous mining equipment
$15.00
APPLICATION Type 245 cables are mainly used as longwall shearer cables, and also for continuous miners and peripheral longwall cables. The cable has 3 central pilots for earth continuity monitoring and for control circuits. |
CHARACTERISTICS Voltage Rating 1.1kV - Type 245.1 3.3kV - Type 245.3 6.6kV - Type 245.6 |
CONSTRUCTION
Conductor
Flexible stranded tinned annealed copper
Conductor Screen
Semi-conductive compound for cables having a voltage rating of 3.3kV and above
Insulation
EPR (Ethylene Propylene Rubber)
Insulation Screen
Semi-conductive elastomer
Cradle Separator
Semiconductive PCP (Polychloroprene)
Central Extensible Pilot
EPR covered flexible stranded tinned copper
Overall Core Screen
Semiconductive PCP (Polychloroprene) filling and covering
Interstitial Earth Conductor
Semi-conductive PCP (Polychloroprene) covered flexible stranded tinned copper
Reinforcing Braid
Open-weave yarns
Sheath
Heavy duty PCP (Polychloroprene).
(CPE/CSP sheath can be offered upon request)
Sheath Colour
● Black
STANDARDS
AS/NZS 1802:2003, AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1
