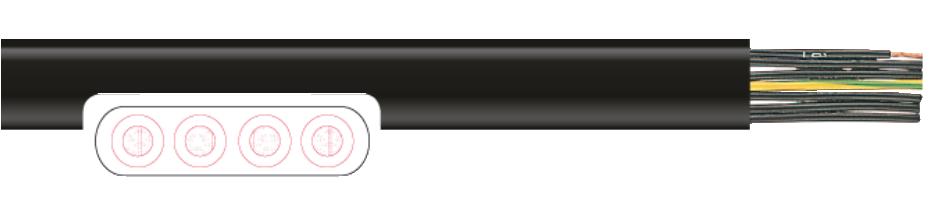

LSOH Power and Control Cable for Heavy-Duty and Mobile Applications

Low Smoke Zero Halogen Cable for Trolley Systems, Hoisting Devices, and Continuous Flexing in All Environments

$15.00

Structure & Specifications

conductor material bare copper strand

conductor class acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5

core insulation special compound

core identification acc. to VDE 0293-308 up to 5 wires coloured, from 6 wi-

res black with white numerals resp. white with black nu- merals, with GNYE

stranding cores parallel side by side

shield LSOH-C: bare copper braid, coverage approx. 85 %

outer sheath Polyolefin

sheath colour black

printing yes

rated voltage on 1 mm²: Uo/U 300/500 V; from 1,5 mm²: Uo/U 0,6/1

testing voltage LSOH: 2,5 kV; LSOH-C: c/c 4,0 kV / c/s 1,5 kV

current carrying capacity acc. to DIN VDE, see Technical Guideline

min. bending radius fixed LSOH: 10 x d; LSOH-C: 15 x d

min. bending radius moved LSOH: 10 x d; LSOH-C: 15 x d

speed max. 1,6 m / s

suspension height max. 35 m

operat. temp. fixed min/max -40 °C / +70 °C

operat. temp. moved min/max -25 °C / +70 °C temp. at conductor +90 °C

halogen free acc. to IEC 60754-1 and IEC 60754-2

smoke density acc. to IEC 61034-2

burning behavior self-extinguishing and flame retardant acc. to IEC

60332-1-2

standard similar to DIN VDE 0250

Application

power and control cable for trolley systems, transfer lines, machine-tools, on hoisting devices, lift, crane and container bridges. Also in applications where cables are bended strongly in permanent moving operation in one level. Suitable for dry, humid and wet rooms and for outdoor use.
