LSZH Twin Datalink Cable [A-2Y2Y(L)H]

Interconnecting cable for Solid State Interlocking (SSI) systems with LSZH sheath for use in tunnels and stations.

$5.00

APPLICATION

Interconnecting cable for Solid State Interlocking (SSI) systems with LSZH sheath for use in tunnels and stations.

CHARACTERISTICS

Voltage Rating (Uo/U)

0.65/1.1kV

Core Identification

1 Pair: Red Blue

Sheath Colour

● Black ● Blue

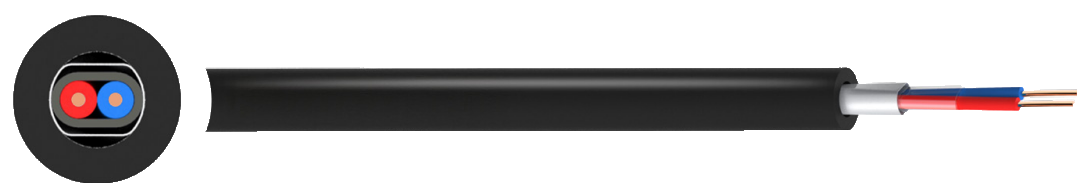

CONSTRUCTION

Conductor

Class 1 solid copper conductor

Insulation

PE (Polyethylene)

Wrapping

Polyester tape

Inner Sheath

PE (Polyethylene)

Tape

AL-PET (Aluminium - Polyethylene) tape

Outer Sheath

LSZH (Low Smoke Zero Halogen)
