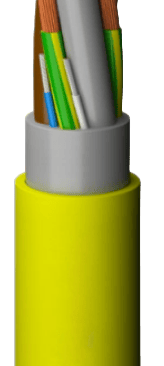

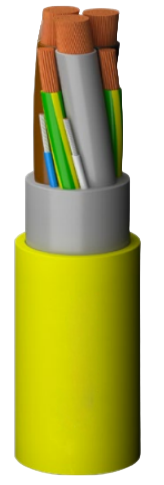

M-PUR D2X11Y 0.6/1 KV Flexible Low-Voltage Reeling Cable for Underground Mining Equipment – Halogen-Free Polyurethane Sheath, High-Stress Dynamic Load Applications

Introduction

Overview of the M-PUR D2X11Y 0.6/1 KV Cable

The M-PUR D2X11Y 0.6/1 KV represents a breakthrough in flexible low-voltage reeling cable technology, specifically engineered for the demanding environments of underground mining and tunneling operations. This advanced cable solution combines cutting-edge materials science with decades of engineering expertise to deliver unprecedented performance in dynamic load applications. Designed to withstand the harsh realities of subsurface operations, this cable serves as the critical power transmission link for mobile mining equipment operating in conditions where traditional cables would fail.

Underground mining operations present unique challenges that standard electrical cables simply cannot address. The constant movement, extreme mechanical stress, chemical exposure, and temperature variations encountered in mining environments require specialized solutions that go far beyond conventional cable design. The M-PUR D2X11Y cable addresses these challenges through innovative engineering that prioritizes durability, safety, and operational efficiency.

Importance of Flexible Reeling Cables in Underground Mining

In modern underground mining operations, the reliability of electrical power transmission directly impacts operational efficiency, safety standards, and economic viability. Mobile equipment such as drilling machines, scoops, and Load-Haul-Dump (LHD) vehicles form the backbone of underground mining productivity, requiring continuous and reliable power supply despite their constant movement through challenging terrain.

The evolution of mining technology has led to increasingly sophisticated equipment operating at higher power levels and greater speeds. This technological advancement demands equally sophisticated cable solutions that can maintain electrical integrity while withstanding mechanical stresses that would destroy conventional cables. Flexible reeling cables have become indispensable components in this ecosystem, enabling mining operations to achieve higher productivity levels while maintaining strict safety standards.

The economic implications of cable failure in underground mining cannot be overstated. Equipment downtime, replacement costs, and potential safety hazards associated with cable failures can result in substantial financial losses and operational disruptions. Therefore, investing in high-quality flexible reeling cables represents not just a technical necessity but a strategic business decision that impacts the overall profitability and sustainability of mining operations.

Key Features and Benefits

Halogen-Free Polyurethane Outer Sheath

The halogen-free polyurethane outer sheath represents a significant advancement in cable protection technology, addressing both environmental and safety concerns prevalent in underground mining applications. This specialized compound provides exceptional resistance to abrasion, tear, oil, and chemical exposure while maintaining environmental responsibility through its halogen-free composition.

The polyurethane formulation delivers superior mechanical properties compared to traditional cable sheathing materials. Its elastomeric nature allows for repeated flexing without degradation, while its chemical composition provides inherent resistance to the oils, fuels, acids, and bases commonly encountered in mining environments. The halogen-free characteristic eliminates the production of toxic gases in the event of fire, significantly enhancing safety protocols in confined underground spaces where ventilation may be limited.

This advanced sheathing technology also contributes to the cable's extended service life by providing robust protection against moisture ingress, UV radiation, and ozone exposure. The polyurethane compound maintains its protective properties across a wide temperature range, ensuring consistent performance regardless of seasonal variations or depth-related temperature changes in mining operations.

Optimized Dimensions for Dynamic Operation

The dimensional optimization of the M-PUR D2X11Y cable represents a careful balance between electrical performance, mechanical strength, and operational practicality. Through advanced engineering analysis, the cable achieves up to 30% reduction in overall size while maintaining full electrical and mechanical performance specifications.

This dimensional optimization directly translates to operational advantages in underground mining applications. Smaller cable dimensions reduce the space requirements for cable management systems, allowing for more compact drum installations and improved equipment mobility. The reduced cable diameter also decreases the bending radius requirements, enabling tighter routing configurations and enhanced maneuverability in confined underground spaces.

The weight reduction achieved through dimensional optimization, reaching up to 40% compared to conventional designs, significantly impacts the operational efficiency of reeling systems. Lighter cables reduce the mechanical stress on reeling drums and support structures, extend equipment service life, and improve the overall energy efficiency of mobile mining equipment.

Flame Retardant Properties

Fire safety in underground mining environments represents one of the most critical aspects of operational safety planning. The M-PUR D2X11Y cable incorporates advanced flame retardant technology that meets strict international standards including DIN EN 60332-1-2 and IEC 60332-1-2 specifications.

The flame retardant properties are engineered into both the core insulation and outer sheath materials, providing multiple layers of fire protection. This comprehensive approach ensures that even in the event of external fire exposure, the cable will not contribute to flame propagation, providing critical time for emergency response procedures and personnel evacuation.

The halogen-free flame retardant system eliminates the production of corrosive and toxic gases during combustion, addressing both immediate safety concerns and long-term environmental impact. This feature is particularly important in underground mining applications where smoke and gas evacuation can be challenging and where personnel safety depends on maintaining breathable air quality during emergency situations.

Superior Mechanical and Abrasion Resistance

The mechanical performance characteristics of the M-PUR D2X11Y cable set new standards for durability in underground mining applications. The cable design incorporates multiple engineering solutions to address the severe mechanical stresses encountered in reeling operations, including torsional stress, tensile loading, and abrasion resistance.

The cable's ability to withstand torsional stress of ±50°/m enables it to handle the twisting forces generated during complex reeling operations without compromising electrical or mechanical integrity. This specification is particularly crucial for drilling operations where equipment may rotate during operation, subjecting the cable to significant torsional loading.

The permanent tensile strength rating of 20 N/mm² provides robust protection against the pulling forces encountered during cable deployment and retrieval operations. This specification ensures that the cable can support its own weight plus additional loading from equipment movement without experiencing structural failure or electrical performance degradation.

Technical Specifications

Voltage Rating and Test Voltages

The M-PUR D2X11Y cable operates at a rated voltage of 0.6/1 kV (Um = 1.2 kV), positioning it as an ideal solution for low-voltage power distribution in underground mining applications. The voltage rating reflects the cable's capability to safely operate at 600V between conductor and earth, and 1000V between conductors, with a maximum operating voltage of 1.2 kV.

The comprehensive testing protocol includes a primary test voltage of 2.5 kV for power conductors and 2 kV for control cores, ensuring reliable performance under both normal operating conditions and fault scenarios. These test voltages provide significant safety margins above the operating voltages, confirming the cable's ability to maintain electrical integrity even under adverse conditions.

The electrical parameter specifications include precise conductor resistance values ranging from 0.78 Ω/km for 25 mm² conductors to 0.0801 Ω/km for 240 mm² conductors at 20°C. These low resistance values minimize power losses during transmission, contributing to improved energy efficiency and reduced operating costs in mining applications.

Conductor and Control Core Configuration

The conductor configuration of the M-PUR D2X11Y cable utilizes finely stranded bare copper with Class 5 flexibility rating, providing optimal balance between electrical conductivity and mechanical flexibility. The stranding design enables the cable to withstand repeated bending cycles while maintaining low electrical resistance and high current-carrying capacity.

The cable incorporates a sophisticated core arrangement with three main power conductors (brown, black, grey color coding) laid up with earth conductors in the interstices, along with optional control cores for enhanced functionality. This configuration optimizes the cable's electrical performance while minimizing overall diameter and weight.

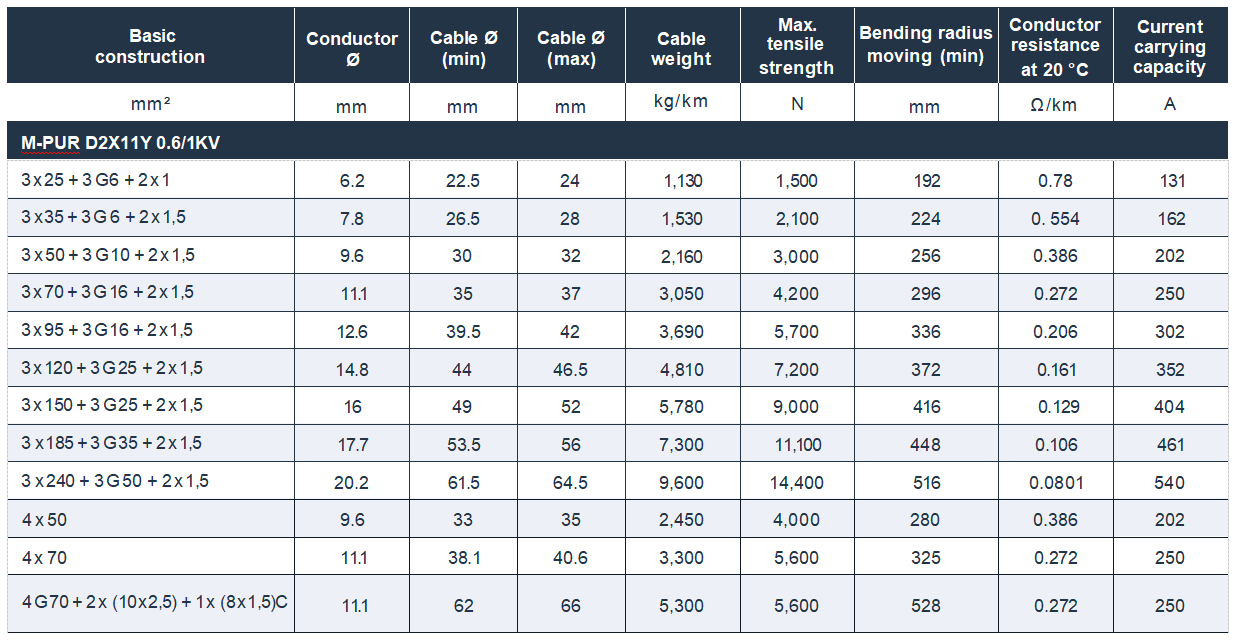

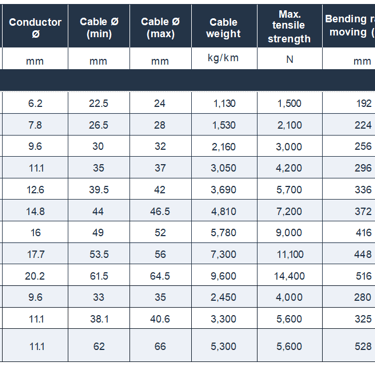

Available configurations range from 3×25+3G6 mm² to 3×240+3G50 mm², with optional control cores (2×1 to 2×1.5 mm²) for applications requiring monitoring or control signals. The current-carrying capacity ranges from 131A for the smallest configuration to 540A for the largest, accommodating a wide range of mining equipment power requirements.

Thermal Performance

The thermal characteristics of the M-PUR D2X11Y cable demonstrate its capability to operate reliably across the extreme temperature ranges encountered in underground mining environments. The maximum conductor temperature rating of 90°C ensures safe operation even under high-load conditions, while the short-circuit temperature rating of 250°C provides safety margins for fault conditions.

The ambient temperature performance ranges from -40°C to 80°C for fixed installations and -30°C to 80°C for flexible installations, covering virtually all underground mining environments worldwide. This wide temperature range accommodates seasonal variations, geographical differences, and the temperature variations associated with different mining depths.

The thermal design incorporates advanced insulation materials that maintain their properties across this temperature range while providing excellent thermal stability during dynamic operations. The XLPE insulation system offers superior thermal performance compared to traditional PVC insulations, contributing to extended cable service life and improved safety margins.

Mechanical Parameters

The mechanical specifications of the M-PUR D2X11Y cable represent the culmination of extensive engineering analysis and field testing in underground mining applications. The torsional stress rating of ±50°/m enables the cable to handle the complex rotational movements associated with drilling operations and mobile equipment maneuvering.

The permanent tensile strength specification of 20 N/mm² provides robust protection against the pulling forces encountered during cable handling and operation. This specification ensures that the cable can withstand the mechanical stresses associated with rapid deployment and retrieval while maintaining structural integrity throughout its service life.

The travel speed capability of 60 m/min for reeling operations underground represents a significant performance advantage, enabling rapid equipment deployment and positioning without compromising cable integrity. This speed rating accommodates the operational requirements of modern high-efficiency mining equipment while maintaining safety margins for emergency operations.

Dynamic Load Capacity

The dynamic load capacity of the M-PUR D2X11Y cable addresses the unique challenges associated with frequently changing mechanical stresses in underground mining applications. The cable design accommodates the acceleration and deceleration forces generated during equipment movement while maintaining electrical continuity and mechanical integrity.

The bending radius specifications of 4×D for fixed installations and 8×D for reeling operations provide practical guidelines for cable routing and drum design. These specifications ensure that the cable can be installed and operated without exceeding mechanical stress limits that could compromise performance or service life.

The cable's ability to withstand high-speed reeling operations at 60 m/min while maintaining its electrical and mechanical properties represents a significant technological achievement. This capability enables mining operations to achieve higher productivity levels through faster equipment positioning and deployment cycles.

Application Scenarios

Reeling Operation on Drilling Machines

Underground drilling operations represent one of the most demanding applications for flexible reeling cables, combining high mechanical stress with the need for reliable electrical power transmission. Drilling machines in underground mining environments require continuous power supply while operating in confined spaces with limited access for cable management and maintenance.

The M-PUR D2X11Y cable's design specifically addresses the challenges associated with drilling machine applications through its superior abrasion resistance and mechanical strength. The cable can withstand the vibrations, movements, and potential contact with rough surfaces commonly encountered during drilling operations while maintaining electrical integrity.

The halogen-free polyurethane outer sheath provides exceptional protection against the cutting fluids, drilling muds, and chemical exposures typical in drilling environments. This chemical resistance ensures reliable operation even when the cable comes into contact with aggressive substances that would rapidly degrade conventional cable materials.

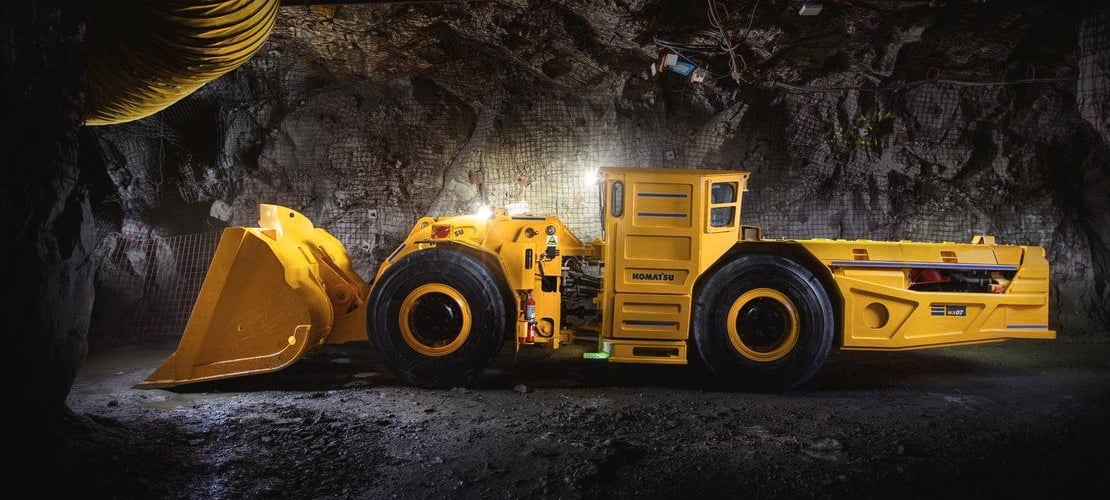

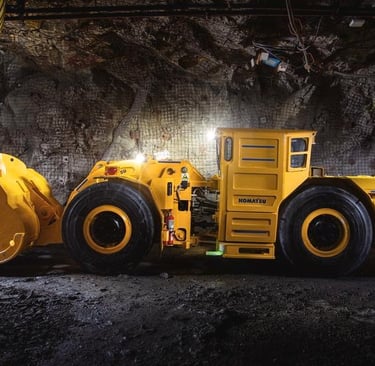

Power Supply for Scoops and LHDs

Load-Haul-Dump (LHD) vehicles and scoops represent critical components in underground mining operations, requiring reliable power supply for their electrical systems including lighting, control systems, and auxiliary equipment. These vehicles operate in continuous motion cycles that subject their power cables to repeated mechanical stress.

The flexible reeling capability of the M-PUR D2X11Y cable enables seamless power transmission to mobile LHD equipment while accommodating the complex movement patterns required for material handling operations. The cable's ability to withstand torsional stress and rapid reeling cycles ensures uninterrupted power supply throughout operational cycles.

The optimized dimensions and weight reduction features of the cable contribute to improved LHD operational efficiency by reducing the mechanical loading on cable reeling systems. This reduction in mechanical stress translates to lower maintenance requirements and extended equipment service life.

Use in Tunnelling and Underground Mine Operations

Tunneling operations present unique challenges for cable systems due to the combination of confined working spaces, continuous equipment movement, and exposure to various environmental hazards. The M-PUR D2X11Y cable's design addresses these challenges through its compact dimensions and robust construction.

The cable's water resistance capability up to 10 meters depth provides protection against the water ingress commonly encountered in tunneling operations. This feature ensures reliable operation even in wet conditions or when the cable is temporarily submerged during construction activities.

The flame retardant properties become particularly important in tunneling applications where fire safety is paramount due to limited escape routes and ventilation challenges. The halogen-free composition ensures that any fire incident will not generate toxic gases that could endanger personnel in confined spaces.

Long-Tail Keyword Insights

Halogen-Free Polyurethane Reeling Cable for Mining Equipment

The halogen-free polyurethane reeling cable for mining equipment represents a significant advancement in mining cable technology, addressing both performance and environmental safety requirements. This technology eliminates the production of toxic and corrosive gases during fire incidents while providing superior mechanical and chemical resistance properties.

The polyurethane composition offers exceptional flexibility and durability compared to traditional cable materials, enabling the cable to withstand the repeated mechanical stress cycles associated with reeling operations. The material's inherent resistance to oils, chemicals, and abrasion makes it ideally suited for the challenging environment of underground mining operations.

Environmental considerations have become increasingly important in mining operations, and the halogen-free composition of this cable supports sustainable mining practices. The elimination of halogens reduces the environmental impact during both manufacturing and end-of-life disposal, aligning with modern environmental stewardship requirements.

Flexible Low-Voltage Reeling Cable 0.6/1 KV for Dynamic Loads

The flexible low-voltage reeling cable 0.6/1 KV for dynamic loads category represents specialized engineering solutions designed to address the unique requirements of mobile mining equipment. These cables must maintain electrical performance while accommodating continuous movement, vibration, and mechanical stress.

The 0.6/1 kV voltage rating provides optimal power transmission for a wide range of mining equipment while maintaining safety margins appropriate for underground applications. This voltage level enables efficient power distribution without the complexity and safety concerns associated with higher voltage systems in confined underground environments.

Dynamic load applications require cables that can maintain their electrical and mechanical properties despite repeated stress cycles. The M-PUR D2X11Y cable's construction incorporates specialized stranding patterns, advanced insulation materials, and reinforcement elements that work together to provide reliable performance under dynamic loading conditions.

Abrasion-Resistant Cable for Reeling Operation on Drilling Machines

Abrasion-resistant cable for reeling operation on drilling machines represents a critical component in maintaining operational efficiency and safety in underground drilling applications. The harsh environment surrounding drilling operations subjects cables to extreme abrasion from contact with rock surfaces, drilling equipment, and abrasive particles.

The M-PUR D2X11Y cable's polyurethane outer sheath provides exceptional abrasion resistance through its molecular structure and compound formulation. This resistance enables the cable to maintain its protective properties even after extended exposure to abrasive conditions typical in drilling environments.

The cable's design incorporates multiple protective layers that work together to prevent abrasion-related failures. The inner sheath provides additional protection for the conductor assembly, while the outer polyurethane sheath serves as the primary barrier against external abrasion. This multi-layer approach ensures continued operation even if the outer layer experiences some degree of wear.

Common Questions and Technical Solutions

Q: What makes this cable suitable for high-speed reeling operations at 60 m/min?

A: The M-PUR D2X11Y cable achieves its high-speed reeling capability through several key design features. The finely stranded Class 5 copper conductors provide exceptional flexibility while maintaining electrical conductivity. The XLPE insulation system offers superior thermal and mechanical properties compared to traditional PVC insulations, enabling the cable to withstand the dynamic stresses associated with rapid reeling operations.

The polyurethane outer sheath provides the necessary abrasion resistance and mechanical strength to protect the cable during high-speed deployment and retrieval cycles. The optimized core arrangement minimizes internal stress concentrations, while the specified bending radius requirements (8×D for reeling operations) ensure that mechanical stress levels remain within safe operating limits even at maximum reeling speeds.

Q: How does the cable handle extreme temperature variations in underground mining?

A: The M-PUR D2X11Y cable's thermal design addresses the extreme temperature variations encountered in underground mining through advanced material selection and engineering. The cable operates reliably from -30°C to 80°C in flexible installations, covering the full range of temperatures encountered in global mining operations.

The XLPE insulation system maintains its electrical properties across this temperature range while providing excellent thermal stability. The polyurethane outer sheath remains flexible at low temperatures while maintaining its protective properties at elevated temperatures. The maximum conductor temperature of 90°C provides adequate margins for high-load operations, while the short-circuit rating of 250°C ensures safety during fault conditions.

Q: What protection does the cable provide against chemical exposure?

A: Chemical resistance represents a critical performance characteristic for mining cables, and the M-PUR D2X11Y cable provides comprehensive protection through its advanced material composition. The halogen-free polyurethane outer sheath offers excellent resistance to oils, fuels, acids, bases, and other chemicals commonly encountered in mining environments.

The cable's resistance to ozone and UV radiation ensures reliable performance in environments where chemical oxidation processes might affect cable materials. The water resistance capability up to 10 meters depth provides protection against moisture ingress and the corrosive effects of groundwater commonly encountered in underground mining operations.

Q: How does the cable's construction prevent failures during dynamic loading?

A: The M-PUR D2X11Y cable's construction incorporates multiple design elements specifically engineered to prevent failures during dynamic loading conditions. The finely stranded copper conductors with Class 5 flexibility rating provide the mechanical flexibility necessary for repeated bending cycles without conductor damage.

The core arrangement strategy lays up the three main conductors with earth conductors positioned in the interstices, creating a balanced and mechanically stable cable structure. The very short lay length of the conductor twist minimizes internal stress concentrations during bending operations, while the XLPE insulation system provides excellent mechanical properties under dynamic loading.

The permanent tensile strength rating of 20 N/mm² ensures that the cable can withstand the pulling forces associated with reeling operations without structural damage. The torsional stress capability of ±50°/m enables the cable to handle the rotational forces generated during equipment movement without compromising electrical or mechanical integrity.

Conclusion

Why Choose the M-PUR D2X11Y 0.6/1 KV Cable

The M-PUR D2X11Y 0.6/1 KV cable represents the pinnacle of flexible reeling cable technology for underground mining applications. Its combination of advanced materials, optimized design, and comprehensive performance specifications makes it the ideal choice for demanding mining environments where conventional cables would fail.

The cable's halogen-free polyurethane construction addresses both performance and environmental requirements, providing exceptional mechanical and chemical resistance while supporting sustainable mining practices. The optimized dimensions and weight reduction features contribute to improved operational efficiency and reduced total cost of ownership.

The comprehensive technical specifications, including the 60 m/min reeling speed capability, wide temperature range, and superior mechanical properties, ensure reliable operation across the full spectrum of underground mining applications. The flame retardant properties and chemical resistance provide additional safety margins that are essential in underground environments.

Next Steps for Specification and Procurement

Selecting the appropriate M-PUR D2X11Y cable configuration requires careful analysis of specific application requirements including power demands, environmental conditions, and operational parameters. The available conductor sizes ranging from 25 mm² to 240 mm² provide flexibility to match cable specifications with equipment requirements while optimizing cost and performance.

When specifying these cables for underground mining applications, consider factors such as maximum reeling speed requirements, environmental temperature ranges, chemical exposure potential, and mechanical stress levels. The optional control core configurations enable enhanced functionality for applications requiring monitoring or control signal transmission alongside power delivery.

For procurement and installation planning, the cable's specifications for bending radius, tensile strength, and reeling speed provide essential parameters for designing cable management systems and operational procedures. Professional installation and testing services ensure optimal performance and compliance with safety standards throughout the cable's service life.

The investment in high-quality flexible reeling cables like the M-PUR D2X11Y represents a strategic decision that impacts operational efficiency, safety performance, and long-term cost effectiveness in underground mining operations. The superior performance characteristics and extended service life of these advanced cables provide compelling value propositions for mining operations seeking to optimize their electrical infrastructure while maintaining the highest safety standards.
