Marine Shore Power Cable for Ships – Type PROTOLON(SC) (N)TSKWOEU-J 0.6/1kV for Reliable Shore-Connection Systems Onboard and Onshore

Introduction

The maritime industry is experiencing a transformative shift toward sustainable operations, with shore power systems becoming essential infrastructure at modern ports worldwide. As vessels seek to reduce emissions and operating costs while docked, the demand for reliable marine shore power cables has never been greater. At the heart of these shore-to-ship power supply systems lies the critical need for cables that can withstand the harsh marine environment while delivering consistent, safe electrical power.

The Type PROTOLON(SC) (N)TSKWOEU-J 0.6/1kV represents a cutting-edge solution specifically engineered for shore connection cable applications. This advanced marine shore power cable bridges the gap between onshore electrical infrastructure and shipboard systems, ensuring seamless power transfer during docking operations. Unlike standard industrial cables, this specialized PROTOLON(SC) cable is designed to meet the unique challenges of marine environments, from saltwater corrosion to extreme weather conditions and the mechanical stresses associated with vessel movement.

Modern ports are increasingly implementing comprehensive shore power programs to support environmental regulations and sustainability goals. The Type PROTOLON(SC) (N)TSKWOEU-J 0.6/1kV serves as the vital link in these ship shore connection systems, enabling vessels to shut down their auxiliary engines while maintaining full electrical power for lighting, air conditioning, cargo handling equipment, and other essential systems. This capability not only reduces harmful emissions but also significantly decreases noise pollution in port areas, creating a more sustainable maritime ecosystem.

Key Features of PROTOLON(SC) (N)TSKWOEU-J Cable

Flexible Bare Copper Conductors

The foundation of any reliable low voltage rubber cable for ships lies in its conductor design. The PROTOLON(SC) cable features finely stranded bare copper conductors that provide exceptional flexibility while maintaining excellent electrical conductivity. This enhanced flexibility proves crucial during docking operations when cables must be maneuvered around dock equipment and connected to various vessel configurations. The stranded copper construction allows the cable to bend and flex without compromising the electrical connection, ensuring reliable power transfer even under mechanical stress.

The conductor design also facilitates easier handling by dock personnel, reducing installation time and minimizing the risk of damage during connection procedures. This flexibility becomes particularly valuable in challenging weather conditions where quick, efficient connections are essential for maintaining port operations.

EPR Insulation and Rubber Sheathing

The cable's insulation system utilizes high-quality EPR (Ethylene Propylene Rubber), renowned for its superior electrical and mechanical properties in marine applications. This weatherproof marine rubber cable for ship power supply incorporates dual-layer protection with both inner and outer rubber sheaths manufactured from vulcanized rubber compounds. The outer sheath provides exceptional resistance to oil, UV radiation, moisture, and abrasion – critical properties for equipment exposed to harsh marine environments.

This robust sheathing system ensures the cable maintains its integrity during prolonged exposure to saltwater spray, extreme temperatures, and mechanical wear. The oil-resistant properties prove particularly valuable in port environments where hydraulic fluids and fuel spills are common occurrences. Additionally, the UV-resistant formulation prevents degradation from constant sun exposure, extending the cable's operational lifespan significantly.

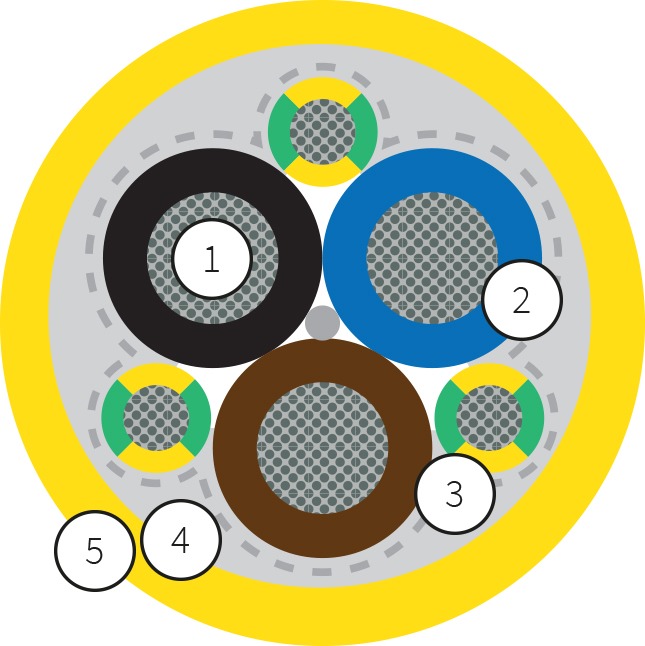

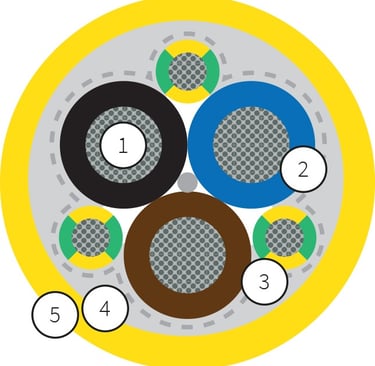

Three-Core Symmetrical Design

One of the standout features of this 0.6/1kV ship power cable is its symmetrical three-core configuration, specifically engineered to minimize electromagnetic interference (EMC). This low EMC ship-to-shore power cable 0.6/1kV design ensures that sensitive electronic equipment aboard vessels remains unaffected by electrical noise during power transfer operations.

The symmetrical arrangement of conductors creates a balanced electromagnetic field, reducing the potential for interference with navigation systems, communication equipment, and other critical shipboard electronics. This feature becomes increasingly important as vessels incorporate more sophisticated digital systems that require clean, stable power sources.

Integrated Control Cores

Beyond power transmission, the PROTOLON(SC) cable incorporates dedicated control cores that enable advanced functionality in modern shore connection systems. This control-core marine cable for flexible ship connections supports automated power management systems, remote monitoring, and safety interlocks that ensure secure power transfer operations.

The control cores facilitate communication between shore-based power management systems and shipboard equipment, enabling features such as automatic voltage matching, load monitoring, and emergency disconnect functions. This capability allows the cable to adapt to different vessel types and their unique power control requirements, from cargo ships to cruise liners to naval vessels.

Broad Temperature Range

Marine environments present extreme temperature challenges, from arctic ports to tropical harbors. The PROTOLON(SC) cable operates reliably across a temperature range from -40°C to +80°C in fixed installations and -25°C to +80°C during flexible operation. This broad temperature tolerance ensures consistent performance regardless of geographical location or seasonal variations.

The cable can withstand maximum operating temperatures of 90°C and short-circuit conditions up to 250°C, providing safety margins that exceed typical operating requirements. This thermal performance makes it suitable for deployment in the most demanding marine environments worldwide.

Flame Retardant and Safety-Driven Design

Safety remains paramount in marine applications, where fire risks pose significant threats to vessels and port facilities. The PROTOLON(SC) cable meets stringent flame propagation standards according to DIN EN 60332-1-2, ensuring it will not contribute to fire spread in emergency situations. The flame-retardant properties provide crucial time for evacuation procedures and fire suppression efforts.

The cable's construction also includes features that enhance overall system safety, including protection against electrical faults and mechanical damage that could compromise vessel or port safety.

Certified to Global Standards

The Type PROTOLON(SC) (N)TSKWOEU-J 0.6/1kV holds certifications to multiple international standards, ensuring global compatibility and regulatory compliance. Primary certification includes DIN VDE 0250-813, the German standard specifically addressing cables for marine applications. This VDE 0250-813 marine certified cable for shore power designation provides assurance of quality and safety for port operators and vessel owners worldwide.

Additionally, the cable conforms to IEC/ISO/IEEE 80005-3 standards for shore connection systems, representing the international consensus on requirements for ship-to-shore electrical connections. This compliance ensures interoperability between vessels and shore facilities across different countries and regions, facilitating global maritime trade.

The multi-standard certification approach demonstrates the manufacturer's commitment to meeting diverse regulatory requirements while maintaining consistent quality and performance. Port authorities can confidently specify this cable knowing it meets both local and international safety and performance standards.

Marine Applications and Use Cases

The versatility of the PROTOLON(SC) cable makes it suitable for a wide range of marine applications. Cargo vessels benefit from reliable shore power during loading and unloading operations, allowing them to maintain refrigeration systems and cargo handling equipment without running auxiliary engines. Cruise liners utilize shore power to maintain passenger amenities including air conditioning, lighting, and entertainment systems while minimizing environmental impact in port cities.

Naval vessels require secure, reliable power connections for sensitive operations and equipment maintenance during port visits. Ferries operating on regular schedules depend on efficient shore power connections to maintain rapid turnaround times while providing passenger comfort during boarding operations.

The cable's design accommodates both indoor and outdoor installations, making it suitable for covered berths as well as exposed dock facilities. Whether deployed in fixed installations with permanent connection points or flexible configurations that accommodate various vessel types, the PROTOLON(SC) cable delivers consistent performance.

Shore power integration at global ports continues expanding as environmental regulations become more stringent. Major ports in Europe, North America, and Asia are implementing comprehensive shore power programs, creating demand for reliable, standardized cable solutions that can serve diverse vessel types efficiently.

Product Comparison: PROTOLON(SC) vs. PROTOLON(SMK+HS)

Understanding the differences between cable variants helps specify the optimal solution for specific applications:

Application Focus: The PROTOLON(SC) specializes in ship shore power applications, while the PROTOLON(SMK+HS) targets reeling applications for mobile cranes and similar equipment.

Voltage Rating: PROTOLON(SC) operates at 0.6/1kV, ideal for ship power systems, whereas PROTOLON(SMK+HS) supports higher voltages up to 6/10kV for medium-voltage industrial applications.

EMC Shielding: PROTOLON(SC) incorporates standard EMC shielding to protect sensitive shipboard electronics, while PROTOLON(SMK+HS) offers optional shielding based on application requirements.

Control Integration: PROTOLON(SC) includes integrated control cores as standard, supporting automated shore power systems, while PROTOLON(SMK+HS) provides optional control cores.

Durability Emphasis: PROTOLON(SC) focuses on marine weather resistance and safety compliance, while PROTOLON(SMK+HS) emphasizes dynamic tensile strength and torsional resistance for reeling applications.

Why Choose PROTOLON(SC) for Shore-to-Ship Power?

The selection of appropriate shore-connection system cable for ships and ports requires careful consideration of multiple factors. The PROTOLON(SC) cable addresses these considerations comprehensively, providing reliable power transfer during critical docked operations. Vessels can maintain full operational capability without environmental impact from auxiliary engine emissions.

Long-term durability in corrosive marine environments represents a significant economic advantage. The cable's resistance to saltwater, UV radiation, and mechanical wear ensures extended service life, reducing replacement costs and maintenance downtime. Port operators benefit from reduced infrastructure maintenance while vessel owners enjoy consistent, reliable power availability.

The standardized, compliant design supports ship electrification initiatives and port decarbonization efforts. As environmental regulations become more stringent, the PROTOLON(SC) cable provides a future-ready solution that meets evolving sustainability requirements while maintaining operational efficiency.

Safety compliance remains non-negotiable in marine applications. The cable's comprehensive safety features, including flame retardance and electrical fault protection, provide peace of mind for port operators and vessel crews. The ability to maintain power during emergency situations can prove critical for vessel safety systems.

Conclusion

The Type PROTOLON(SC) (N)TSKWOEU-J 0.6/1kV represents the culmination of advanced engineering specifically tailored for marine shore power applications. Its combination of flexible copper conductors, weatherproof rubber construction, EMC-optimized design, and integrated control capabilities addresses the complex requirements of modern shore-to-ship power systems.

As the maritime industry continues embracing sustainable practices, reliable shore power infrastructure becomes increasingly vital. The PROTOLON(SC) cable supports these efforts by enabling efficient, safe power transfer while vessels remain docked, contributing to reduced emissions and improved air quality in port communities.

The cable's global standard compliance ensures compatibility across international ports, facilitating maritime trade while supporting environmental objectives. For port operators, vessel owners, and marine electrical contractors, the PROTOLON(SC) cable provides a proven, reliable solution that meets current needs while supporting future sustainability initiatives.

Investment in quality shore power infrastructure, anchored by reliable cables like the PROTOLON(SC), represents a commitment to environmental stewardship and operational excellence. As shore power systems become standard equipment at ports worldwide, the demand for specialized marine cables that can deliver consistent, safe performance will continue growing, making the PROTOLON(SC) an essential component of modern maritime infrastructure.

Frequently Asked Questions (FAQs)

Q: What makes the PROTOLON(SC) cable suitable for marine environments? A: The cable features weatherproof rubber sheathing resistant to oil, UV radiation, saltwater, and mechanical wear. Its construction includes EPR insulation and vulcanized rubber compounds that maintain integrity in harsh marine conditions from -40°C to +80°C.

Q: How does the EMC design benefit shipboard systems? A: The symmetrical three-core configuration minimizes electromagnetic interference, protecting sensitive navigation, communication, and electronic systems aboard vessels during shore power operations.

Q: What voltage rating does the PROTOLON(SC) cable support? A: The cable is rated for 0.6/1kV operation, making it ideal for ship power supply systems while meeting international standards for shore connection applications.

Q: Can this cable be used with different types of vessels? A: Yes, the integrated control cores allow adaptation to various vessel types including cargo ships, cruise liners, naval vessels, and ferries, supporting their unique power management requirements.

Q: What safety certifications does the cable hold? A: The cable complies with DIN VDE 0250-813 and IEC/ISO/IEEE 80005-3 standards, and meets DIN EN 60332-1-2 flame propagation requirements for enhanced marine safety.

Q: Is the cable suitable for both indoor and outdoor installations? A: Yes, the robust rubber sheathing provides protection for both covered berths and exposed dock facilities, supporting flexible deployment options based on port infrastructure requirements.
