Medium Voltage Aluminum 90°C XLPE 15 kV 133% N=1/3 PVC

APPLICATION

Medium  Voltage  single  core  cables  are  used  in  electrical  energy  distribution networks,  as feeders for transformers  in  substations,  industrial  facilities  and   urbanizations.  They  are  suitable  for  installations   in  dry  or  wet   locations,  outdoors, underground ducts or directly buried in earth.

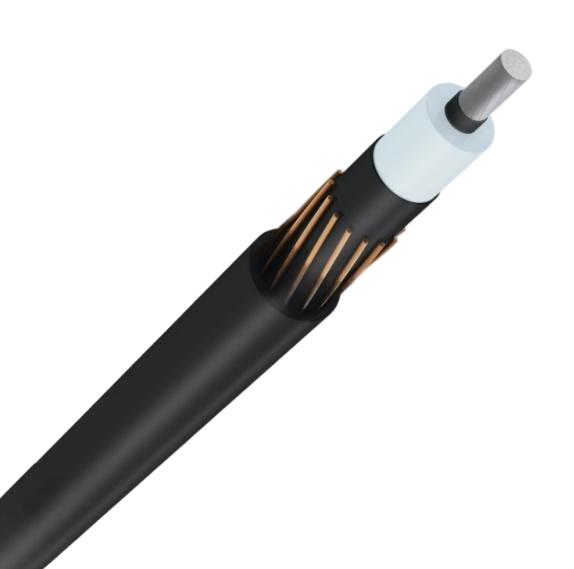

CONSTRUCTION

1. Conductor: Aluminum, compacted class B stranding..

2. Conductor screen: Extruded semiconductive compound.

3. Insulation: Cross-linked Polyethylene (XLPE).

4. Insulation screen: Strippable semiconductive compund.

5.  Concentric  Neutral:  Made  up  of  round  copper  wires  with  a  total  cross  section  equal  to  one  third  of  phase  conductor  section  (N=1/3),  with  a  non- hygroscopic separator tape over the wires.

6. Outer jacket: PVC compound, flame retardant, resistant to heat, abrasion and humidity, resistant to sunlight (SR), black color.

 Operating Temperature

90 °C

Operating Voltage

15 kV

Identification

Insulation in natural color and black external jacket. Sequential length meter by meter with return to zero.
