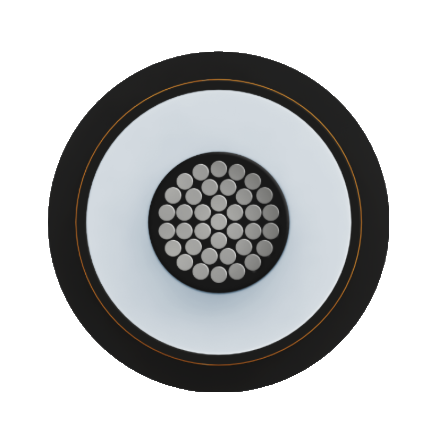

Medium Voltage Aluminum 90°C XLPE 15kV 133% PC PVC
Single Medium Voltage Cables, XLPE Insulated and PVC Jacket.
APPLICATION
Medium Votage single cables are used in electrical energy distribution networks, as feeders for transformers in substations, industrial facilities and urbanizations. They are suitable for installations in dry or wet locations, outdoors and in underground ducts.

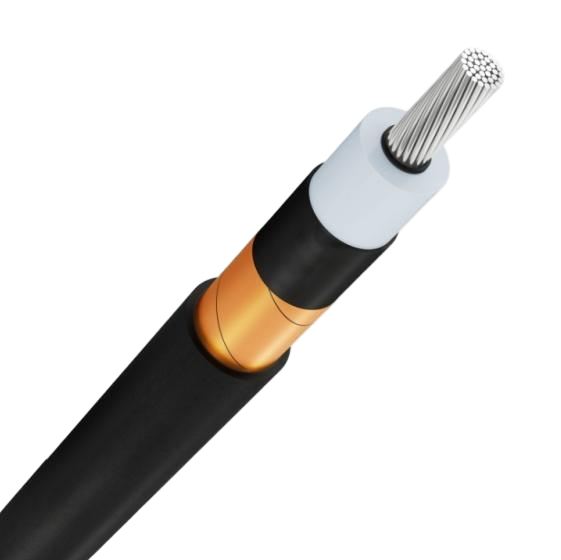

CONSTRUCTION
1. Conductor: Aluminum, compacted class B stranding.
2. Conductor screen: Extruded semiconductive compound.
3. Insulation: Cross-linked polyethylene (XLPE).
4. Insulation screen: Strippable semiconductive compound.
5. Screen: Made up of copper tape.
6. Outer jacket: PVC compound, flame retardant, resistant to heat, abrasion and humidity, resistant to sunlight (SR), black color
Operating Temperature
90 °C.
Operating Voltage
15 kV.
Identification
Insulation in natural color and black external jacket. Sequential length meter by meter with return to zero.
Optional Features available upon request:
Insulation in XLPE-TR (Tree retardant) and EPR compound. External covering in HDPE, LDPE, XLPE and Halogen Free compound. Application of additives for protection against rodents and termites. Water blocking system in
conductor and/or screen, longitudinal and/or radial. For more information, contact our sales representative.
