Medium Voltage Copper 90°C XLPE 15kV 100% PC PVC
Single Medium Voltage Cables, XLPE Insulated and PVC Jacket.
APPLICATION
Medium Voltage single corecables are used in energy distribution networks, as feeders for transformers in substations, industrial facilities and urbanizations. They are suitable for installations in dry or wet locations, outdoors and in underground ducts.

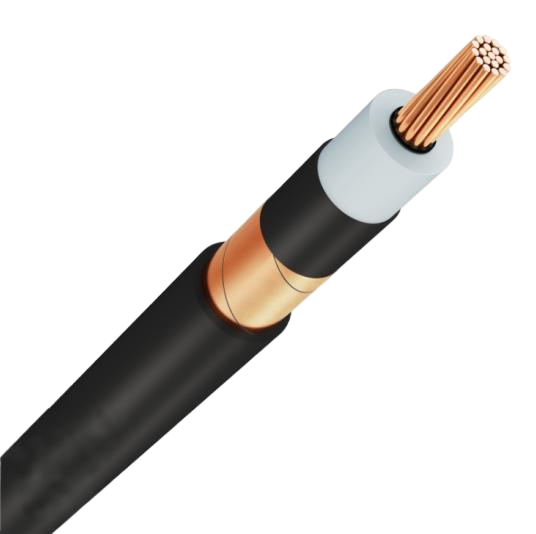

CONSTRUCTION
1. Conductor: Plain annealed Copper, compact class B stranding.
2. Conductor screen: Extruded semiconductive compound.
3. Insulation: Cross-linked Polyethylene (XLPE).
4. Insulation screen: Strippable semiconductive compund.
5. Screen: : Made up of copper tape.
6. Outer jacket: PVC compound, flame retardant, resistant to heat, abrasion and humidity, resistant to sunlight (SR), black color.
Operating Temperature
90 °C.
Operating Voltage
15 kV.
Identification
Insulation in natural color and black external jacket. Sequential length meter by meter with return to zero.
Optional Features available upon request:
Insulation in XLPE-TR (Tree retardant) and EPR compound. External covering in HDPE, LDPE, XLPE or Halogen Free compound. Application of additives for protection against rodents and termites. Water blocking system in conductor
and/or screen, longitudinal and/or radial.
For more information, contact our sales representative
