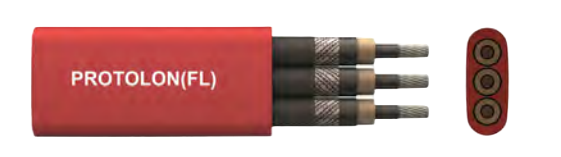

Medium Voltage Flat Cable - (FL) (N)TSFLCGEWOEU
Medium voltage solution for single-plane bending and container crane applications
$300.00
Application:Flexible medium voltage reeling cable for high mechanical stresses (e.g. dynamic tensile loads, multiple changes of direction within one plane, running over rollers). Mainly for mobile equipment, e.g. fast-moving container cranes, cranes, large mobile equipment and excavators.
Global data |
|
Type designation | (N)TSFLCGEWOEU |
Standard | Based on DIN VDE 0250-813 |
Design features |
|

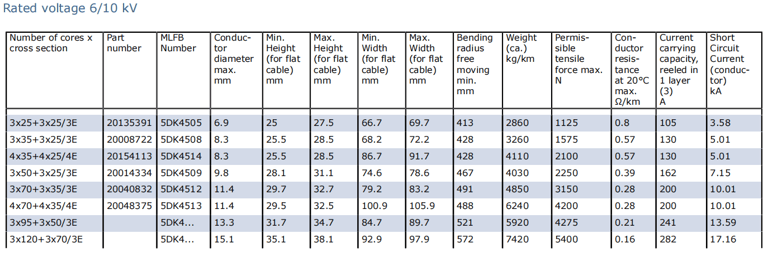

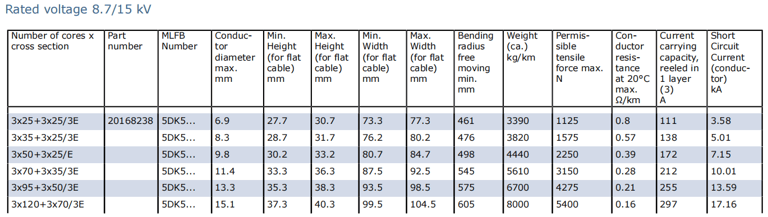

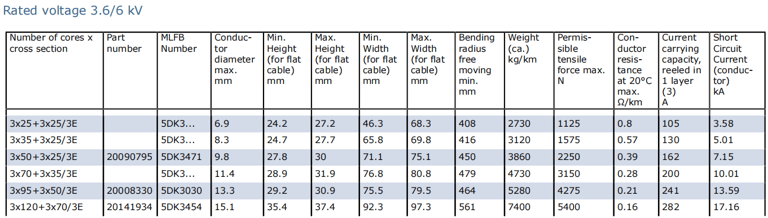

Conductor Insulation | Electrolytic copper tinned, finely stranded, class F (refer also to DIN VDE 0295) PROTOLON Special compound based on high-quality EPR (at least 3GI3); improved mechanical and electrical characteristics |
Electrical field control | Inner semiconductive layer of EPR, outer semiconductive layer of modified EPR, removable in warm condition |
Core identification | Natural coloured insulation with black semiconductive layer |
Core arrangement | Parallel core arrangement; earth conductor splitted and concentrically distributed around each core |
Sheath system | PROTOFIRM Special compound based on CR, quality at least 5GM5, red colour |
Electrical parameters Rated voltage Max. permissible operating voltage AC Max. permissible operating voltage DC AC test voltage Data transmission Current Carrying Capacity description | 3.6/6 kV 4.2/7.2 kV 5.4/10.8 kV 11 kV | 6/10 kV 6.9/12 kV 9/18 kV 17 kV | 8.7/15 kV 10.4/18 kV 13.5/27 kV 24 kV |
| A special cable design with fibre-optics can be found in the product range PROTOLON (FL)-LWL According to DIN VDE 0298, Part 4 Higher values are permissible in specific cases (please consult the manufacturer). | ||
Chemical parameters |
|
Resistance to oil | Acc. to DIN EN 60811-404 and DIN VDE 0473-811-404, paragraph 10 |
Weather resistance | Unrestricted use outdoors and indoors, resistant to ozone, UV and moisture |
Water resistance | According to HD 2216 |
Thermal parameters
Max. permissible temperature at conductor 90 °C Max. short circuit temperature of the conductor 250 °C
Ambient temperature for fixed installation min -50 °C ; max +80 °C Ambient temperature in fully flexible operation min -35 °C ; max +80 °C
Mechanical parameters
Max. tensile load on the conductor Torsional stress
15 N/mm²
Not allowed
Min. bending radius
Acc. to DIN VDE 0298, Part 3.
(Recommendation: applied cable diameter D = 1.5 x height of the flat cable)
Min. distance with S-type directional changes Travel speed
Additional tests
20 x D (cable diameter)
- Gantry (reeling operation): up to 120 m/min Reversed bending test, reeling test
