Medium Voltage Mining Reeling Cable R-(N)TSCGEWOEU LWL 6–35 kV
Flexible heavy-duty cable for excavators, dumpers & mobile crushers
$10.00

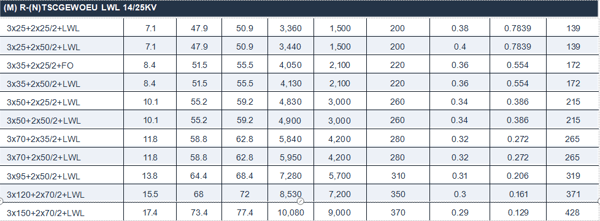

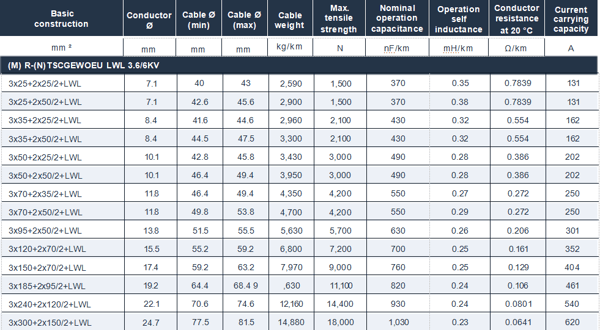

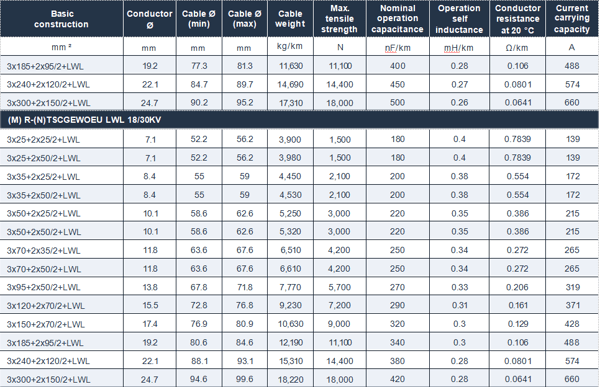

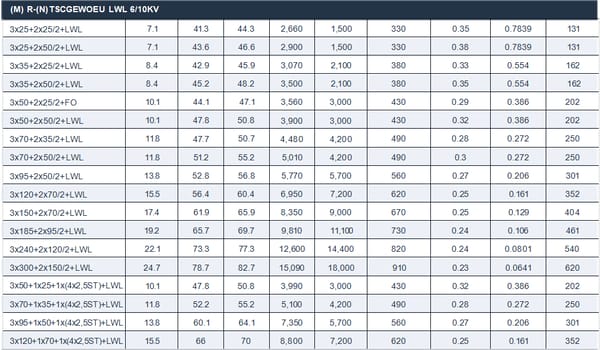

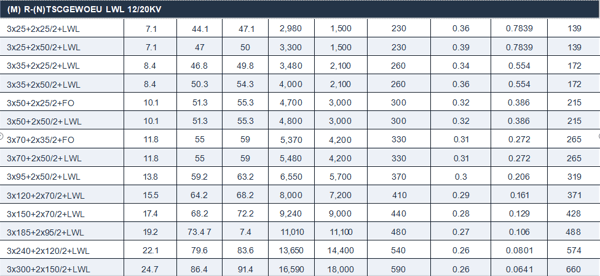

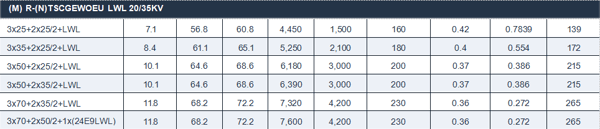

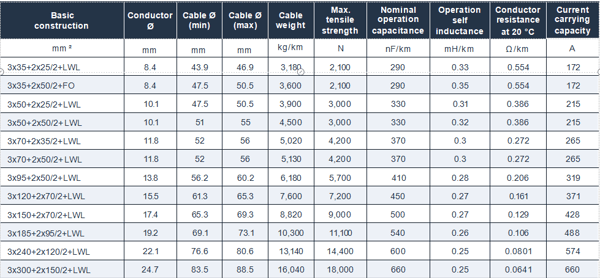

Technical Specifications
Parameter | Description |
|---|---|
Voltage Range | 6 kV to 35 kV |
Conductor Temperature Limits | Max operating: 90 °C; Max short circuit: 250 °C |
Ambient Temperature Range | Fixed installation: –40 °C to +80 °C; Flexible installation: –30 °C to +80 °C |
Mechanical Properties | Torsional stress: ±100°/m; Permanent tensile strength: 20 N/mm² (static), 25 N/mm² (dynamic) |
Travel Speed | Rewinding: up to 100 m/min; Reeling: up to 120 m/min |
Bending Radius | Fixed installation: ≥ 6 × diameter; Flexible operation: ≥ 10 × diameter; Minimum distance at S-type bends: 20 × diameter |

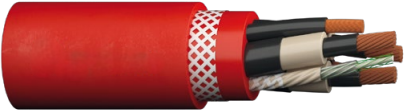

This R-(N)TSCGEWOEU LWL I cable is a flexible medium voltage reeling cable designed for connection to large material handling machines such as excavators, dumpers, and mobile crushers in open-cast mining. Engineered for high mechanical stress, it is suitable for use with mono-spiral and cylindrical reels. Incorporating fibre optic cores alongside power conductors, this cable supports both power delivery and telecommunications or monitoring functions in one integrated design.
Standards and Certifications
DIN VDE 0250-813
EN 50525-2-21
DIN VDE 0207-21
DIN VDE 0298-3
DIN EN 60811-404 / IEC 60811-404
GOST-R/-K/-B Fire Certificate of Russian Federation
DIN EN 60332-1-2 / IEC 60332-1-2
Chemical and Environmental Resistance
Flame retardant
Oil resistant
Ozone resistant
UV resistant
Sea water resistant
Product Features
Flexible Medium Voltage Reeling Cable: Designed to withstand high mechanical stresses typical on mono-spiral and cylindrical reels.
Integrated Fibre Optics: Supports communications and monitoring needs alongside power transmission.
Wide Thermal and Mechanical Specifications: Operates across extreme temperature ranges and resists torsional stress and mechanical loads.
High Travel Speeds: Suitable for rapid reel rewinding and operation without affecting cable integrity.
Comprehensive Environmental Resistance: Rated for flame retardance, oil, ozone, UV, and seawater exposure, providing long service life in mining conditions.
Application Areas

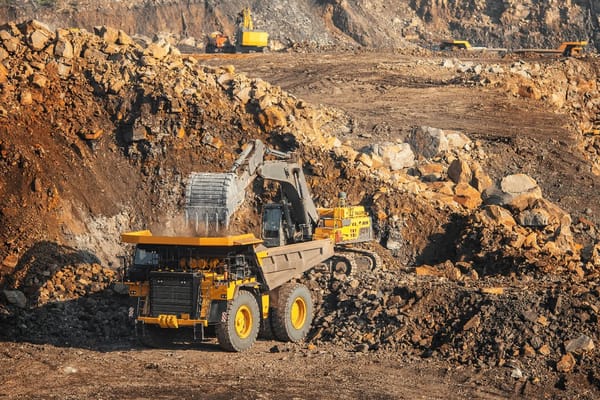

Ideal for open-cast mining operations connecting large mobile material handling equipment requiring both electrical power and data/communication capabilities.
Installation and Maintenance
Install with respect to minimum bending radii based on VDE 0298-3 guidance. Suitable for fixed or flexible installations with recommended periodic inspections for dynamic applications.
Customization Services
Available in customized lengths and fibre optic configurations to meet specific site and operational demands.
Contact Us
For quotations, technical datasheets, and tailored cable solutions for mining applications, please contact our sales or technical teams.
