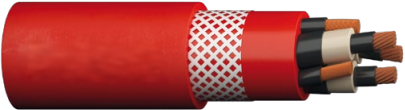

Medium Voltage Reeling Cable (M) R-(N)TSCGEWOEU 6–35kV
Flexible heavy-duty mining cable for excavators, dumpers & mobile crushers
$10.00

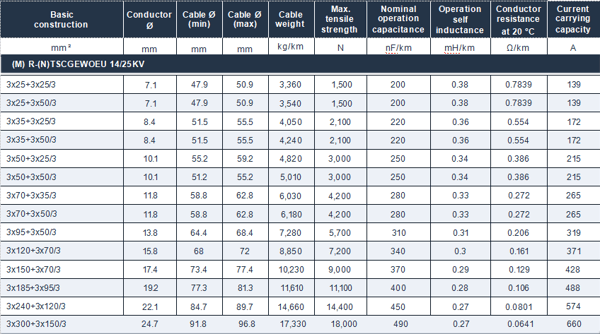

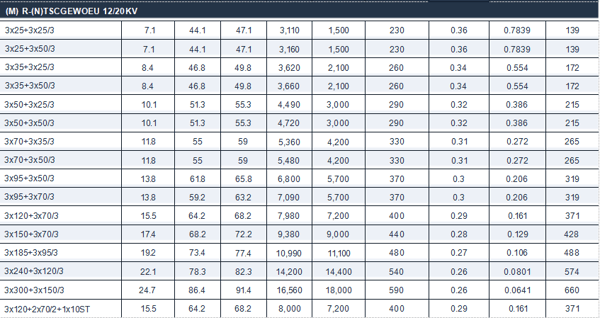

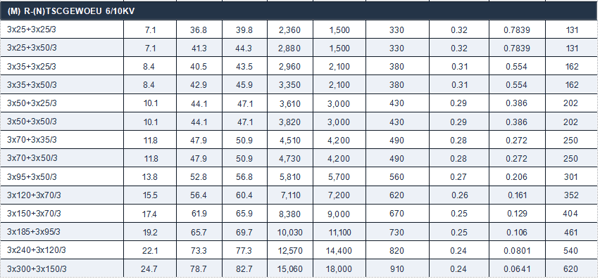

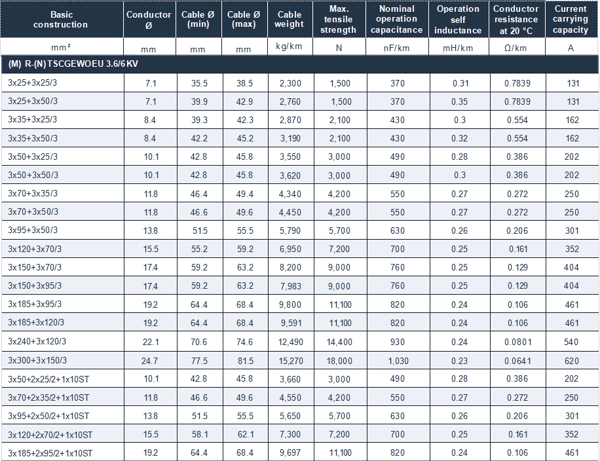

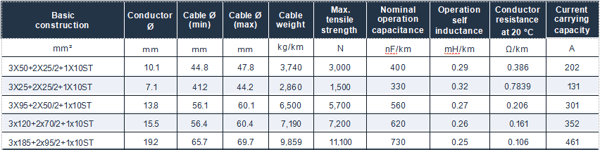

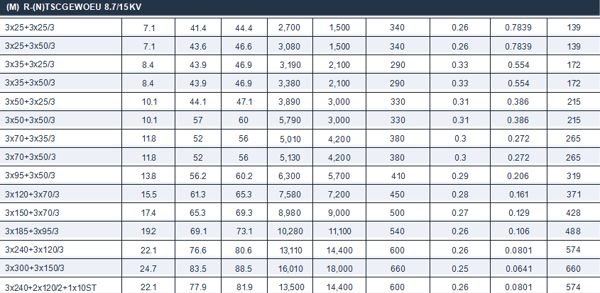

Technical Specifications
Parameter | Description |
|---|---|
Voltage Range | 6 kV to 35 kV |
Conductor Temperature Limits | Max operating: 90 °C; Short circuit max: 250 °C |
Ambient Temperature | Fixed installation: –40 °C to +80 °C; Flexible installation: –30 °C to +80 °C |
Mechanical Properties | Torsional stress: ±100°/m; Permanent tensile strength: 20 N/mm² (static), 25 N/mm² (dynamic) |
Travel Speed | Rewinding: up to 100 m/min; Reeling operation: up to 120 m/min |
Bending Radius | Fixed installation: ≥ 6 × cable diameter; Flexible operation: ≥ 10 × diameter; Minimum distance for S-type bends: 20 × diameter |
Feichun (M) cable is a robust, flexible medium voltage reeling cable designed for connecting large material handling machines such as excavators, dumpers, and mobile crushers in open-cast mining environments. Engineered to withstand high mechanical stresses, this cable is suitable for use with mono spiral and cylindrical reels, providing reliable performance under demanding conditions. Its superior flexibility and armoring make it ideal for applications requiring frequent movement and mechanical strain resistance.
Standards and Certifications
DIN VDE 0250-813
EN 50525-2-21
DIN VDE 0207-21
DIN VDE 0298-3
DIN EN 60811-404 / IEC 60811-404
GOST-R/-K/-B Fire Certificate of Russian Federation
DIN EN 60332-1-2 / IEC 60332-1-2
Chemical and Environmental Resistance
Flame retardant
Oil resistant
Ozone resistant
UV resistant
Sea water resistant
Product Features
Highly Flexible and Mechanically Robust: Designed for reeling applications with high mechanical stress, effective with mono spiral and cylindrical reels.
Wide Thermal Range: Suitable for harsh temperature conditions in mining with high conductor temperature tolerances.
Torsion Resistance: Capable of ±100° torsional stress per meter, ideal for flexible operations and reeling cycles.
High Tensile Strength: Withstands dynamic and static mechanical loads in strenuous environments.
Comprehensive Environmental Resistance: Resistant to flames, oils, ozone, UV radiation, and seawater, ensuring long operational lifetime in tough mining conditions.
Application Areas

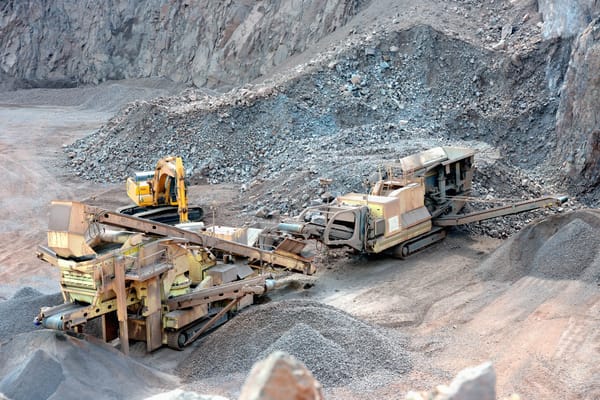

Intended for power and control connections on large material handling equipment like excavators, dumpers, and mobile crushers in open-cast mining operations requiring flexible, durable medium voltage cables.
Installation and Maintenance
Can be installed in flexible or fixed conditions respecting the minimum bending radii according to VDE 0298-3 standards. Regular inspection of cable integrity is recommended, particularly for reeling and dynamic applications.
Customization Services
Available in various cross-sectional areas and lengths tailored to specific site requirements and equipment configurations.
Contact Us
For quotations, detailed datasheets, and custom cable solutions tailored for heavy-duty mining operations, please contact our sales or technical teams.
