Medium Voltage Reeling Cable Selection Guide for Pilbara Iron Ore Mines – Electric Rope Shovel Applications

The Reality on the Ground: What Pilbara Iron Ore Operations Actually Look Like

The Pilbara region of Western Australia is home to some of the largest and most productive open-cut iron ore operations in the world — stretching across hundreds of square kilometres of red ochre terrain where ambient temperatures routinely exceed 45°C in summer, fine abrasive dust is omnipresent, and UV radiation is relentless year-round.

At sites operated by major producers across the Hamersley Range and Chichester Range, a typical day involves electric rope shovels with bucket capacities of 40–100 tonnes swinging and digging continuously across multiple benches. These shovels — machines weighing over 1,000 tonnes — draw their power through a single reeling cable that spools in and out across a monospiral or cylindrical reel with every dig cycle. Just a few hundred metres away, tracked mobile crushers and semi-mobile crushing stations receive their power through trailing cables routed across uneven ground, while kilometres of shiftable conveyor systems carry crushed ore toward the primary stockpile.

In this environment, the reeling cable is not a passive component. It is a dynamic, load-bearing, high-voltage power link that bends, twists, stretches, and compresses thousands of times per shift — every shift, every day, for years on end. Selecting the wrong cable means unplanned downtime on a machine that may be producing tens of thousands of tonnes per day. Getting it right means understanding every parameter that governs how a medium voltage flexible reeling cable performs under real mining conditions.

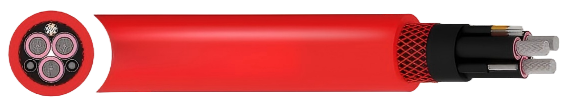

This guide walks through a systematic selection methodology for R-(N)TSCGEWOEU-type medium voltage reeling cables, specifically for electric rope shovels, mobile crushers, and conveyor systems in Pilbara-style open-cut mining operations.

Who This Guide Is For

This guide is written for crane and excavator manufacturers, electrical project engineers, and mining site electrical engineers who are specifying or procuring MV reeling or trailing cables for mobile mining equipment. It assumes a working knowledge of medium voltage power distribution and cable engineering fundamentals.

Step 1: Establish Your System Voltage and Insulation Class

The first and most fundamental decision is matching the cable's rated insulation level to the mine's distribution voltage. Pilbara iron ore operations typically run their mobile equipment distribution networks at either 6.6 kV or 11 kV, and in some cases at higher voltages for very long conveyor runs.

The cable voltage rating is expressed as Uo/U, where Uo is the voltage between conductor and earth and U is the voltage between conductors. For practical mine power purposes:

A 3.6/6 kV cable (with a test voltage of 11 kV) is appropriate for 6.6 kV distribution systems on shorter runs or moderate-load machines such as compact mobile crushers and smaller electric rope shovels.

A 6/10 kV cable (test voltage 17 kV) suits 11 kV distribution systems, which are increasingly preferred on large Pilbara operations for high-power machines — P&H 4100 or CAT 7495-class rope shovels drawing 3–5 MW — and for longer cable runs where maintaining voltage within acceptable limits requires the higher system voltage.

If your mine substation ring main is operating at 11 kV, specifying a 3.6/6 kV cable is a fundamental mismatch that no amount of mechanical design will fix. Confirm the Uo/U rating first, then lock in conductor sizing and physical dimensions from that voltage class.

Where the distribution network extends to 15 kV or 20 kV class systems — common on some newer or expanded operations with long overland conveyor infrastructure — the 8.7/15 kV and 12/20 kV insulation classes are available with the same conductor range from 25 mm² through 185 mm².

Step 2: Size the Conductor for Load and Voltage Drop

Once voltage class is confirmed, conductor cross-section is determined by two parallel constraints: thermal current-carrying capacity and allowable voltage drop over the cable length.

For a large electric rope shovels running at 6.6 kV with a peak demand in the range of 3–4 MW, and a cable run of 150–300 metres from the trailing cable connection point to the reel, a 120 mm² or 150 mm² conductor is commonly required. For 11 kV systems with the same machine, a 70 mm² or 95 mm² conductor may be adequate, which is why higher voltage systems reduce conductor weight and improve reel dynamics.

DC resistance at 20°C is a core parameter for voltage drop calculations. As a reference for plain wire conductors: a 25 mm² conductor presents 0.780 Ω/km, stepping down to 0.272 Ω/km at 70 mm², 0.161 Ω/km at 120 mm², and 0.106 Ω/km at 185 mm². For tinned conductors the values are marginally higher. Apply standard correction factors for operating temperature — in a Pilbara summer with ambient of 45°C and ground temperatures above that, the 20°C reference resistance needs to be corrected to actual conductor operating temperature.

Do not size conductor purely on nameplate current rating tables from a temperate climate standard. The maximum conductor operating temperature of +90°C sets the thermal ceiling, but reaching that limit on a Pilbara site in summer is entirely realistic with poor sizing.

The earth conductor sizing, typically expressed as a fraction of the main conductor (e.g. 25/2, 35/2, 50/2 notation in the part number), must align with the mine protection scheme's earth fault clearance requirements and the expected fault current magnitude and duration.

Step 3: Define the Mechanical Duty — Reel Type, Travel Speed, and Torsion

This is where most specification errors are made. The mechanical parameters of a reeling cable application in open-cut mining are far more demanding than a static or lightly flexed cable installation, and they vary significantly between different machine types.

Reel Geometry and Bending Radius

The minimum bending radius determines the smallest reel diameter you can use without exceeding the cable's elastic limit. Bending radius requirements differ significantly depending on where and how the cable bends:

For fixed installation, the minimum is 6 times the outer diameter. On drums (reeling spools), the requirement increases to 12 times the outer diameter. On deflection pulleys and sheaves, 15 times the outer diameter must be maintained. For cable moving freely in a catenary or festoon, 10 times the outer diameter applies.

This means that for a 6/10 kV cable in the 95 mm² size, with a nominal overall diameter of 57.3 mm, the drum itself must have a minimum groove diameter of approximately 688 mm on the first layer. On a monospiral reel for a large electric rope shovel, this is not usually the constraint — but on compact mobile crusher reels or conveyor take-up reels, reel diameter is often under-specified against this requirement.

Travel Speed

The maximum permissible travel speed for this cable type is 180 m/min. For most electric rope shovel cable reel systems, operational cable pay-in and pay-out speeds are well within this limit. However, some high-speed festoon systems on shiftable conveyors or automated reeling systems on newer crusher designs can approach or exceed this figure if the reel is not properly engineered. Verify actual reel speed at the drum, not just the machine travel speed.

Twist Limits

The maximum twist limit is 100°/m. Torsional stress is a life-limiting mechanism for reeling cables and is often underestimated on electric rope shovel applications where the machine swings through arcs of up to 270° during a dig cycle. The cable lay-out between the shovel's cable reel and the festoon system or drag chain must be reviewed to ensure the accumulated twist per metre of cable remains within this limit across the full range of machine motion.

Tensile Load

Tensile load capacity scales directly with conductor cross-section. At 25 mm², the maximum tensile load is 1,500 N. At 95 mm², it reaches 5,700 N, rising to 9,000 N at 150 mm² and 11,100 N at 185 mm². The tensile load limit expressed per unit area is 20 N/mm² across all sizes.

During installation over benches and ramps in an open-cut mine — where cables are dragged across rough ground, lifted over berms, or pulled along conveyor galleries — tensile forces can momentarily exceed operational limits. Installation procedures must account for the cable weight per kilometre (ranging from approximately 2,479 kg/km for 3.6/6 kV 25 mm² cable up to 10,702 kg/km for 8.7/15 kV 185 mm²) and limit pulling section lengths accordingly.

Step 4: Assess the Environmental Conditions

Temperature

The maximum conductor operating temperature of +90°C is the continuous thermal ceiling. Short circuit conditions allow up to +250°C briefly. For mobile installation, the cable must remain operational at ambient temperatures down to -25°C, which is not a Pilbara concern but is relevant for any cable specified for dual-deployment across different climate zones.

The Pilbara concern is the opposite end of the scale: sustained high ambient temperatures, solar radiation heating of cable lying on exposed ground between the reel and the connection point, and heat radiated from ore and machinery. Derate current capacity for actual thermal environment, not standard 25°C ambient tables.

UV, Ozone, and Oil Resistance

The outer sheath compound is formulated specifically to resist UV degradation (tested to UL 2556 and ISO 4892-2), ozone attack (tested to PN-ISO 1431-1), and oil contamination (tested to PN-EN 60811-404 and IEC 60811-404). On an open-cut Pilbara site, all three of these degradation mechanisms are active simultaneously. Hydraulic oil and gear lubricant contamination from leaking shovel or crusher components is common, and UV exposure is essentially continuous during daylight hours.

Do not substitute a cable type with a standard rubber or PVC outer sheath in a mining reeling application on the assumption that the mechanical properties are equivalent. The sheath compound directly determines service life under these combined stressors.

Flame Propagation

Compliance with PN-EN 60332-1-2 and IEC 60332-1-2 is the minimum flame propagation requirement. Australian mining safety regulations for trailing and reeling cables on mobile equipment in mine leases require demonstrable flame retardancy. Confirm that the specific cable variant procured has test certification to these standards — not just that the product line nominally complies.

Step 5: Consider the Fibre Optic Integration Option

Modern electric rope shovels and mobile crushers increasingly incorporate real-time condition monitoring, onboard diagnostics, and remote communication systems that require a data link between the machine and the control room or dispatch system. Routing a separate fibre optic cable alongside a reeling power cable creates installation complexity and doubles the mechanical wear points.

The integrated fibre optic module option — available with 6, 12, 18, or 24 fibres in multimode G50/125, multimode G62.5/125, or single-mode E9/125 configurations — addresses this by embedding the fibre bundle within the cable structure under the anti-torsion braid. The fibre is then subject to the same controlled mechanical environment as the power conductors, with the cable structure itself providing protection against the torsional and tensile loads.

For single-mode E9/125 fibre, attenuation is ≤0.21 dB/km at 1550 nm and ≤0.19 dB/km at the operating wavelength, supporting long-distance communication runs. For multimode G50/125, attenuation is ≤2.5 dB/km at 850 nm with bandwidth of 700 MHz·km.

On new electric rope shovel deployments, specifying the FO-integrated version adds minimal incremental cost relative to the power cable price, but eliminates a separate fibre installation, reduces reel diameter requirements, and simplifies cable management considerably.

Step 6: Confirm Standards Compliance and Certification

For cables deployed on Australian mine leases, the minimum standards baseline is compliance with DIN VDE 0250-813 (the primary standard for this cable type), IEC 60228 for conductor construction, DIN VDE 0207/21 for rubber insulation and sheathing compounds, and DIN VDE 0298-3 and 0298-4 for current-carrying capacity.

Beyond the cable standard itself, verify that the specific cable has been independently tested and certified — not simply claimed as compliant. Testing to the flame propagation, oil resistance, UV resistance, and ozone resistance standards should be documented with test certificates from an accredited laboratory. Under Australian mining safety regulation, the duty holder (mine operator) carries responsibility for ensuring that cables on mobile equipment are fit for purpose and appropriately certified, so engineering due diligence at the procurement stage is essential.

Common Cable Selection Errors to Avoid

Specifying by conductor size alone without confirming voltage class. A cable ordered by conductor cross-section without specifying the Uo/U voltage rating will default to the supplier's standard offering for that conductor size, which may not match the mine's distribution voltage. Always specify both.

Using fixed-installation bending radius for a reeling application. The 6× outer diameter figure applies only to fixed installation. On drums the requirement is 12×, and on deflection pulleys 15×. A reel or sheave designed around the fixed-installation figure will over-bend the cable on every cycle, causing rapid fatigue failure of the conductor strands.

Ignoring cable weight in tensile load calculations. A 185 mm² cable at the 8.7/15 kV insulation class weighs over 10,700 kg/km. On a 200-metre reel, that is over 2,100 kg of cable self-weight contributing to the tensile load during installation. Catenary sag forces during operation on shovel cable trailing sections also contribute. Size the reel drive system and cable route supports with actual cable weights, not estimations.

Specifying travel speed from machine ground speed rather than drum peripheral speed. If a mobile crusher travels at 15 m/min but the cable reel drum diameter is small, the peripheral speed at the drum may be significantly higher on the outer cable layers. Always calculate drum peripheral speed at maximum cable diameter, not machine travel speed.

Omitting torsion analysis on rope shovel applications. The continuous swing motion of an electric rope shovel during production applies torsional cycles to the cable thousands of times per shift. If the cable routing geometry from the reel to the festoon or drag chain does not provide a sufficient free-twist section to accommodate the machine swing arc, torsional fatigue becomes the primary failure mechanism — typically manifesting as twisted sheath and conductor fatigue cracking at mid-life rather than end-of-specification life.

Assuming all 'mining cable' rubber sheaths are equivalent. The specific thermosetting compound grades specified for the inner sheath (5GM3) and outer sheath (5GM5) in this cable type are formulated for the combined demands of flexibility, oil resistance, UV resistance, and ozone resistance. Generic heavy-duty rubber cable with an unspecified sheath compound does not provide equivalent performance in a Pilbara reeling application.

Deferring fibre optic planning until after cable installation. Once a power-only reeling cable is installed and commissioned on a shovel, retrofitting a fibre link typically requires routing a separate cable through an already congested cable management system or cutting back and replacing the reeling cable entirely. Specify the integrated FO module at initial procurement if there is any foreseeable requirement for data transmission on the machine.

Summary: Key Selection Parameters at a Glance

Working through the selection methodology described in this guide, the engineer should be able to confirm the following parameters before finalising a specification:

The system voltage (Uo/U) must match the mine distribution network, selecting from the 3.6/6 kV, 6/10 kV, 8.7/15 kV, or 12/20 kV insulation class. The conductor cross-section, from 25 mm² to 185 mm², must satisfy both thermal and voltage-drop requirements at actual Pilbara ambient temperatures. The reel drum diameter, sheave diameters, and cable routing geometry must respect the 12× and 15× outer diameter bending radius requirements for dynamic installations. The cable reel drive system and installation procedures must remain within the 20 N/mm² tensile load limit and account for actual cable weight. The reel speed must not exceed 180 m/min at the drum periphery. The cable routing must constrain torsion to within 100°/m. The fibre optic module configuration should be determined at the specification stage if any data transmission requirement exists, present or anticipated.

For electric rope shovel and mobile crusher applications in Pilbara iron ore operations, specifying to these parameters with a purpose-designed MV flexible reeling cable with EPDM insulation, heavy-duty thermosetting outer sheath, and integrated anti-torsion construction is the engineering basis for achieving target service life under the demanding conditions these machines operate in every day.

Technical data referenced in this guide is based on the R-(N)TSCGEWOEU + FO cable datasheet. For project-specific engineering calculations, consult the full technical specification and engage the cable manufacturer's application engineering team.
