Medium Voltage Reeling Cables for Tunnel Boring Machines (10–35 kV): Applications, Standards, and Technical Overview

Introduction

Overview of Medium Voltage Reeling Cables for TBMs

The construction of underground infrastructure, from transportation tunnels to mining operations, relies heavily on sophisticated machinery that demands reliable power transmission solutions. Medium voltage reeling cables designed specifically for tunnel boring machines (TBMs) represent a critical component in ensuring continuous, safe, and efficient underground operations. These specialized cables, operating at voltage levels between 10–35 kV, must withstand the extreme conditions encountered in subterranean environments while maintaining electrical integrity throughout demanding operational cycles.

Medium voltage reeling cables for TBM applications in underground mines and tunnel construction projects are engineered to address unique challenges that standard industrial cables cannot handle. The dynamic nature of TBM operations requires cables that can endure constant winding and unwinding motions, exposure to harsh chemical environments, extreme temperature variations, and significant mechanical stress. These high-performance MV cables for tunnel boring and mining environments incorporate advanced materials and construction techniques to deliver exceptional performance in the most challenging underground conditions.

Importance in Underground Mining and Tunnel Construction

The role of 10–35 kV reeling power supply cable for tunnel boring machines extends beyond simple power transmission. These cables serve as the lifeline for massive TBM operations, ensuring that multi-million-dollar projects can proceed without interruption. In underground mining applications, where access to equipment is limited and downtime can result in substantial financial losses, the reliability of medium voltage reeling cables becomes paramount.

Modern TBM operations require substantial power to drive cutting heads, operate hydraulic systems, manage ventilation, and power sophisticated control systems. The ability to maintain consistent power delivery through flexible cable systems that can extend and retract as machines advance through tunnels represents a significant engineering achievement. Without reliable MV reeling cable standards and properly engineered TBM power supply cables, major infrastructure projects would face increased risks of delays, safety incidents, and cost overruns.

Standards and Approvals

DIN VDE 0250-813

The DIN VDE 0250-813 standard provides fundamental requirements for medium voltage reeling cables used in mobile applications. This German engineering standard establishes critical parameters for insulation thickness, conductor construction, and overall cable design to ensure safe operation in dynamic environments. Compliance with DIN VDE 0250-813 guarantees that cables can withstand the mechanical stresses associated with continuous reeling operations while maintaining electrical safety margins required for medium voltage applications.

GOST-R/-K/-B Fire Certificate of Russian Federation

Fire safety represents a paramount concern in underground applications, making the GOST-R/-K/-B certification essential for international projects. This Russian Federation standard addresses flame propagation characteristics, smoke emission properties, and overall fire performance of cable materials. Medium voltage reeling cables meeting GOST standards demonstrate superior fire resistance capabilities crucial for confined underground spaces where evacuation options are limited.

DIN EN 60332-1-2 / IEC 60332-1-2

The DIN EN 60332-1-2 and IEC 60332-1-2 standards focus on vertical flame propagation testing for individual cables. These internationally recognized standards ensure that cables will not contribute to fire spread in vertical installations common in tunnel environments. Compliance demonstrates that cable materials have been formulated to self-extinguish and resist flame propagation under controlled test conditions.

IEC 60811-404

IEC 60811-404 provides testing methodologies for determining the thermal stability and aging characteristics of cable insulation and sheath materials. This standard ensures that medium voltage reeling cables maintain their electrical and mechanical properties throughout their operational lifespan, even when exposed to elevated temperatures and thermal cycling typical of TBM applications.

DIN EN 60228 / IEC 60228 / VDE 0295

Conductor construction requirements are governed by DIN EN 60228, IEC 60228, and VDE 0295 standards. These specifications define conductor class, stranding requirements, resistance values, and dimensional tolerances necessary for reliable electrical performance. Proper conductor design ensures optimal current-carrying capacity while maintaining flexibility required for reeling applications.

DIN VDE 0298-4 and VDE 0298-3

The DIN VDE 0298-4 and VDE 0298-3 standards address current-carrying capacity calculations and installation methods for power cables. These standards provide engineering guidance for determining appropriate cable sizing based on installation conditions, ambient temperatures, and loading requirements specific to TBM applications.

General Certifications

Comprehensive certification programs evaluate fire performance through controlled burning tests, chemical behavior assessment under exposure to oils and industrial chemicals, conductor quality verification including resistance measurements and mechanical properties, electrical parameter validation encompassing insulation resistance and dielectric strength testing, and application-specific performance evaluation under simulated operational conditions.

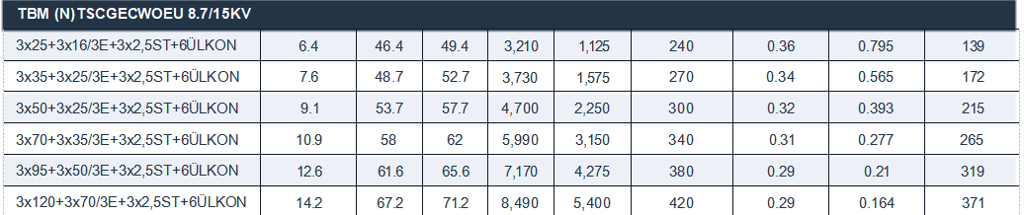

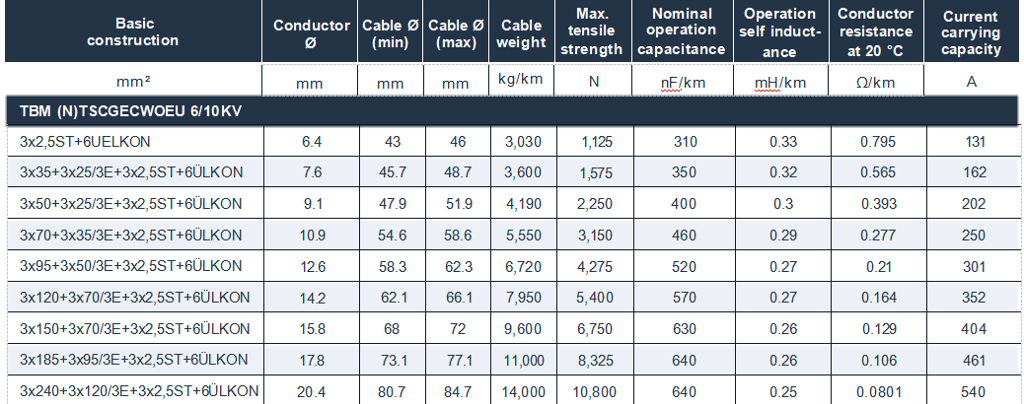

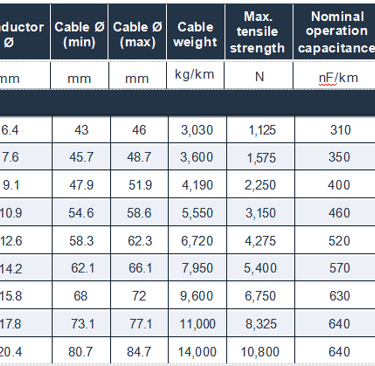

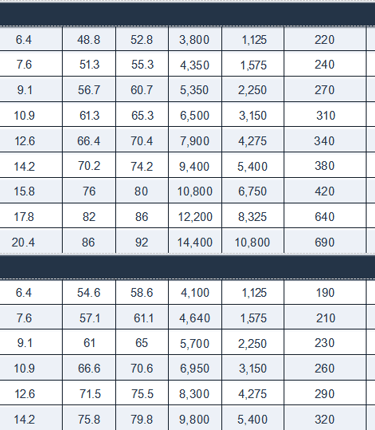

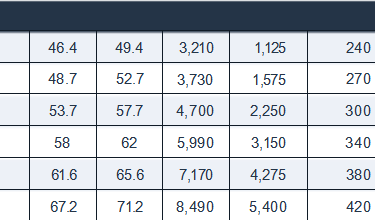

Technical Specifications

Voltage Rating: 10–35 kV (Um up to 42 kV)

Medium voltage reeling cables for tunnel boring machines are designed to operate reliably across voltage ranges from 10 kV to 35 kV, with maximum equipment voltage ratings extending to 42 kV. This voltage range accommodates various TBM power requirements while providing adequate safety margins for underground applications. The voltage classification ensures compatibility with standard medium voltage distribution systems commonly found in mining and construction operations.

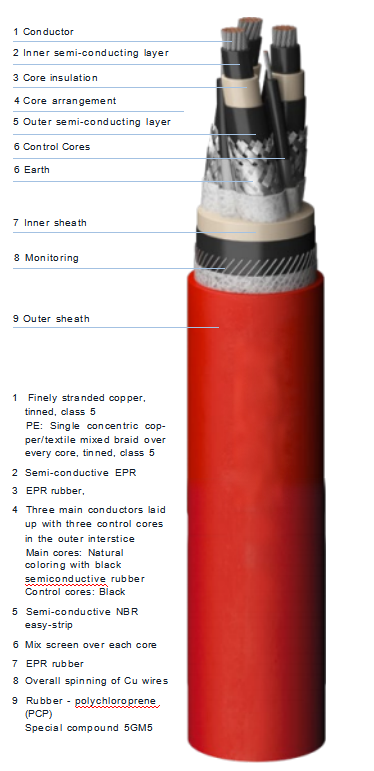

Conductor Construction and Materials

High-quality copper conductors form the foundation of reliable power transmission in TBM applications. Conductor construction typically employs Class 5 or Class 6 stranding configurations as defined by IEC 60228, providing the flexibility necessary for continuous reeling operations while maintaining low electrical resistance. Advanced stranding techniques minimize stress concentrations during bending cycles, extending cable operational life under demanding mechanical conditions.

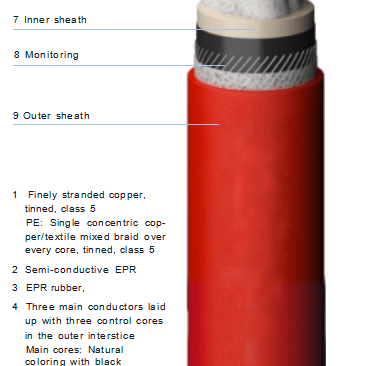

Sheath and Insulation Materials

Insulation systems utilize cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) formulations engineered for medium voltage applications. These materials provide excellent electrical properties, thermal stability, and resistance to environmental factors encountered in underground settings. Outer sheath construction employs specialized polymer compounds designed to resist oil, ozone, and mechanical damage while maintaining flexibility throughout the cable's operational temperature range.

Thermal Parameters

Maximum Conductor Temperature: 90 °C (Standard MV), 0 °C for Specific TBM Variants

Standard medium voltage reeling cables operate with maximum conductor temperatures of 90 °C under normal loading conditions. However, specialized TBM variants may incorporate different thermal ratings based on specific application requirements and environmental conditions. Temperature limitations ensure that insulation materials maintain their electrical and mechanical properties throughout the cable's service life.

Short-Circuit Conductor Temperature: 250 °C

Short-circuit conditions demand exceptional thermal performance from cable materials. The 250 °C short-circuit temperature rating ensures that cables can withstand fault conditions without catastrophic failure, providing crucial safety margins in underground applications where fault clearing may take longer than surface installations.

Ambient Installation Temperatures

Operating temperature ranges vary significantly based on installation configuration. Fixed installation applications accommodate ambient temperatures from –40 °C to 80 °C, reflecting the stable thermal environment of permanent underground installations. Flexible installation applications operate within a more moderate range of –20 °C to 60 °C, accounting for the additional thermal stress imposed by dynamic mechanical loading during reeling operations.

Chemical Parameters

Oil Resistance

Underground mining and tunnel construction environments frequently expose cables to hydraulic oils, lubricants, and various petroleum-based substances. Medium voltage reeling cables incorporate oil-resistant sheath materials that maintain structural integrity and electrical performance when exposed to these chemicals. Testing protocols verify resistance to both mineral oils and synthetic hydraulic fluids commonly used in TBM operations.

Ozone Resistance

Atmospheric ozone exposure, particularly in ventilated underground spaces, can cause premature degradation of standard cable materials. Specialized polymer formulations resist ozone-induced cracking and maintain flexibility throughout extended exposure periods. This resistance proves essential for cables operating in environments with enhanced ventilation systems or electrical equipment that generates ozone.

UV Resistance

While underground applications typically limit ultraviolet exposure, cables may encounter UV radiation during surface handling, storage, or temporary installations. UV-resistant formulations prevent polymer degradation and maintain cable performance during these exposure periods, ensuring reliable operation throughout the installation process.

Mechanical Parameters

Torsional Stress: ±25 °/m

Reeling operations subject cables to complex mechanical stresses, including torsional loading as cables wind and unwind around drum systems. The ±25 °/m torsional stress rating ensures that cables can accommodate the twisting motions inherent in reel-based power supply systems without compromising conductor integrity or insulation performance.

Permanent Tensile Strength

Tensile strength requirements vary based on specific application demands. Reeling applications typically limit permanent tensile stress to 15 N/mm² to prevent conductor elongation and ensure consistent electrical properties throughout operational cycles. TBM applications may accommodate higher tensile loads up to 30 N/mm² to account for the additional mechanical demands of mobile underground equipment operations.

Maximum Travel Speed: 30 m/min

Dynamic cable deployment and retraction systems operate at speeds up to 30 meters per minute, requiring cables designed to handle rapid acceleration and deceleration cycles. This speed capability ensures that TBM operations can maintain productive advance rates without being limited by power supply cable deployment constraints.

Application Scenarios

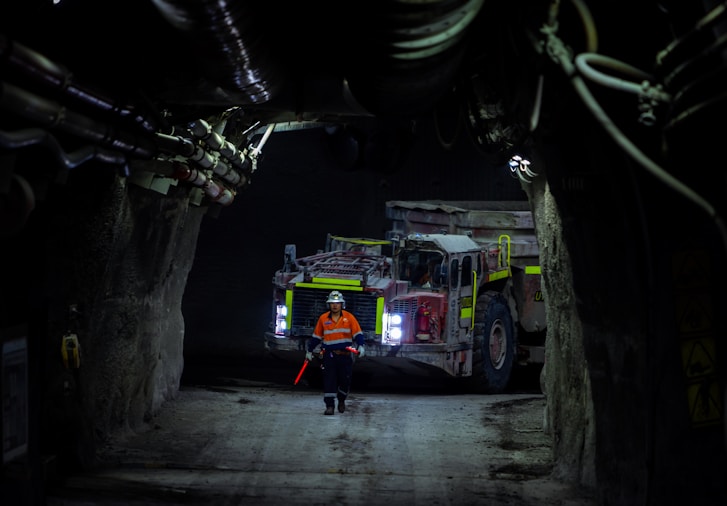

TBM Power Supply in Underground Mines

Underground mining operations present unique challenges for power supply systems, combining the need for mobility with the harsh environmental conditions typical of subterranean workings. Medium voltage reeling cables for TBM applications in underground mines must operate reliably in confined spaces with limited ventilation, potential exposure to groundwater, and the presence of various chemical contaminants. These installations require cables that can extend substantial distances as mining operations advance while maintaining electrical performance under varying load conditions.

The integration of 10–35 kV reeling power supply cable for TBM systems in mining applications enables efficient mineral extraction in deep underground workings. Power transmission at medium voltage levels reduces conductor cross-sectional requirements compared to low-voltage alternatives, minimizing cable weight and reel system complexity. This efficiency becomes particularly important in mining applications where cable lengths may extend several kilometers and weight considerations directly impact equipment mobility and installation complexity.

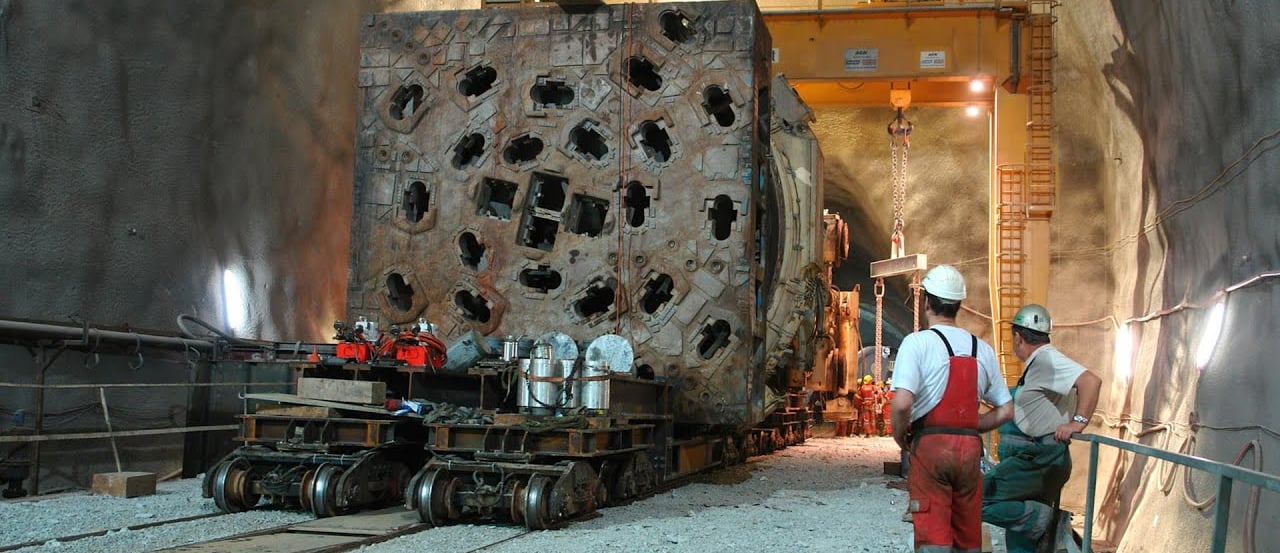

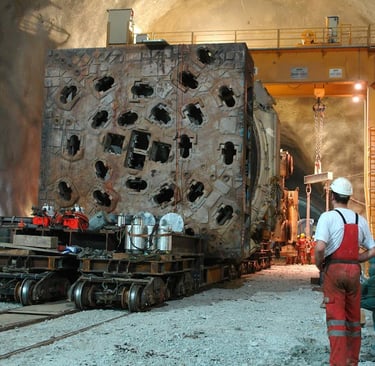

Tunnel Construction Sites

Transportation infrastructure projects, including subway systems, highway tunnels, and utility corridors, rely on TBM power supply cables to enable continuous boring operations. These applications typically involve extended operational periods with cables subjected to repetitive mechanical cycling as machines advance through varying geological conditions. High-performance MV cables for tunnel boring operations must accommodate frequent starts, stops, and directional changes while maintaining consistent power delivery to critical TBM systems.

Construction timeline constraints in tunnel projects make cable reliability essential for project success. Unexpected cable failures can result in significant delays, cost overruns, and potential safety risks in confined underground spaces. The robust design of medium voltage reeling cables specifically engineered for TBM applications helps minimize these risks while enabling predictable project execution.

Mobile vs Fixed Installation Considerations

The choice between mobile and fixed installation configurations depends on project-specific requirements and operational constraints. Mobile installations offer maximum flexibility but impose additional mechanical stress on cable systems due to frequent movement and repositioning. Fixed installations provide greater mechanical stability but may require more complex cable routing and management systems as TBM operations advance.

Mobile TBM installations benefit from the superior flexibility of medium voltage reeling cables designed for dynamic applications. The ability to rapidly deploy and retract power supply cables enables efficient equipment repositioning and reduces setup time between boring segments. Fixed installations may utilize cables with enhanced durability characteristics but reduced flexibility requirements, optimizing performance for stationary power supply applications.

Installation and Maintenance Best Practices

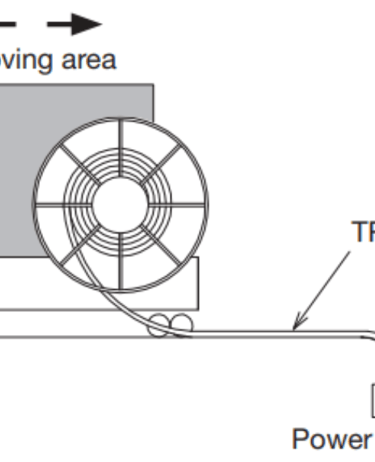

Proper Reel Handling and Storage

Effective cable management begins with proper reel handling and storage procedures. Medium voltage reeling cables require careful attention to minimum bend radius specifications during storage and handling operations. Improper storage can introduce stress concentrations that compromise cable performance and reduce operational life. Temperature-controlled storage environments help maintain cable flexibility and prevent premature aging of polymer materials.

Reel systems must incorporate appropriate tensioning mechanisms to prevent cable slack while avoiding excessive tension that could damage conductor stranding or insulation systems. Regular inspection of reel mechanisms ensures smooth cable deployment and prevents mechanical damage during operational cycles.

Inspection for Mechanical Wear and Chemical Degradation

Routine inspection protocols should address both mechanical wear patterns and chemical degradation indicators. Visual examination of cable sheaths can reveal early signs of chemical attack, mechanical abrasion, or environmental stress. Regular electrical testing, including insulation resistance measurements and conductor continuity verification, helps identify developing problems before they result in operational failures.

Documentation of inspection results enables trend analysis and predictive maintenance strategies that optimize cable replacement timing and minimize unplanned downtime. Systematic record-keeping also supports warranty claims and helps refine maintenance procedures based on operational experience.

Temperature Monitoring and Thermal Management

Continuous temperature monitoring of conductor and ambient conditions helps ensure that medium voltage reeling cables operate within design parameters. Thermal management systems may incorporate forced air cooling, thermal barriers, or operational load adjustments to maintain acceptable operating temperatures during extended high-load periods.

Understanding thermal cycling effects on cable materials enables operators to optimize loading patterns and extend cable service life. Temperature data collection also supports load capacity calculations and helps identify opportunities for improved system efficiency.

Common Cable Problems and Solutions

Q: What are the most common failure modes for medium voltage reeling cables in TBM applications?

A: The most frequent failure modes include conductor fatigue due to repeated flexing cycles, insulation degradation from chemical exposure to oils and hydraulic fluids, and mechanical damage to outer sheaths from abrasion against reel surfaces or underground structures. Thermal stress from overloading and moisture ingress through damaged sheaths also contribute to premature cable failures.

Q: How can operators minimize mechanical stress on cables during TBM operations?

A: Operators should maintain proper cable tensioning throughout reeling operations, ensure adequate bend radius compliance at all cable routing points, implement regular inspection schedules to identify early signs of mechanical wear, and utilize appropriate cable guides and protection systems to prevent abrasion and impact damage during equipment movement.

Q: What environmental factors require special consideration for underground cable installations?

A: Underground environments present unique challenges including elevated moisture levels that can compromise insulation systems, exposure to groundwater containing dissolved chemicals that may attack cable materials, limited ventilation leading to elevated operating temperatures, and potential exposure to gases that could affect polymer stability. Additionally, confined spaces limit access for maintenance and repair operations.

Q: How do medium voltage reeling cables compare to fixed installation alternatives for TBM power supply?

A: Medium voltage reeling cables offer superior flexibility and rapid deployment capabilities essential for mobile TBM operations, while fixed installation systems provide enhanced durability and may offer lower long-term costs for permanent installations. Reeling systems enable equipment mobility but require more sophisticated mechanical systems and may have reduced current-carrying capacity compared to equivalent fixed installations.

Conclusion

Summary of Cable Capabilities

Medium voltage reeling cables engineered for tunnel boring machine applications represent sophisticated power transmission solutions capable of operating reliably in the most demanding underground environments. These cables successfully integrate advanced materials technology with proven electrical design principles to deliver consistent performance throughout extended operational cycles. The combination of mechanical flexibility, chemical resistance, and thermal stability enables TBM operations to proceed efficiently while maintaining safety standards required for underground work environments.

Benefits of Using 10–35 kV Medium Voltage Reeling Cables for TBMs

The implementation of properly specified medium voltage reeling cables provides numerous operational advantages including reduced power transmission losses compared to low-voltage alternatives, enhanced system efficiency through optimized conductor sizing, improved safety through comprehensive insulation systems designed for harsh environments, and operational flexibility enabling rapid equipment deployment and repositioning. These benefits translate directly into improved project economics through reduced downtime, enhanced productivity, and minimized maintenance requirements.

The robust construction of high-performance MV cables for tunnel boring applications ensures reliable operation throughout project lifecycles, reducing risks associated with unexpected equipment failures and maintaining project schedules. Investment in quality cable systems provides long-term value through reduced maintenance costs and improved operational reliability.

Future Developments and Industry Trends

The evolution of tunnel boring technology continues to drive innovations in medium voltage cable design and manufacturing. Emerging trends include the development of enhanced polymer materials offering superior chemical resistance and mechanical durability, implementation of integrated monitoring systems for real-time cable condition assessment, and advancement of installation techniques that minimize environmental impact while improving system reliability.

As TBM technology advances toward increased automation and enhanced operational efficiency, medium voltage reeling cables will continue to evolve to meet these changing demands. Future developments may include smart cable systems with embedded sensors, improved materials offering extended service life, and enhanced installation methods that reduce project costs while improving system performance.

The increasing emphasis on sustainable construction practices is also driving innovations in cable recycling and end-of-life material recovery, ensuring that medium voltage reeling cables contribute to environmentally responsible underground construction projects. These developments position the industry for continued growth while addressing evolving environmental and regulatory requirements in underground construction and mining operations.
